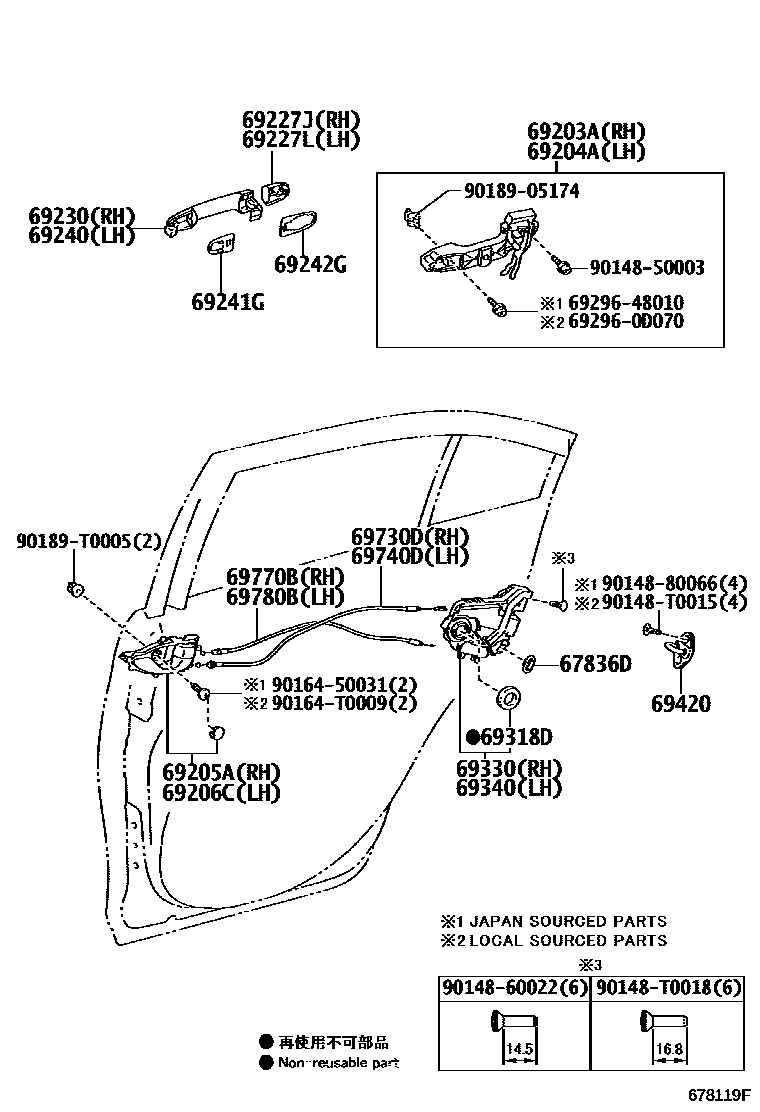

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
E-SPORT PACKAGE(GRADE MARK(S)),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
G-HI PACKAGE, WITH(*CUSA),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
E-SPORT PACKAGE,BLACK,TRIM2#
G-HI PACKAGE, WITH(*CUSA),IVORY,TRIM0#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
E-SPORT PACKAGE(GRADE MARK(S)),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
G-HI PACKAGE, WITH(*CUSA),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
E-SPORT PACKAGE,BLACK,TRIM2#
G-HI PACKAGE, WITH(*CUSA),IVORY,TRIM0#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
LESS COLOR
*CR
LESS COLOR
LESS COLOR
*CR,WIRELESS DOOR LOCK-WITH(SMART ENTRY)
*CR,BRUNEI SPEC
*CR
LESS COLOR
LESS COLOR
LESS COLOR
LESS COLOR
BLACK,ECO PACKAGE
*CR,G-HI PACKAGE(FOR TAIWAN)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
BLACK MATERIAL,ECO PACKAGE
LESS COLOR,G PACKAGE
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
LESS COLOR
*CR
LESS COLOR
LESS COLOR
*CR,WIRELESS DOOR LOCK-WITH(SMART ENTRY)
*CR
*CR
LESS COLOR
LESS COLOR
LESS COLOR
LESS COLOR
BLACK,J-LO PACKAGE(FOR LATIN AMERICA)
*CR,G-HI PACKAGE(FOR TAIWAN)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
BLACK MATERIAL,ECO PACKAGE
LESS COLOR,G PACKAGE
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PLATED,G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
PAINT REQ.
PAINT REQ.
PAINT REQ.
PLATED,WIRELESS DOOR LOCK-WITH(SMART ENTRY)
PLATED,BRUNEI SPEC
PLATED
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PLATED,S-HI PACKAGE(FOR TAIWAN)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
NO PAINT REQ.,ECO PACKAGE
PAINT REQ.,G PACKAGE
NO PAINT REQ.,J-LO PACKAGE(FOR LATIN AMERICA)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PLATED,G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
PAINT REQ.
PAINT REQ.
PAINT REQ.
PLATED,WIRELESS DOOR LOCK-WITH(SMART ENTRY)
PLATED
PLATED
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PLATED,S-HI PACKAGE(FOR TAIWAN)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
NO PAINT REQ.,ECO PACKAGE
PAINT REQ.,G PACKAGE
NO PAINT REQ.,J-LO PACKAGE(FOR LATIN AMERICA)
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
G-HI PACKAGE, WITH(*CUSA)
BRUNEI SPEC
S-HI PACKAGE(FOR TAIWAN)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
J-LO PACKAGE(FOR LATIN AMERICA)
69340LOCK ASSY, REAR DOOR, LH
G-HI PACKAGE, WITH(*CUSA)
BRUNEI SPEC
G-HIGH PACKAGE
S-HI PACKAGE(FOR TAIWAN)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
J-LO PACKAGE(FOR LATIN AMERICA)
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
692960D070SCREW, DOOR INSIDE HANDLE
main69296-0D070
6929648010SCREW, DOOR INSIDE HANDLE
main69296-48010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
90148T0015
main90148-T0015
90148T0018
main90148-T0018
9016450031
main90164-50031
90164T0009
main90164-T0009
9018905174
main90189-05174
90189T0005
main90189-T0005
30 parts on this diagram · 2 diagrams in section
