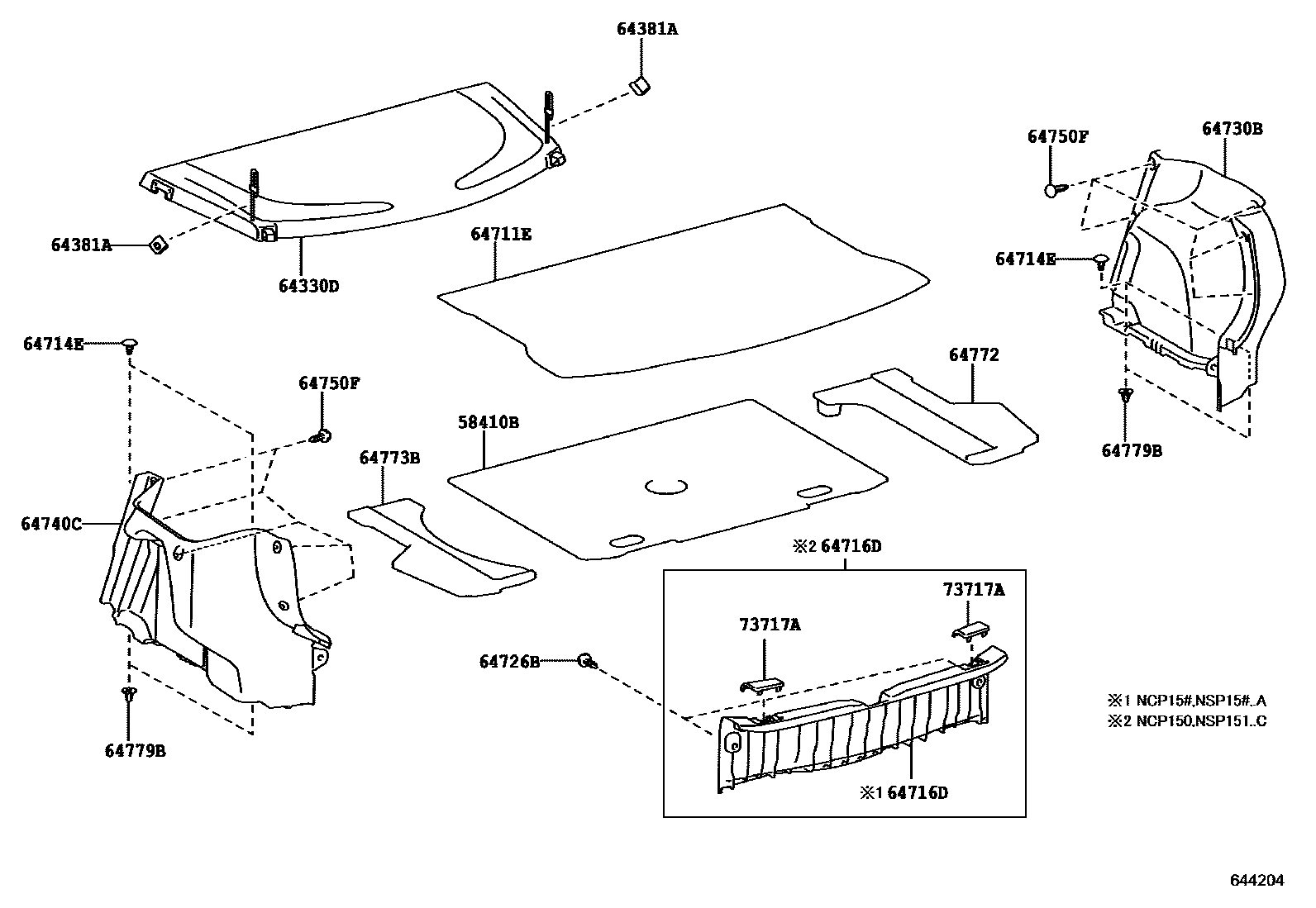

DECK BOARD & DECK TRIM COVER

0001 1 0004 1 0008 1

58410BBOARD ASSY, DECK

main58410-0D060iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main58410-0D070-C0iNCP150..TAIW..(G,R)201409-201802

BLACK,TRIM2#

main58410-0D070-C0iNCP150..TAIW..(G,R)201409-201802

BLACK,TRIM0#,2#

main58410-0D090iNCP150..C201403-201712

main58410-0D130iNSP152..HTWC;NSP151..VN..R;NSP151..CVT..D..(A,B);NSP150,151..LHD..(GCC,GEN)..(G,R)..A201709-202302

main58410-0D140iNSP151..VN..G;NSP151..(G,R,V)..B201710-202302

main58410-0D150-C1iNSP151..V..F201804-202101

BLACK,TRIM0#,2#

main58410-0D150-C1iNSP151..(G,R)..F201804-202101

BLACK,TRIM2#

main58410-0D160iNSP150,151..H201806-201910

main58410-0D170iNSP151..CVT..G..C201802

BRUNEI SPEC

main58410-0D170iNSP151..5F..R..C201802-202108

main58410-0D180iNSP151..(G,V)..C201802

main58410-0D220-C0iNSP152201911-202302

BLACK,TRIM2#

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-0D300-C0iNSP15#..GCC,GEN,TH,VN201310-201708

BLACK,TRIM0#,2#

main64330-0D300-C0iNSP15#..GCC,GEN,TH,VN201310-201708

ECO PACKAGE,BLACK,TRIM0#,2#

main64330-0D300-C0iNSP15#..GCC,GEN,TH,VN201310-201708

J PACKAGE,BLACK,TRIM0#,2#

main64330-0D300-C0iNSP150,151..PH201607-201708

BLACK,TRIM2#

main64330-0D390-C0iNCP150..TAIW..(G,R)201409-201604

BLACK,TRIM0#,2#

sub64330-0D391

main64330-0D390-C0iNCP150..V..A201409-201604

BLACK,TRIM2#

sub64330-0D391

main64330-0D391-C0iNSP151..TAIW..V201605-201802

BLACK,TRIM2#

main64330-0D391-C0iNSP151..TAIW..V201605-201802

BLACK,TRIM0#,2#

main64330-0D410-C0iNSP151..C201403-201712

BLACK,TRIM2#

main64330-0D410-C0iNSP151..C201403-201712

BRUNEI SPEC,BLACK,TRIM2#

main64330-0D410-C0iNCP150..IDN201403-201609

BLACK,TRIM0#,2#

main64330-0D630-C0iNSP151..B201904-202011

BLACK,TRIM2#

main64330-0D690-C0iNSP151..V..F201709-202302

BLACK,TRIM2#

main64330-0D690-C0iNSP151..(G,R)..F201710-202302

BLACK,TRIM0#,2#

main64330-0D690-C0iNSP150,151..LHD..(GCC,GEN)..A201710-202302

BLACK,TRIM0#

main64330-0D720-C0iNSP150,151..H201806-201910

BLACK,TRIM2#

main64330-0D730-C0iNSP151..(G,V)..C201802-202109

BLACK,TRIM2#

main64330-0D730-C0iNSP151..(G,V)..C201802

BRUNEI SPEC,BLACK,TRIM2#

64381AHANGER, PACKAGE TRAY TRIM

main64381-52010iNSP15#..GCC,GEN,PH,TH,VN¥90201310-201708

ECO PACKAGE

main64381-52010iNCP150..TAIW¥90201310-202302

main64381-52010iNSP15#..GCC,GEN,PH,TH,VN¥90201310-201708

J PACKAGE

64711EMAT, LUGGAGE COMPARTMENT FLOOR

main64711-0D190-C0iNSP15#..GCC,GEN,TH,VN201310-201708

BLACK,TRIM0#,2#

main64711-0D190-C0iNSP150,151..PH201607-201708

BLACK,TRIM2#

main64711-0D260-C0iNCP150..V..C201403-201712

BLACK,TRIM2#

main64711-0D260-C0iNCP150..(G,R)..C201403-201609

BLACK,TRIM0#,2#

main64711-0D420-C1iNSP150,151..LHD..(GCC,GEN)..A201710-202302

BLACK,TRIM0#,2#

main64711-0D420-C1iNSP150..5F..PH201709-202207

BLACK,TRIM2#

main64711-0D420-C1iNSP150,151..LHD..(GCC,GEN)..A201710-202302

BLACK,TRIM0#

main64711-0D450-C1iNSP150,151..H201806-201910

BLACK,TRIM2#

main64711-0D460-C1iNSP151..5F..R..C201802-202108

BLACK,TRIM2#

64714ECLIP(FOR DECK TRIM SIDE COVER)

main64726-0D020iNSP150..RHD;NSP150..5F..PH¥170201310-202302

main64726-0D060iNSP151..F201409-202101

main64726-0D080iNSP151..5F..R..C201403-202108

64716DCOVER, DECK TRIM, REAR

main64716-0D120iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main64716-0D130iNSP151..TAIW201409-201802

main64716-0D150iNCP150..C201403-201712

main64716-0D240iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201709-202208

sub64716-0D241

main64716-0D241iNSP150..LHD..(GCC,GEN);NSP151,152..GCC,GEN,TH,VN202208-202302

main64716-0D250iNSP151..F201804-202101

main64716-0D260iNSP150,151..H201806-201910

main64716-0D270iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

64726BCLIP, DECK REAR TRIM

main90467-08186-C0iNCP150..TAIW201310-201610

BLACK

sub90467-08186¥120

main90467-08186-C3iNSP152..HTWC;NSP151..VN..R;NSP150,151..B,C,H;NSP150,151..GCC..G201610-202104

BLACK

sub90467-08186¥120

main90467-08186-C3iNSP150..RHD;NSP150..5F..PH202102-202302

BLACK,(J)

sub90467-08186¥120

main90467-T0045-C0iNSP151..VN202102-202302

BLACK,TRIM0#,(L)

main90467-T0045-C0iNSP151..VN202102-202302

BLACK,TRIM2#,(L)

main90467-T0045-C0iNSP151..VN202102-202302

BLACK,TRIM0#,2#,(L)

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-0D350-C0iNSP15#..GCC,GEN,TH,VN201310-201708

BLACK,TRIM0#,2#

main64730-0D350-C0iNSP150,151..PH201607-201708

BLACK,TRIM2#

main64730-0D370-C0iNSP151..TAIW..V201409-201802

BLACK,TRIM2#

main64730-0D370-C0iNSP151..TAIW..V201409-201802

BLACK,TRIM0#,2#

main64730-0D390-C0iNCP150..V..C201403-201712

BLACK,TRIM2#

main64730-0D390-C0iNCP150..(G,R)..C201403-201609

BLACK,TRIM0#,2#

main64730-0D500-C1iNSP151..VN201710-202302

BLACK,TRIM0#,2#

main64730-0D500-C1iNSP151..PH,SA;NSP150..CVT..PH201709-202302

BLACK,TRIM2#

main64730-0D500-C1iNSP151..VN201710-202302

BLACK,TRIM0#

main64730-0D510-C1iNSP151..(G,R)..F201804-202101

BLACK,TRIM0#,2#

main64730-0D510-C1iNSP151..V..F201804-202101

BLACK,TRIM2#

main64730-0D520-C1iNSP150,151..H201806-201910

BLACK,TRIM2#

main64730-0D530-C1iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

BLACK,TRIM2#

main64730-0D550-C1iNSP151..B201904-202011

BLACK,TRIM2#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-0D360-C0iNSP150,151..PH201607-201708

BLACK,TRIM2#

main64740-0D360-C0iNCP15#..GCC,GEN,PH,VN201310-201708

BLACK,TRIM0#,2#

main64740-0D380-C0iNCP150..V..A201409-201802

BLACK,TRIM2#

main64740-0D380-C0iNCP150..TAIW..(G,R)201409-201802

BLACK,TRIM0#,2#

main64740-0D400-C0iNCP150..(G,R)..C201403-201609

BLACK,TRIM0#,2#

main64740-0D400-C0iNCP150..(G,R)..C201403-201712

BLACK,TRIM2#

main64740-0D490-C1iNSP150,151..LHD..(GCC,GEN)..A201710-202302

BLACK,TRIM0#

main64740-0D490-C1iNSP150..5F..PH201709-202302

BLACK,TRIM2#

main64740-0D490-C1iNSP150..RHD201710-202302

BLACK,TRIM0#,2#

main64740-0D500-C1iNSP151..V..F201804-202101

BLACK,TRIM0#,2#

main64740-0D500-C1iNSP151..V..F201804-202101

BLACK,TRIM2#

main64740-0D510-C1iNSP150,151..H201806-201910

BLACK,TRIM2#

main64740-0D520-C1iNSP151..5F..R..C201802-202108

BLACK,TRIM2#

main64740-0D540-C1iNSP151..B201904-202011

BLACK,TRIM2#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-08186-C0iNSP15#..GCC,GEN,TH,VN201310-201610

BLACK,TRIM0#,2#

sub90467-08186¥120

main90467-08186-C0iNCP150..V..C201403-201610

BLACK,TRIM2#

sub90467-08186¥120

main90467-08186-C0iNSP151..TAIW201605-201610

BLACK

sub90467-08186¥120

main90467-08186-C3iNSP150,151..LHD..(GCC,GEN)202102-202302

BLACK,TRIM2#,(J)

sub90467-08186¥120

main90467-08186-C3iNSP15#..PH,TH201610-202104

BLACK,TRIM2#

sub90467-08186¥120

main90467-08186-C3iNSP15#..PH,TH201610-202102

BLACK,TRIM0#,2#

sub90467-08186¥120

main90467-08186-C3iNSP151..TAIW201610-201802

BLACK

sub90467-08186¥120

main90467-08186-C3iNSP151..VN201710-202102

BLACK,TRIM0#

sub90467-08186¥120

main90467-08186-C3iNSP150..RHD202102-202302

BLACK,TRIM0#,2#,(J)

sub90467-08186¥120

main90467-08186-C3iNSP151..VN202102-202302

BLACK,TRIM0#,(J)

sub90467-08186¥120

main90467-T0045-C0iNSP152202102-202302

BLACK,TRIM0#,(L)

main90467-T0045-C0iNSP150..RHD202102-202302

BLACK,TRIM2#,(L)

main90467-T0045-C0iNSP150..5F..PH202102-202302

BLACK,TRIM0#,2#,(L)

64772PAD, SPARE WHEEL COVER

main64772-0D070iNSP15#..GCC,GEN,PH,TH,VN201310-201708

main64772-0D080iNSP151..F201409-202101

main64772-0D090iNCP150..C201403-201712

main64772-0D160iNSP151..PH,SA;NSP150..CVT..PH201709-202302

main64772-0D190iNSP150,151..H201806-201910

main64772-0D200iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

64773BPAD, SPARE WHEEL COVER, NO.2

main64773-0D030iNCP15#..GCC,GEN,PH,VN201310-201708

main64773-0D040iNCP150..C201403-201712

main64773-0D100iNSP150..RHD;NSP150..5F..PH201709-202302

main64773-0D130iNSP150,151..H201806-201910

main64773-0D140iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

64779TRAY, SPARE WHEEL COVER

main64779-0D110iNSP152201709-202302

64779BSTOPPER, SPARE WHEEL COVER

main64779-0D010iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main64779-0D050iNSP150..RHD;NSP150..5F..PH201310-202207

main64779-0D090iNSP151..TAIW201409-202101

main64779-BZ030iNSP150..LHD..(GCC,GEN);NSP151,152..GCC,GEN,TH,VN202208-202302

73717ACOVER, CHILD RESTRAINT SEAT TETHER ANCHOR

main73717-0D010iNSP150,151..GCC,GEN201403-201708

RH

sub73717-0D030

main73717-0D020iNSP150,151..GCC,GEN201403-201708

LH

sub73717-0D040

main73717-0D030iNCP15#..PH,VN201310-201708

RH

main73717-0D040iNCP15#..PH,VN201310-201708

LH

main73717-0D050iNCP150..C201403-201712

RH

main73717-0D060iNSP151..C201403-201712

LH

main73717-0D070iNSP150..RHD;NSP150..5F..PH201709-202208

RH

main73717-0D071iNSP150..LHD..(GCC,GEN);NSP151,152..GCC,GEN,TH,VN202208-202302

RH

main73717-0D080iNSP151..PH,SA;NSP150..CVT..PH201709-202208

LH

main73717-0D081iNSP150..LHD..(GCC,GEN);NSP151,152..GCC,GEN,TH,VN202208-202302

LH

main73717-0D110iNSP150,151..H201806-201910

RH

main73717-0D120iNSP150,151..H201806-201910

LH

main73717-0D130iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

RH

main73717-0D140iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

LH

15 parts on this diagram · 3 diagrams in section
