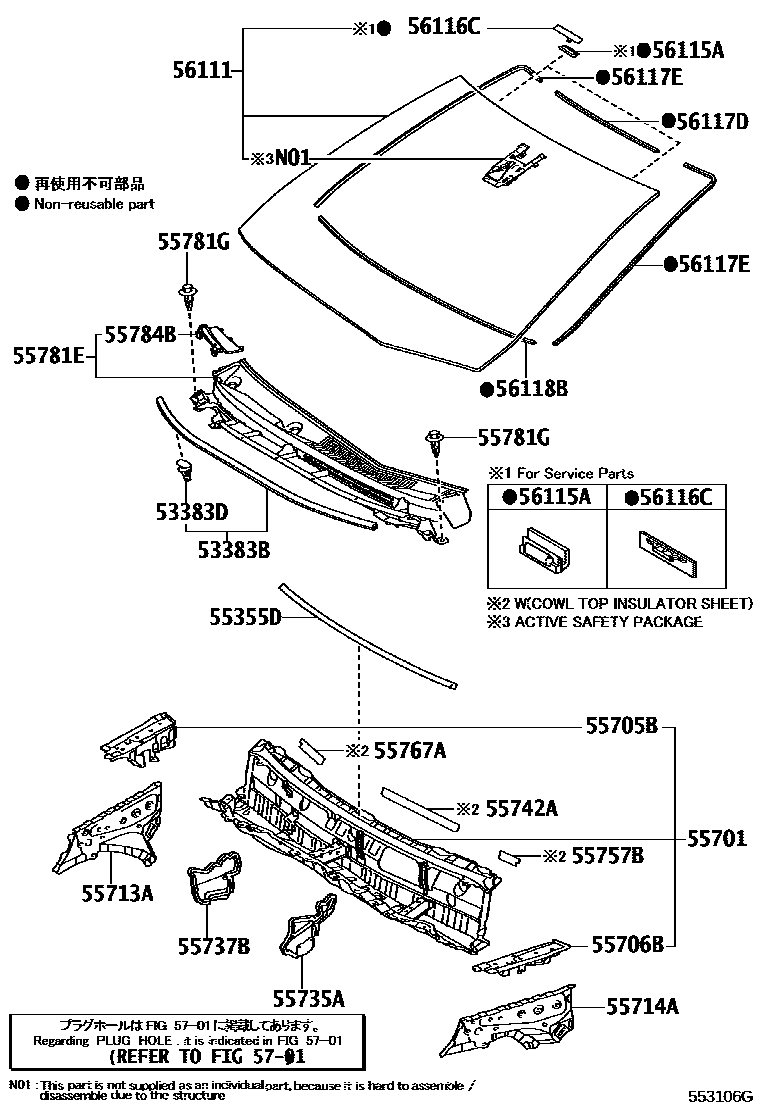

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1 0003 1

53383BSEAL, HOOD TO COWL TOP

main53383-0D150iNSP150..RHD;NSP150..5F..PH201310-202302

main53383-0D170iNCP150..TAIW201409-202101

main53383-0D180iNSP151..B201904-202011

main53383-0D200iNCP150..C201403-202108

main53383-0D230iNSP150,151..H201806-201910

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-0D070iNCP150..TAIW201310-202302

main67867-0D130iNCP150..C201403-202108

55355DCUSHION, INSTRUMENT PANEL, NO.1

main55355-0D160iNCP15#..GCC,GEN,PH,VN201310-202207

main55355-0D160iNSP151..GEN..A201710-202302

MEXICO SPEC

main55355-0D240iNSP151..TAIW201409-201802

main55355-0D260iNCP150..C201403-201712

main55355-0D390iNSP150,151..H201806-201910

main55355-0D480iNSP150..RHD;NSP150..5F..PH201709-202302

main55355-0D490iNSP151..5F..R..C201802-202108

main55355-0D500iNSP151..F201804-202101

55701PANEL SUB-ASSY, COWL

main55700-0D270iNSP151..C201403-201712

sub55700-0D271

main55700-0D271iNSP151..5F..R..C201802-202108

main55700-0D290iNSP151..TAIW201409-201701

sub55700-0D291

main55700-0D291iNSP151..TAIW201702-202101

main55700-0D310iNCP15#..LHD..(GEN,PH,VN)201403-201701

sub55700-0D311

main55700-0D311iNSP150,151..LHD..(GEN,PH,VN)201702-202302

main55700-0D320iNSP150,151..GCC201403-201701

sub55700-0D321

main55700-0D321iNSP151..GEN..A201702-202302

MEXICO SPEC

main55700-0D330iNCP151..RHD201310-201701

sub55700-0D331

main55700-0D331iNSP152201702-202302

main55700-0D391iNSP151..SA201710-202207

main55700-0D410iNSP150,151..H201806-201910

main55700-0D450iNSP151..B201904-202011

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0D120iNCP15#..GCC,GEN,PH,VN201310-202302

main55705-0D140iNSP151..C201403-202108

main55705-0D150iNCP150..TAIW201409-202101

main55705-0D180iNSP150,151..H201806-201910

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0D120iNSP150..RHD;NSP150..5F..PH201310-202302

main55706-0D140iNCP150..C201403-202108

main55706-0D150iNSP151..F201409-202101

main55706-0D180iNSP150,151..H201806-201910

55713APANEL, COWL TOP SIDE, RH

main55713-0D110iNSP15#..GCC,GEN,PH,TH,VN201310-201701

sub55713-0D190

main55713-0D130iNSP151..C201403-201712

main55713-0D140iNSP151..TAIW201409-201802

main55713-0D170iNSP150,151..H201806-201910

main55713-0D190iNSP151..PH,SA;NSP150..CVT..PH201702-202302

main55713-0D200iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

main55713-0D210iNSP151..F201804-202101

main55713-0D250iNSP151..B201904-202011

55714APANEL, COWL TOP SIDE, LH

main55714-0D110iNSP15#..GCC,GEN,PH,TH,VN201310-201701

sub55714-0D190

main55714-0D130iNCP150..C201403-201712

main55714-0D140iNCP150..TAIW201409-201802

main55714-0D170iNSP150,151..H201806-201910

main55714-0D190iNSP15#..GCC,GEN,PH,TH,VN201702-202302

main55714-0D200iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

main55714-0D210iNSP151..F201804-202101

main55714-0D250iNSP151..B201904-202011

55735APLATE, WATER GUARD, LH

main55734-0D060iNCP151..RHD201310-202302

main55734-0D100iNCP150..C201403-202108

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-0D170iNSP151..SA201310-202302

main55737-0D180iNSP150,151..LHD..(GCC,GEN,PH,VN)201403-202302

main55737-0D200iNSP151..B201904-202011

main55737-0D210iNSP151..TAIW201409-202101

main55737-0D220iNSP151..5F..R..C201403-202108

main55737-0D290iNSP150,151..H201806-201910

55742ASHEET, COWL TOP INSULATOR

main55767-0D020iNSP150,151..CVT..(GCC,GEN,PH,VN)201607-201708

main55767-0D050iNSP151..TAIW201605-201802

main55767-0D080iNSP151..CVT..C201610-201712

55757BSHEET COWL TOP INSULATOR

main55767-0D030iNSP150,151..CVT..(GCC,GEN,PH,VN)201607-201708

main55767-0D060iNSP151..TAIW201605-201802

main55767-0D090iNSP151..CVT..C201610-201712

55767ASHEET, COWL TOP INSULATOR, NO.5

main55767-0D010iNSP150,151..CVT..(GCC,GEN,PH,VN)201607-201708

main55767-0D040iNSP151..TAIW201605-201802

main55767-0D070iNSP151..CVT..C201610-201712

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0D270iNCP151..RHD201310-201708

main55708-0D272iNSP151..SA201709-202302

main55708-0D280iNCP15#..LHD..(GCC,GEN,PH,VN)201403-201708

main55708-0D282iNSP150,151..LHD..(GCC,GEN,VN)..A201710-202302

main55708-0D310iNSP151..TAIW201409-201802

main55708-0D312iNSP151..F201804-202101

main55708-0D322iNSP151..B201904-202011

main55708-0D350iNSP151..C201403-201712

main55708-0D352iNSP151..5F..R..C201802-202108

main55708-0D430iNSP150,151..H201806-201910

55781GCLIP, COWL TOP VENTILATOR LOUVER

main52161-0K040iNCP15#..GCC,GEN,PH,VN¥120201310-202302

main52161-0K040iNSP150,151..H¥120201806-201910

(L)

main52161-0K060iNSP151..TAIW201409-202101

main52161-16010iNSP150,151..H¥120201806-201910

(J)

sub52161-0K040¥120

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-0D070iNSP151..SA201310-202302

main55784-0D080iNSP150..5F..PH201403-202302

main55784-0D100iNCP150..TAIW201409-202101

main55784-0D110iNSP151..B201904-202011

main55784-0D140iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

main55784-0D170iNSP150,151..H201806-201910

56111GLASS, WINDSHIELD

main56101-0D320iNCP150..TAIW..R201409-201802

main56101-0D330iNSP151..TAIW..(G,V)201409-202101

main56101-0D360iNCP15#..GCC..R201403-201606

main56101-0D370iNCP15#..GCC..G201403-201606

main56101-0D380iNSP150,151..LHD..(GEN,PH,VN)..(D,R)201403-202302

main56101-0D390iNSP150..5F..PH201403-202302

main56101-0D400iNCP151..RHD..R201403-201707

sub56101-0D401

main56101-0D410iNSP150..5F..G201403-201707

sub56101-0D411

main56101-0D411iNSP152201709-202302

main56101-0D420iNSP151..D..B201904-202011

main56101-0D430iNSP151..R..B201904-202011

main56101-0D460iNCP150..R..C201403-201712

main56101-0D470iNSP151..5F..R..C201403-202108

main56101-0D540iNSP152201310-201708

sub56101-0D541

main56101-0D700iNSP151..SA..D201710-202207

sub56101-0D820

main56101-0D710iNSP151..(G,V)..B201904-202011

main56101-0D740iNSP150,151..D..H201806-201910

sub56101-0D741

main56101-0D760iNSP151..R..H201806-201910

sub56101-0D761

main56101-0D770iNSP150..R..H;NSP151..G..H201806-201910

sub56101-0D771

main56101-0D780iNSP151..V..H201806-201910

sub56101-0D781

main56101-0D820iNSP151..SA..(R,V)201710-202207

main56101-0D850iNSP150,151..GCC..R201607-201708

main56101-0D860iNSP150,151..GCC201607-202302

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNSP151..PH,SA;NSP150..CVT..PH¥130201310-202302

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNSP150..RHD;NSP150,151..5F..(IDN,PH)..R¥120201310-202302

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-0D160iNSP151..PH,SA;NSP150..CVT..PH201310-202302

L=549

main56117-0D160iNSP15#..GCC,GEN,PH,TH,VN201310-201708

L=549,G PACKAGE

main56117-0D160iNSP152201709-202302

L=549,ECO PACKAGE

main56117-0D300iNSP151..TAIW201409-202101

*D,L=549

main56117-0D310iNCP150..C201403-202108

L=549

main56117-50130iNSP150,151..H¥1,610201806-201910

L=549

56117EDAM, WINDOW GLASS ADHESIVE

main56117-0D170iNSP152201310-202302

L=915

main56117-0D170iNSP152201709-202302

L=915,ECO PACKAGE

main56117-0D170iNSP15#..GCC,GEN,PH,TH,VN201310-201708

L=915,G PACKAGE

main56117-0D300iNSP151..TAIW201409-202101

*D,L=915

main56117-0D320iNSP151..(G,V)..C;NSP151..CVT..R..C201403-202108

L=915

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56117-0D180iNSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,MA,TH,VN)..(A,B)201709-202302

L=1182,ECO PACKAGE

main56117-0D180iNSP151..PH,SA;NSP150..CVT..PH201310-202302

L=1182

main56117-0D180iNSP15#..GCC,GEN,PH,TH,VN201310-201708

L=1182,G PACKAGE

main56117-0D300iNCP150..TAIW201409-202101

L=1182

main56117-0D330iNSP151..5F..R..C201403-202108

L=1182

5701

23 parts on this diagram · 3 diagrams in section
