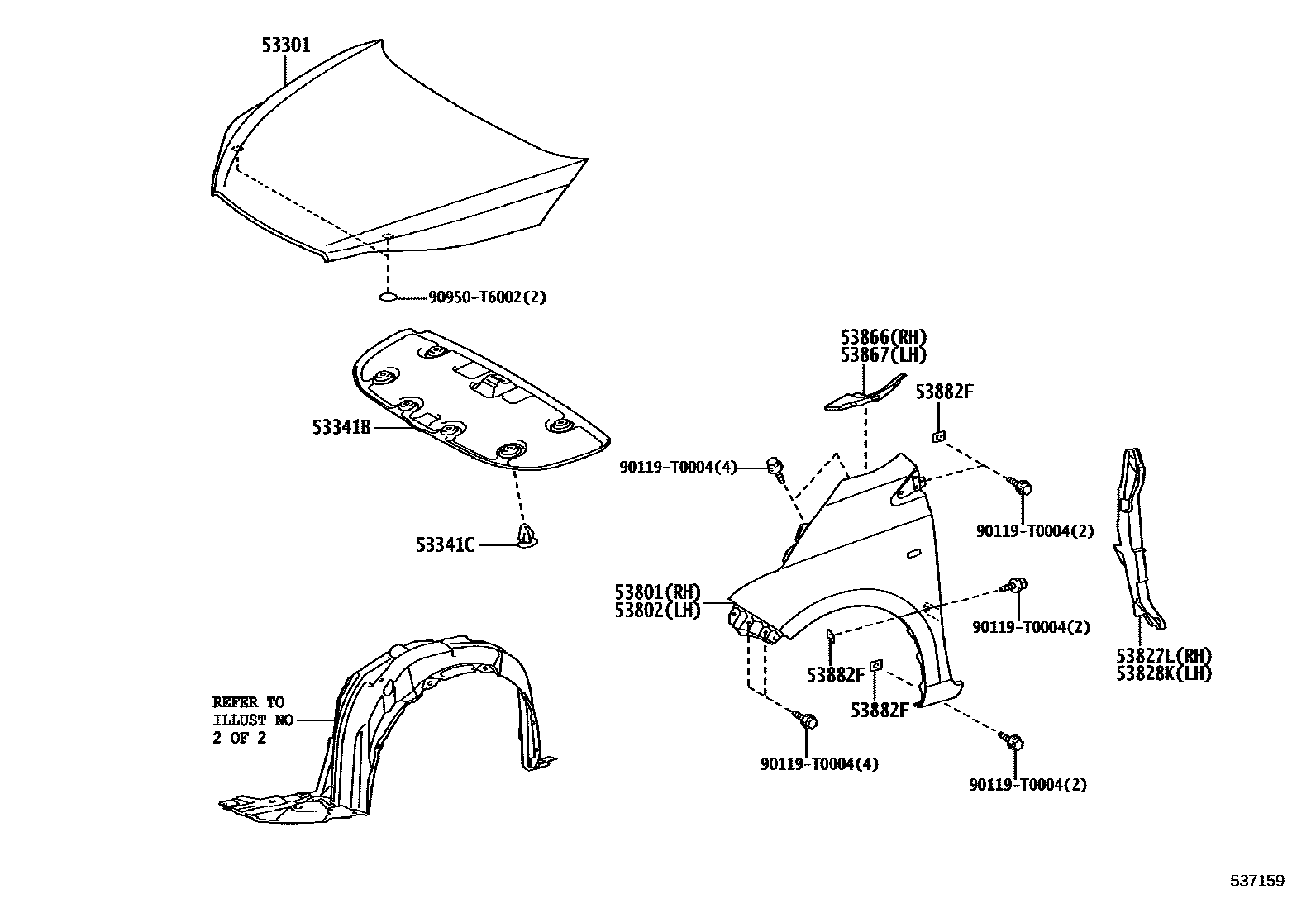

HOOD & FRONT FENDER
53341BINSULATOR, HOOD
J PACKAGE
ECO PACKAGE
ECO PACKAGE
J PACKAGE
53341CCLIP(FOR HOOD INSULATOR)
(J)
ECO PACKAGE,(J)
J PACKAGE,(J)
main90467-T0014iNSP152..HTWCB;NSP150,151..LHD..(GCC,GEN)..R;NSP150,151..CVT..(GEN,VN)..G..A201310-202302
(L)
53801FENDER SUB-ASSY, FRONT RH
LATIN AMERICA SPEC&E-SPORT PACKAGE(FOR ARGENTINA)&ARGENTINA SPEC
MEXICO SPEC&E-SPORT PACKAGE(FOR MEXICO)
LATIN AMERICA SPEC&E-SPORT PACKAGE(FOR LATIN AMERICA)
E-SPORT PACKAGE
G PACKAGE
sub53801-0D010
G-HI PACKAGE(FOR TAIWAN)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(SIDE TURN LAMP)
J PACKAGE
ECO PACKAGE
E-SPORT PACKAGE(GRADE MARK(S))
E-HI PACKAGE(WHEEL CAP(FOR 15INCH))
BRUNEI SPEC
53802FENDER SUB-ASSY, FRONT LH
LATIN AMERICA SPEC&E-SPORT PACKAGE(FOR ARGENTINA)&ARGENTINA SPEC
LATIN AMERICA SPEC&E-SPORT PACKAGE(FOR LATIN AMERICA)
E-SPORT PACKAGE
G PACKAGE
MEXICO SPEC&E-SPORT PACKAGE(FOR MEXICO)
sub53802-0D010
G-HI PACKAGE(FOR TAIWAN)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W(SIDE TURN LAMP)
J PACKAGE
ECO PACKAGE
E-HI PACKAGE(WHEEL CAP(FOR 15INCH))
E-SPORT PACKAGE(GRADE MARK(S))
BRUNEI SPEC
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
sub53827-0D211
sub53827-0D221
sub53827-0D231
sub53827-0D241
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
sub53828-0D211
sub53828-0D221
sub53828-0D231
sub53828-0D241
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53882FSEAL, FRONT FENDER
90119T0004
main90119-T0004
90950T6002
main90950-T6002
12 parts on this diagram · 4 diagrams in section
