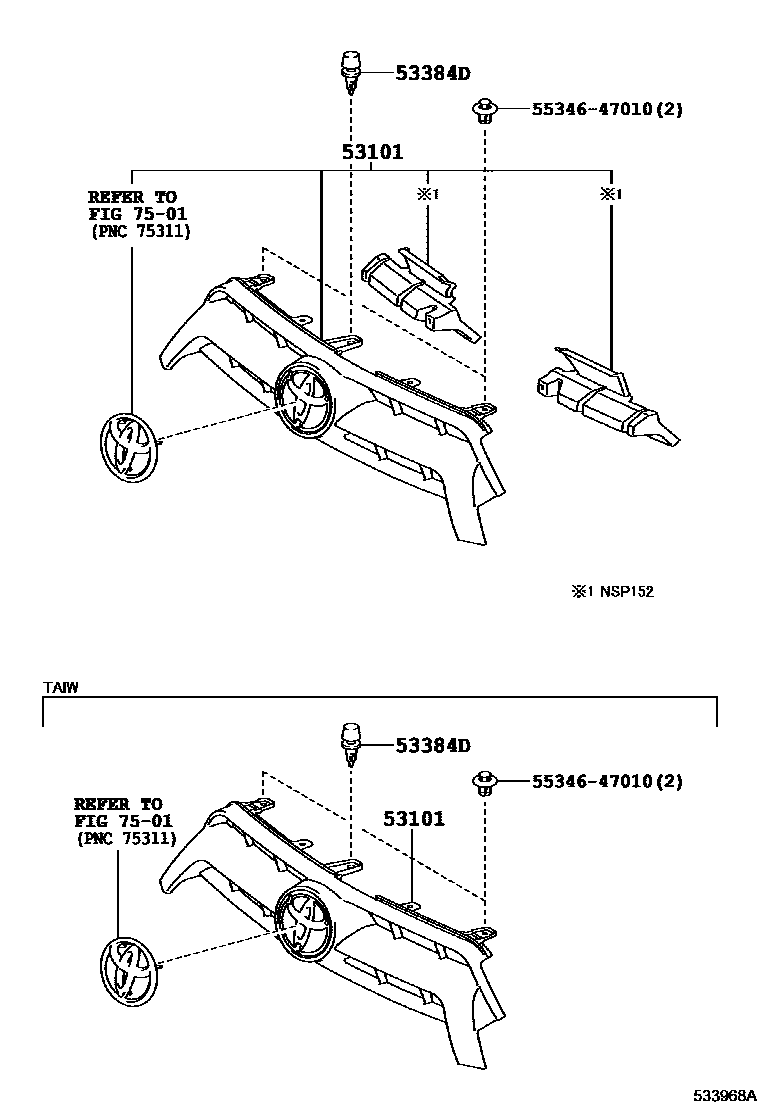

RADIATOR GRILLE

0001 1 0006 1EXCEPT MLM PACKAGE 0012 1 0013 1MLM PACKAGE

53101GRILLE SUB-ASSY, RADIATOR

main53101-0D450iNCP15#,NSP150,151..(GCC,GEN,PH,VN)..(D,R)201403-201708

main53101-0D500iNCP15#,NSP150,151..(GCC,GEN,PH,VN)..G201403-201708

main53101-0D540iNSP152201310-201708

NO PAINT REQ.

main53101-0D600iNCP150,NSP151..IDN..G201403-201712

main53101-0D610iNCP150..MA;NCP150,NSP151..(R,V)..C201403-201712

main53101-0D905iNSP151..F201804-202101

main53111-0D640iNCP150,NSP151..TAIW..(G,R)201409-201802

main53111-0D640iNCP150..V..A201409-201510

NO PAINT REQ.

main53111-0DB00iNCP150,NSP151..TAIW..V201510-201802

53384DCUSHION, HOOD, CENTER

main53119-12150iNSP152..HTWCB;NSP150,151..LHD..(GCC,GEN)..R;NSP150,151..CVT..(GEN,VN)..(D,G)..A201709-202302

main53384-22070iNCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN201310-201802

7501

5534647010GARNISH, GLOVE COMPARTMENT SIDE, RH

main55346-47010

4 parts on this diagram · 4 diagrams in section
