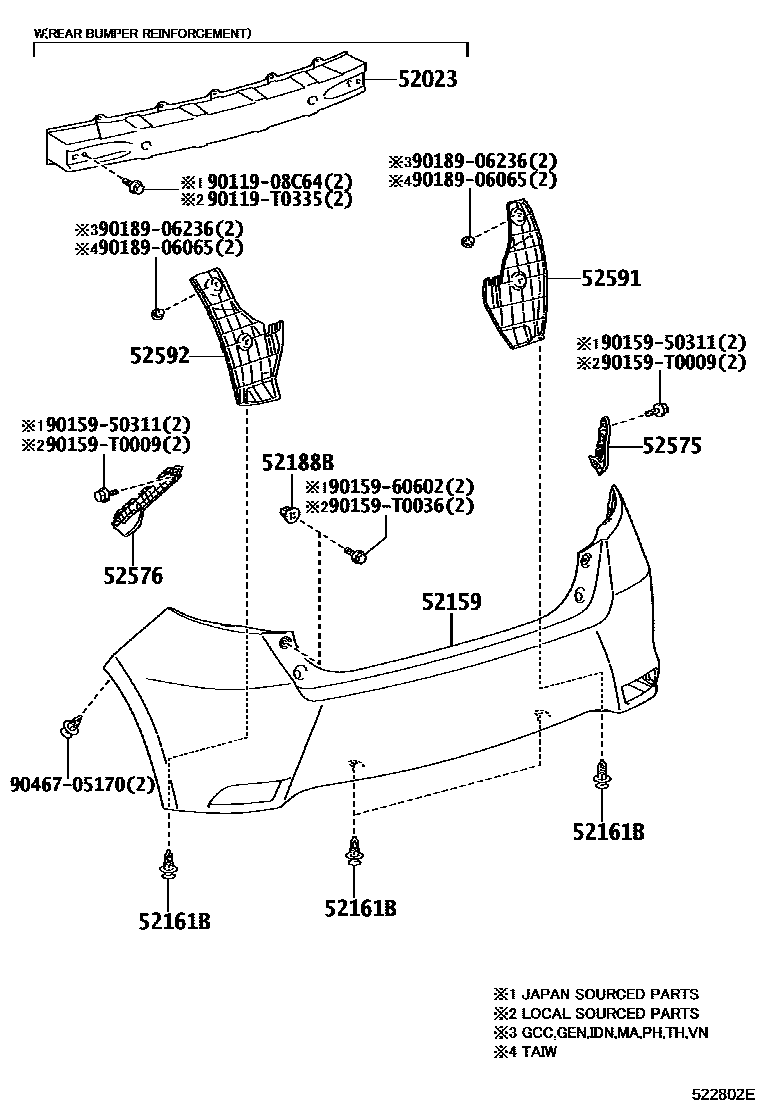

REAR BUMPER & BUMPER STAY

0001 1 0005 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-0D090iNCP15#..GCC,GEN,PH,VN201403-202302

main52023-0D100iNSP151..C201403-202108

main52023-0D110iNCP150..TAIW201409-202101

main52023-0D120iNSP150,151..H201806-201910

52159COVER, REAR BUMPER

main52159-0U902iNCP150,NSP151..TAIW201409-201802

main52159-0U907iNCP15#,NSP15#..GCC,GEN,PH,TH,VN201310-201708

main52159-0U910iNCP150,NSP151..C201403-201712

main52159-0U922iNSP151..R..F201804-202009

sub52159-0U962

sub75895-0D350

main52159-0U923iNSP150,151..H201806-201910

PAINT REQ.

main52159-0U926iNSP152..HTWCB;NSP150,151..(GCC,GEN,PH,SA)..A201710-202002

sub52159-0U950

sub75895-0D310

main52159-0U927iNSP151..VN;NSP152..HTWC201709-202002

sub52159-0U951

sub75895-0D310

main52159-0U928iNSP151..C201802-202009

sub52159-0U952

sub75895-0D330

main52159-0U942iNSP151..B201904-202005

sub52159-0U969

sub75895-53010¥790

main52159-0U950iNSP151..PH,SA;NSP150..CVT..PH202002-202302

PAINT REQ.

main52159-0U951iNSP151..VN202002-202009

PAINT REQ.

main52159-0U952iNSP151..(G,V)..C202009-202110

PAINT REQ.

main52159-0U953iNSP151..CVT..R..C202110

PAINT REQ.

main52159-0U958iNSP151..VN202009-202302

PAINT REQ.

main52159-0U962iNSP151..R..F202009-202101

PAINT REQ.

main52159-0U969iNSP151..B202005-202011

PAINT REQ.

main52159-0U970iNSP151..(G,V)..F202008-202101

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-0K040iNCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TH,VN¥120201310-202302

main52161-0K040iNSP150,151..H¥120201806-201910

(L)

main52161-0K060iNSP151..F201409-202101

main52161-16010iNSP150,151..H¥120201806-201910

(J)

sub52161-0K040¥120

52188BSPACER, REAR BUMPER MOUNTING

main52188-0D010iNSP151..PH,SA;NSP150..CVT..PH202102-202302

(L)

main52188-33040iNSP150..RHD;NSP150,151..5F..(IDN,PH)..R¥80202102-202302

(J)

main52188-33040iNCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN¥80201310-202102

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0D180iNCP15#,NSP15#..GCC,GEN,PH,TH,VN201310-201708

main52575-0D210iNCP150,NSP151..TAIW201409-201802

main52575-0D230iNCP150,NSP151..C201403-201712

main52575-0D400iNSP150..RHD;NSP150..5F..PH201709-202302

main52575-0D410iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

main52575-0D420iNSP151..F201804-202101

main52575-0D430iNSP150,151..H201806-201910

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0D180iNCP15#,NSP15#..GCC,GEN,PH,TH,VN201310-201708

main52576-0D210iNCP150,NSP151..TAIW201409-201802

main52576-0D230iNCP150,NSP151..C201403-201712

main52576-0D390iNSP151..PH,SA;NSP150..CVT..PH201709-202302

main52576-0D400iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

main52576-0D410iNSP151..F201804-202101

main52576-0D420iNSP150,151..H201806-201910

52591SEAL, REAR BUMPER SIDE, RH

main52591-0D210iNCP15#,NSP15#..GCC,GEN,PH,TH,VN201310-201708

main52591-0D230iNCP150,NSP151..TAIW201409-201802

main52591-0D260iNCP150,NSP151..C201403-201712

main52591-0D460iNSP151..PH,SA;NSP150..CVT..PH201709-202302

main52591-0D470iNSP151..(G,V)..C;NSP151..CVT..R..C201802-202108

main52591-0D480iNSP151..F201804-202101

main52591-0D490iNSP150,151..H201806-201910

52592SEAL, REAR BUMPER SIDE, LH

main52592-0D210iNCP15#,NSP15#..GCC,GEN,PH,TH,VN201310-201708

main52592-0D230iNCP150,NSP151..TAIW201409-201802

main52592-0D260iNCP150,NSP151..C201403-201712

main52592-0D460iNSP150..RHD;NSP150..5F..PH201709-202302

main52592-0D470iNSP151..5F..R..C201802-202108

main52592-0D480iNSP151..F201804-202101

main52592-0D490iNSP150,151..H201806-201910

9011908C64

main90119-08C64¥90

90119T0335

main90119-T0335

9015950311

main90159-50311¥70

9015960602

main90159-60602¥60

90159T0009

main90159-T0009

90159T0036

main90159-T0036

9018906065

main90189-06065¥80

9018906236

main90189-06236¥100

9046705170

main90467-05170¥80

17 parts on this diagram · 2 diagrams in section
