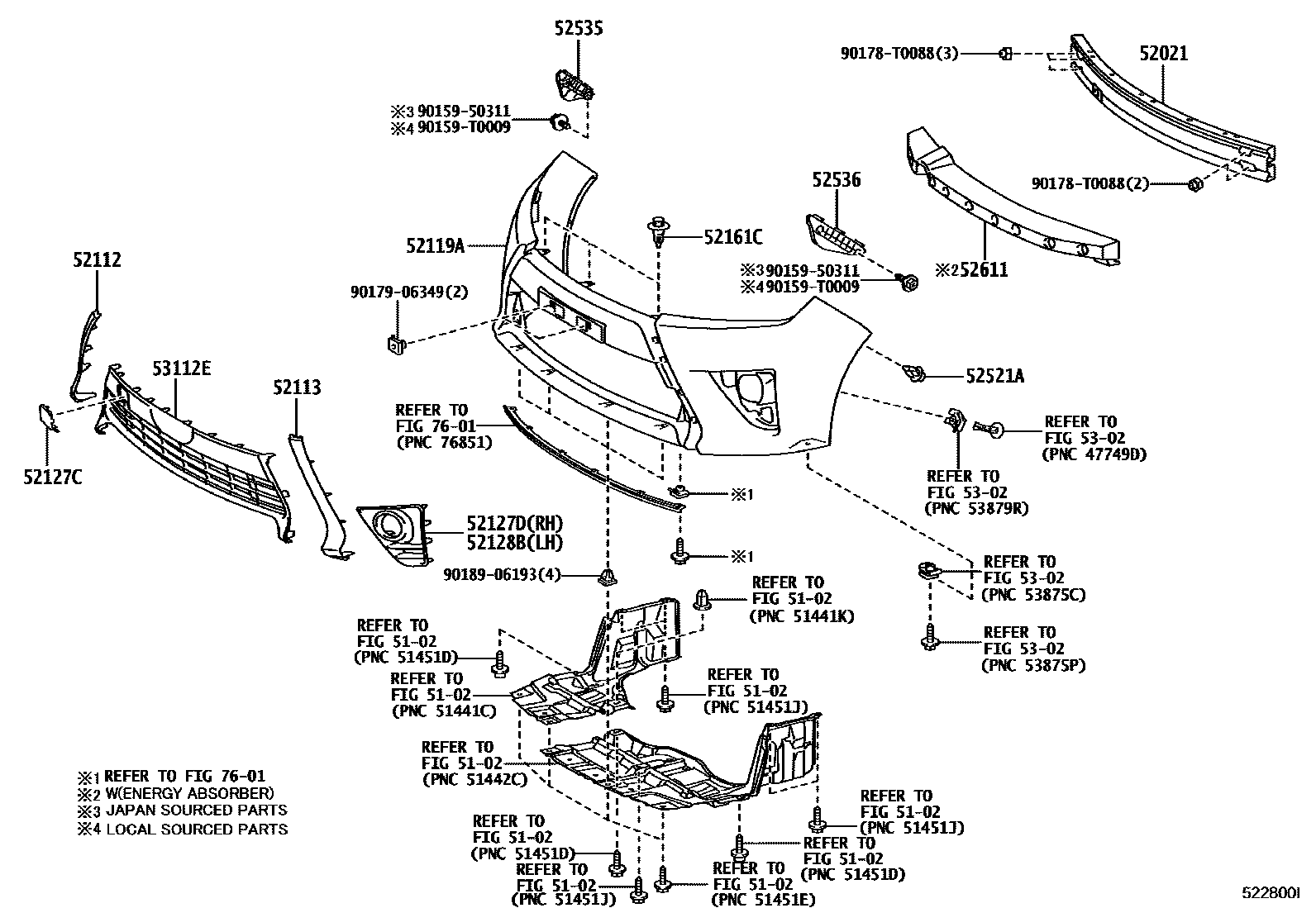

FRONT BUMPER & BUMPER STAY

0001 1 0005 1 0012 1MLM PACKAGE

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0D140iNSP151..PH,SA;NSP150..CVT..PH201310-202302

main52021-0D140iNSP151..TAIW201409-201802

THAILAND PRODUCT

main52021-0D170iNCP150..TAIW201409-201802

TAIWAN PRODUCT

main52021-0D170iNSP151..F201804-202101

main52021-0D190iNSP150,151..H201806-201910

52112BAR, FRONT BUMPER, RH

main52112-0D030iNCP15#..(GCC,GEN,PH,VN)..(D,R)201403-201708

main52112-0D040iNCP15#..(GCC,GEN,PH,VN)..G201310-201708

main52112-0D140iNCP150..V..A201409-201802

main52112-0D150iNSP151..(R,V)..C201403-201712

main52112-0D160iNCP150..IDN..G201403-201712

main52112-0D180iNCP150..V..A201510-201802

52113BAR, FRONT BUMPER, LH

main52113-0D030iNSP150,151..(GCC,GEN,PH,VN)..(D,R)201403-201708

main52113-0D040iNCP15#..(GCC,GEN,PH,VN)..G201310-201708

main52113-0D120iNCP150..V..A201409-201802

main52113-0D130iNSP151..(R,V)..C201403-201712

main52113-0D140iNSP151..G..C201403-201712

main52113-0D150iNSP151..TAIW..V201510-201802

52119ACOVER, FRONT BUMPER

main52119-0U917iNCP150,NSP151..TAIW201409-201802

main52119-0U919iNCP15#,NSP15#..GCC,GEN,PH,TH,VN201310-201708

main52119-0U922iNCP150,NSP151..C201403-201712

main52119-0U932iNSP151..PH,SA;NSP150..CVT..PH201709-202207

main52119-0U932iNSP151..VN..R;NSP150..LHD..(GCC,GEN);NSP151,152..(GCC,GEN,TH)..A201709-202302

PAINT REQ.

main52119-0U933iNSP151..5F..R..C201802-202108

main52119-0U935iNSP150,151..H201806-201910

main52119-0U936iNSP151..F201804-202101

main52119-0U939iNSP151..B201904-202011

52127CCOVER, FRONT BUMPER HOLE

main52721-0D090iNCP150,NSP151..TAIW201409-201802

main52721-0D110iNCP15#,NSP15#..GCC,GEN,PH,TH,VN201310-201708

main52721-0D140iNCP150,NSP151..C201403-201712

main52721-0D330iNSP150,151..(D,R)..H201806-201910

main52721-0D340iNSP151..(G,V)..H201806-201910

main52721-0D370iNSP151..5F..R..C201802-202108

main52721-0D380iNSP151..(G,V)..C201802

main52721-0D420iNSP151..R..F201804-202101

main52721-0D430iNSP151..(G,V)..F201804-202101

main52721-0D440iNSP150..CVT..PH;NSP151..SA..(D,R)201709-202302

main52721-0D450iNSP151..GEN..R201710-202302

MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main52721-0D450iNSP152..HTWCB;NSP150,151..CVT..(GCC,GEN,MA,VN)..(G,V)..(A,B)201710-202302

CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main52721-0D450iNSP152..HTWCB;NSP150,151..CVT..(GCC,GEN,MA,VN)..(G,V)..(A,B)201710-202302

ECUADOR SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main52721-0D450iNSP152..HTWCB;NSP150,151..CVT..(GCC,GEN,MA,VN)..(G,V)..(A,B)201710-202302

PERU SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main52721-0D450iNSP152..HTWCB;NSP150,151..CVT..(GCC,GEN,MA,VN)..(G,V)..(A,B)201710-202302

E-SPORT PACKAGE(GRADE MARK(S))

main52721-0D450iNSP150,151..LHD..GEN..R201710-202302

LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main52721-0D450iNSP151..(PH,SA)..(G,V)201710-202207

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-0D340iNCP15#,NSP15#..(GCC,GEN,PH,TH)..(D,R)201310-201708

main52127-0D350iNCP151..VN;NSP151..VN..R;NSP151..(GCC,PH,VN)..G;NCP15#,NSP150..(GCC,GEN,PH)..G201403-201708

LATIN AMERICA SPEC&E-SPORT PACKAGE(FOR LATIN AMERICA)

main52127-0D350iNCP151..VN;NSP151..VN..R;NSP151..(GCC,PH,VN)..G;NCP15#,NSP150..(GCC,GEN,PH)..G201403-201708

E-SPORT PACKAGE

main52127-0D400iNCP150,NSP151..TAIW201409-201802

main52127-0D450iNCP150,NSP151..R..C201403-201712

main52127-0D460iNCP150,NSP151..(G,V)..C201403-201712

BRUNEI SPEC

main52127-0D750iNSP151..(G,R)..F201804-202101

main52127-0D790iNSP151..V..F201804-202101

main52127-0D840iNSP150..D;NSP151..(D,R)..H201806-201910

main52127-0D850iNSP150..R..H201806-201910

main52127-0D860iNSP151..5F..R..C201802-202110

main52127-0DA00iNSP151..CVT..R..C202110

main52127-0DA80iNSP152..HTWC;NSP151..CVT..D..(A,B);NSP150,151..LHD..(GCC,GEN)..R201709-202302

main52127-0DA90iNSP150,151..CVT..(MA,PH,VN)..R201710-202207

main52127-0DB70iNSP151..GCC..R201710-202302

LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main52127-0DB70iNSP150..5F..G201710-202207

main52127-0DB70iNSP150,151..CVT..(GCC,GEN,MA,VN)..(G,V)..(A,B)201710-202302

CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main52127-0DB70iNSP150,151..CVT..(GCC,GEN,MA,VN)..(G,V)..(A,B)201710-202302

ECUADOR SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main52127-0DB70iNSP150,151..CVT..(GCC,GEN,MA,VN)..(G,V)..(A,B)201710-202302

PERU SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main52127-0DB70iNSP150,151..CVT..(GCC,GEN,MA,VN)..(G,V)..(A,B)201710-202302

MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main52127-0DB70iNSP150,151..CVT..(GCC,GEN,MA,VN)..(G,V)..(A,B)201710-202302

E-SPORT PACKAGE(GRADE MARK(S))

main52127-0DB80iNSP151..(G,V)..C201802

main52127-0DB90iNSP151..(G,V)..H201806-201910

main52127-0DF80iNSP152201911-202302

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-0D160iNCP15#,NSP15#..(GCC,GEN,PH,TH)..(D,R)201310-201708

main52128-0D170iNCP15#,NSP150,151..GCC..R201403-201708

LATIN AMERICA SPEC&E-SPORT PACKAGE(FOR LATIN AMERICA)

main52128-0D170iNCP151..VN;NSP151..VN..R;NSP151..(GCC,PH,VN)..G;NCP15#,NSP150..(GCC,GEN,PH)..G201403-201708

E-SPORT PACKAGE

main52128-0D220iNCP150,NSP151..TAIW201409-201802

main52128-0D270iNCP150,NSP151..R..C201403-201712

main52128-0D280iNCP150,NSP151..(ATM,CVT)..R..C201403-201712

BRUNEI SPEC

main52128-0D500iNSP151..(G,R)..F201804-202101

main52128-0D510iNSP151..V..F201804-202101

main52128-0D590iNSP150..D;NSP151..(D,R)..H201806-201910

main52128-0D600iNSP150..R..H201806-201910

main52128-0D610iNSP151..CVT..R..C201802-202110

main52128-0D680iNSP151..CVT..R..C202110

main52128-0D730iNSP150..RHD..R201709-202302

main52128-0D740iNSP150..5F..PH201710-202207

main52128-0D780iNSP151..5F..GEN201710-202302

E-SPORT PACKAGE(GRADE MARK(S))

main52128-0D780iNSP150..LHD..GEN..R201710-202302

LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main52128-0D780iNSP150..LHD..GEN..R201710-202302

CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main52128-0D780iNSP150..LHD..GEN..R201710-202302

ECUADOR SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main52128-0D780iNSP150..LHD..GEN..R201710-202302

PERU SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main52128-0D780iNSP150..LHD..GEN..R201710-202302

MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S))

main52128-0D780iNSP150..5F..G201710-202207

main52128-0D790iNSP151..(G,V)..C201802

main52128-0D800iNSP151..(G,V)..H201806-201910

main52128-0DF10iNSP152201911-202302

52161CPIECE, FRONT BUMPER

main52161-0K040iNSP152..HTWC;NSP151..CVT..(IDN,MA,VN)..R;NSP150,151..(GCC,IDN,MA)..(D,G,V)¥120201310-202302

main52161-0K040iNSP150,151..H¥120201806-201910

(L)

main52161-0K060iNCP150,NSP151..TAIW201409-201802

main52161-16010iNSP150,151..H¥120201806-201910

(J)

sub52161-0K040¥120

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05170iNSP150..RHD;NSP150..5F..PH¥80202102-202302

(J)

main90467-05170iNCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN¥80201310-202104

main90467-T0047iNSP151..PH,SA;NSP150..CVT..PH202102-202302

(L)

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0D130iNCP15#,NSP15#..GCC,GEN,PH,TH,VN201310-201708

main52535-0D160iNCP150,NSP151..TAIW201409-201802

main52535-0D180iNCP150,NSP151..C201403-201712

main52535-0D230iNSP150..RHD;NSP150..5F..PH201709-202302

main52535-0D260iNSP151..F201804-202101

main52535-0D270iNSP150,151..H201806-201910

main52535-0D290iNSP151..5F..R..C201802-202108

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0D130iNCP15#,NSP15#..GCC,GEN,PH,TH,VN201310-201708

main52536-0D160iNCP150,NSP151..TAIW201409-201802

main52536-0D180iNCP150,NSP151..C201403-201712

main52536-0D230iNSP150..RHD;NSP150..5F..PH201709-202302

main52536-0D260iNSP151..F201804-202101

main52536-0D270iNSP150,151..H201806-201910

main52536-0D290iNSP151..5F..R..C201802-202108

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0D060iNSP150,151..GCC201403-201708

main52611-0D100iNSP150,151..5F..GEN..R201710-202009

LATIN AMERICA SPEC

sub52611-0D101

main52611-0D100iNSP150,151..GCC201710-202009

CHILE SPEC

sub52611-0D101

main52611-0D100iNSP150,151..GCC201710-202009

ECUADOR SPEC

sub52611-0D101

main52611-0D100iNSP150,151..GCC201710-202009

PERU SPEC

sub52611-0D101

main52611-0D100iNSP150,151..GCC201710-202009

BOLIVIA SPEC

sub52611-0D101

main52611-0D100iNSP150,151..GCC201710-202009

MEXICO SPEC

sub52611-0D101

main52611-0D101iNSP151..5F..GEN202009-202209

MEXICO SPEC

sub52611-0D102

main52611-0D101iNSP150,151..GCC202009-202209

LATIN AMERICA SPEC

sub52611-0D102

main52611-0D101iNSP150,151..GCC202009-202209

CHILE SPEC

sub52611-0D102

main52611-0D101iNSP150,151..GCC202009-202209

ECUADOR SPEC

sub52611-0D102

main52611-0D101iNSP150,151..GCC202009-202209

PERU SPEC

sub52611-0D102

main52611-0D101iNSP150,151..GCC202009-202209

COSTA RICA SPEC

sub52611-0D102

main52611-0D102iNSP150,151..GCC202210-202302

PERU SPEC

main52611-0D102iNSP150,151..GCC202210-202302

LATIN AMERICA SPEC

main52611-0D102iNSP150,151..GCC202210-202302

CHILE SPEC

main52611-0D102iNSP150,151..GCC202210-202302

ECUADOR SPEC

main52611-0D102iNSP150,151..GCC202210-202302

MEXICO SPEC

main52611-0D102iNSP150,151..GCC202210-202302

COSTA RICA SPEC

main52611-0D130iNSP150,151..6F201806-201910

sub52611-0D200

5302

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-0D290iNCP15#,NSP15#..GCC,GEN,PH,TH,VN201310-201708

main53112-0D340iNCP150,NSP151..TAIW201409-201802

main53112-0D370iNCP150,NSP151..C201403-201712

main53112-0D610iNSP151..R..F201804-202101

main53112-0D620iNSP151..G..F201804-202101

main53112-0D660iNSP150..RHD..R;NSP150..5F..PH201710-202302

main53112-0D670iNSP150..5F..G201710-202302

main53112-0D700iNSP150,151..(D,R)..H201806-201910

main53112-0D710iNSP151..AGT..G;NSP151..(BZ,GEN)..(G,V)201806-201910

main53112-0D750iNSP151..CVT..R..C201802-202108

main53112-0D760iNSP151..(G,V)..C201802

NO PAINT REQ.

main53112-0D890iNSP152201709-201910

main53112-0DA00iNSP152201911-202302

NO PAINT REQ.

main53112-0DA60iNSP151..PH;NSP151..RHD..V..(A,B)201710-202207

main53112-0DA70iNSP151..V..F201804-202101

main53112-0DA80iNSP151..(BZ,GEN)..G201806-201910

SPORT PACKAGE(*RCL(LED TYPE))

7601

9015950311

main90159-50311¥70

90159T0009

main90159-T0009

90178T0088

main90178-T0088¥120

9017906349

main90179-06349¥180

9018906193

main90189-06193¥80

21 parts on this diagram · 3 diagrams in section
