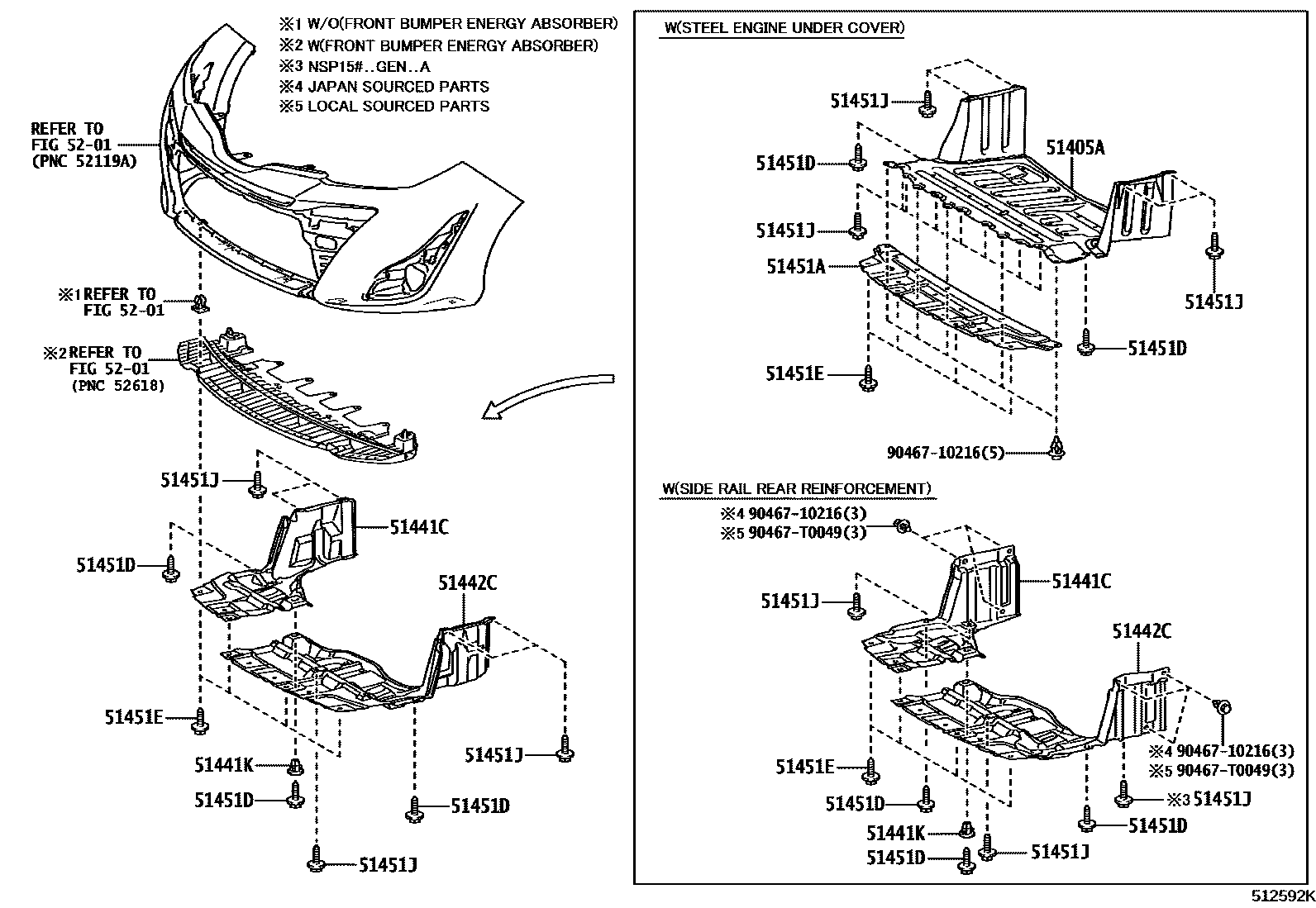

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1UNDER COVER 0002 1SUSPENSION CROSSMEMBER

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-0D030iNCP15#..GEN201403-201606

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL

main51405-0D040iNSP150,151..GEN201607-201702

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL

sub51405-0D041

main51405-0D041iNSP150,151..GEN201703-201708

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL

main51405-0D041iNSP150..RHD201710-202302

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP)

51441CCOVER, ENGINE UNDER, RH

main51441-0D280iNSP150..RHD;NSP150..5F..PH201310-202302

main51441-0D280iNSP151..GEN..R201607-201708

ARGENTINA SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL

main51441-0D282iNSP151..5F..GEN202009-202302

COSTA RICA SPEC

main51441-0D282iNSP151..5F..GEN201710-202302

PERU SPEC

main51441-0D282iNSP151..5F..GEN201710-202109

BOLIVIA SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

main51441-0D282iNSP150,151..5F..GEN..R201710-202302

LATIN AMERICA SPEC

main51441-0D282iNSP150,151..5F..GEN..R201710-202302

CHILE SPEC

main51441-0D282iNSP150,151..5F..GEN..R201710-202302

ECUADOR SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

main51441-0D282iNSP150,151..5F..GEN..R201710-202302

MEXICO SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

main51441-0D320iNCP150..TAIW201409-202101

main51441-0D330iNCP150..C201403-202108

main51441-0D500iNSP150,151..H201806-201910

51441KGROMMET(FOR ENGINE UNDER COVER)

main90189-06006iNSP152..HTWC;NSP151..VN..R;NSP151..5F..C;NSP150,151..GCC..G;NSP150,151..CVT..(B,C,H)201310-202104

main90189-06006iNSP150..RHD;NSP150..5F..PH202102-202302

(J)

main90189-06006iNSP151..GEN..R201607-201708

ARGENTINA SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL

main90189-06076iNSP151..5F..GEN201710-202302

MEXICO SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

main90189-06076iNSP151..5F..GEN201710-202302

LATIN AMERICA SPEC

main90189-06076iNSP151..5F..GEN201710-202302

CHILE SPEC

main90189-06076iNSP151..5F..GEN201710-202302

ECUADOR SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

main90189-06076iNSP151..5F..GEN201710-202302

PERU SPEC

main90189-06076iNSP151..5F..GEN201710-202109

BOLIVIA SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

main90189-06076iNSP152..HTWCB;NSP150,151..6F201806-202302

main90189-06076iNSP151..5F..GEN202009-202302

COSTA RICA SPEC

main90189-T0022iNSP151..PH,SA;NSP150..CVT..PH202102-202302

(L)

51442CCOVER, ENGINE UNDER, LH

main51442-0D170iNSP150..RHD;NSP150..5F..PH201310-202302

main51442-0D170iNSP151..GEN..R201607-201708

ARGENTINA SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL

main51442-0D172iNSP151..5F..GEN201710-202302

PERU SPEC

main51442-0D172iNSP151..5F..GEN201710-202109

BOLIVIA SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

main51442-0D172iNSP150,151..5F..GEN..R201710-202302

LATIN AMERICA SPEC

main51442-0D172iNSP150,151..5F..GEN..R201710-202302

CHILE SPEC

main51442-0D172iNSP150,151..5F..GEN..R201710-202302

ECUADOR SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

main51442-0D172iNSP150,151..5F..GEN..R201710-202302

MEXICO SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

main51442-0D172iNSP151..5F..GEN202009-202302

COSTA RICA SPEC

main51442-0D200iNSP151..TAIW201409-202101

main51442-0D210iNSP151..C201403-202108

main51442-0D310iNSP150,151..H201806-201910

51451ACOVER, ENGINE UNDER, CENTER

main51451-0D030iNSP150..RHD201710-202302

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP)

main51451-0D030iNSP150,151..GEN201403-201708

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL

51451DSCREW, NO.1

main90159-60383iNCP150,NSP151..TAIW201409-201802

main90159-60383iNSP151..PH,SA;NSP150..CVT..PH201709-202302

(J)

main90159-60383iNSP150,151..LHD..GEN..A201710-202302

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP),(J)

main90159-T0008iNCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TH,VN201310-201712

main90159-T0008iNSP151..PH,SA;NSP150..CVT..PH201709-202302

(L)

main90159-T0008iNSP150,151..LHD..GEN..A201710-202302

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP),(L)

main90159-T0008iNCP15#,NSP150,151..GEN201403-201708

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL

main90159-T0008iNSP151..GEN..R201607-201708

ARGENTINA SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL

51451ESCREW, NO.2

main90159-60488iNSP150,151..H201806-201910

main90159-T0033iNSP151..PH,SA;NSP150..CVT..PH201310-202302

main90159-T0033iNSP150..CVT..GEN..G201710-202209

LAOS SPEC&MLM PACKAGE

main90159-T0033iNSP151..VN..G201710-202009

MLM PACKAGE

51451JBOLT, NO.1

main90119-06767iNSP150,151..F,H201409-202101

main90119-06767iNSP150..RHD201710-202302

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP),(J)

main90119-06767iNSP151..PH,SA;NSP150..CVT..PH201709-202302

(J)

main90119-T0144iNSP151..5F..GEN201710-202302

CHILE SPEC

main90119-T0144iNSP151..5F..GEN201710-202302

ECUADOR SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

main90119-T0144iNSP151..5F..GEN201710-202302

PERU SPEC

main90119-T0144iNSP151..5F..GEN201710-202302

MEXICO SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

main90119-T0144iNSP151..5F..GEN201710-202302

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP),(L)

main90119-T0144iNSP150,151..LHD..GEN..A201710-202302

LATIN AMERICA SPEC

main90119-T0144iNSP152..HTWC;NSP151..CVT..(IDN,MA,VN)..R;NSP150,151..(GCC,IDN,MA)..(D,G,V)201709-202302

(L)

main90119-T0144iNSP151..5F..GEN202009-202302

COSTA RICA SPEC

main90119-T0144iNCP15#,NSP150,151..GEN201403-201708

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL

main90119-T0144iNSP151..GEN..R201607-201708

ARGENTINA SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL

main90119-T0144iNCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TH,VN201310-201712

main90119-T0144iNSP151..5F..GEN201710-202109

BOLIVIA SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

5201

9046710216

main90467-10216

90467T0049

main90467-T0049

11 parts on this diagram · 2 diagrams in section
