FRONT SPRING & SHOCK ABSORBER

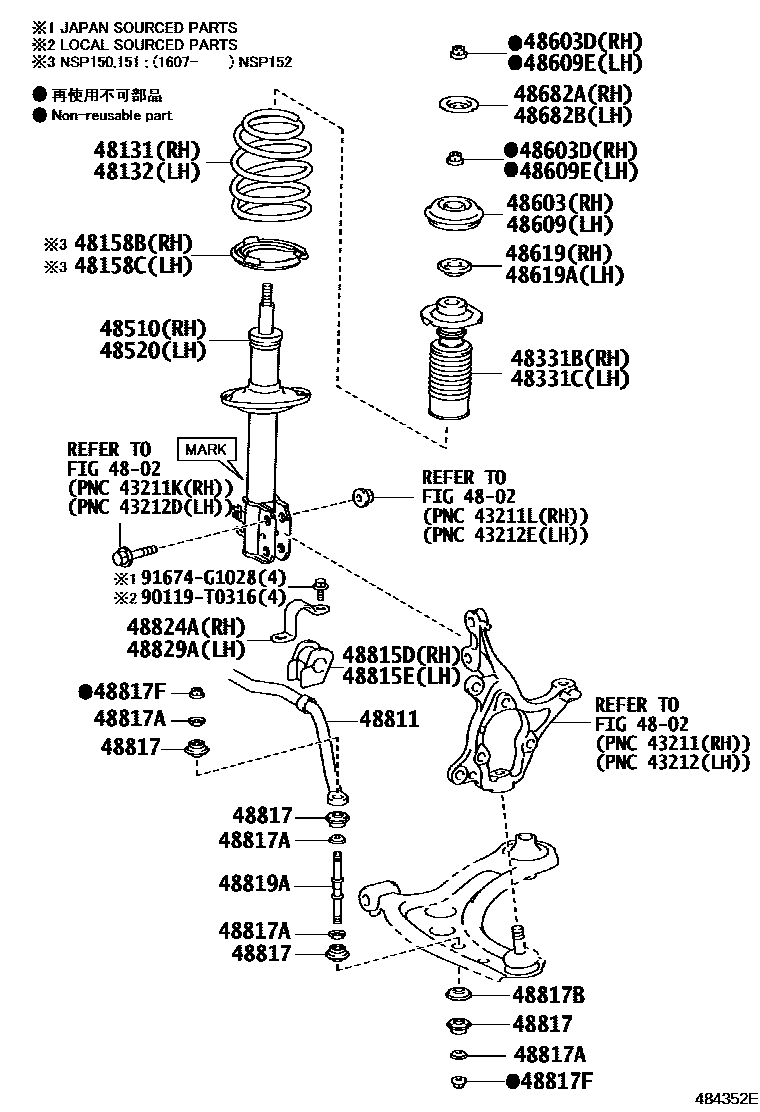

Parts diagram
4802
48131SPRING, FRONT COIL, RH
main48131-0D570i201403-201609
main48131-0D820i201310-201606
main48131-0D830i201403-201708
main48131-0D890i201409-201604
main48131-0DA00i201409-201604
main48131-0DB00i201403-201712
main48131-0DC90i201802
main48131-0DD00i201802
main48131-0DE20i201607-201708
main48131-0DF00i201806-201910
URUGUAY SPEC
main48131-0DF20i201806-201910
main48131-0DF50i201804-202101
main48131-0DF60i201904-202011
main48131-0D840i201403-201606
ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL
main48131-0D850i201710-202302
ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)
main48131-0DE30supersedes 48131-0DE20i201710-202108
ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)
main48131-0DE90supersedes 48131-0DF10i201806-201910
URUGUAY SPEC
48132SPRING, FRONT COIL, LH
main48131-0D570i201403-201712
main48131-0D820i201310-201708
main48131-0D830i201709-202302
main48131-0D890i201409-201604
main48131-0DA00i201804-202101
main48131-0DB00i201403-201712
main48131-0DC90i201802
main48131-0DD00i201802
main48131-0DE20i201607-201708
main48131-0DF00i201806-201910
URUGUAY SPEC
main48131-0DF20i201806-201910
main48131-0DF50i201804-202101
main48131-0DF60i201904-202011
main48131-0D840i201403-201708
ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC
main48131-0D850i201710-202108
ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)
main48131-0DE30supersedes 48131-0DE20i201710-202302
ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)
main48131-0DE90supersedes 48131-0DF10i201806-201910
URUGUAY SPEC
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
main48158-0D080i201607-201708
main48158-0D090i201610-201712
main48158-0D110i201806-201910
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
main48158-0D080i201607-201708
main48158-0D090i201610-201712
main48158-0D110i201806-201910
48331BBUMPER, FRONT SPRING, RH
main48304-0D150i201310-201802
main48304-0D170i201403-201712
main48304-0D240i201709-202302
main48304-0D250i201802
main48304-0D270i201806-201910
48331CBUMPER, FRONT SPRING, LH
main48304-0D150i201310-201708
main48304-0D170i201403-201712
main48304-0D240i201709-202108
main48304-0D250i201802-202108
main48304-0D270i201806-201910
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-0D470i201607-201708
MARK 48510-0D470,ECO PACKAGE
main48510-0D530i201409-201604
MARK 48510-0D530
sub48510-0D531
main48510-0D540i201409-201604
MARK 48510-0D540
sub48510-0D541
main48510-0D591i201403-201507
MARK 48510-0D591
main48510-0D592i201508-201606
MARK 48510-0D592
main48510-0D730i201403-201609
MARK 48510-0D730
main48510-0D740i201403-201609
MARK 48510-0D740
main48510-0D780i201403-201609
MARK 48510-0D780
main48510-0DC30i201605-201802
MARK 48510-0DC30
sub48510-0DC31
main48510-0DC40i201610-201712
MARK 48510-0DC40
main48510-0DD40i201804-202101
MARK 48510-0DD40
main48510-0DD60i201904-202011
MARK 48510-0DD60
main48510-0DD80i201802-202108
MARK 48510-0DD80
main48510-0DE30i201806-201910
MARK 48510-0DE30
main48510-0DF10i201806-201910
MARK 48510-0DF10
main48510-0DF60i201709-202108
MARK 48510-0DF60
main48510-0DJ00i201903-202101
MARK 48510-0DJ00
main48510-0D480i201607-201708
MARK 48510-0D480,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL
main48510-0D571i201403-201507
MARK 48510-0D571,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL
main48510-0D572i201508-201606
MARK 48510-0D572,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC
main48510-0DA70i201710-202302
MARK 48510-0DA70,LATIN AMERICA SPEC
main48510-0DD00supersedes 48510-0DJ00i201710-202109
MARK 48510-0DD00,LATIN AMERICA SPEC
main48510-0DD30i201710-202302
MARK 48510-0DD30,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP)
main48510-0DF20i201710-202302
MARK 48510-0DF20,LATIN AMERICA SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)
48520ABSORBER ASSY, SHOCK, FRONT LH
main48510-0D470i201607-201708
MARK 48510-0D470,ECO PACKAGE
main48510-0D530i201409-201604
MARK 48510-0D530
sub48510-0D531
main48510-0D540i201409-201604
MARK 48510-0D540
sub48510-0D541
main48510-0D591i201403-201507
MARK 48510-0D591
main48510-0D592i201508-201606
MARK 48510-0D592
main48510-0D730i201403-201609
MARK 48510-0D730
main48510-0D740i201403-201609
MARK 48510-0D740
main48510-0D780i201403-201609
MARK 48510-0D780
main48510-0DC30i201605-201802
MARK 48510-0DC30
sub48510-0DC31
main48510-0DC40i201610-201712
MARK 48510-0DC40
main48510-0DD40i201804-202101
MARK 48510-0DD40
main48510-0DD60i201904-202011
MARK 48510-0DD60
main48510-0DD80i201802-202108
MARK 48510-0DD80
main48510-0DE30i201806-201910
MARK 48510-0DE30
main48510-0DF60i201709-202108
MARK 48510-0DF60
main48510-0DJ00i201903-202101
MARK 48510-0DJ00
main48520-0D460i201806-201910
MARK 48520-0D460
main48510-0D480i201607-201708
MARK 48510-0D480,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL
main48510-0D571i201403-201507
MARK 48510-0D571,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL
main48510-0D572i201508-201606
MARK 48510-0D572,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC
main48510-0DD00supersedes 48510-0DJ00i201710-202302
MARK 48510-0DD00,CHILE SPEC
main48510-0DD30i201710-202108
MARK 48510-0DD30,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP)
main48520-0D450i201710-202302
MARK 48520-0D450,CHILE SPEC
main48520-0D470i201710-202302
MARK 48520-0D470,ECUADOR SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
main48609-0D140i201501-201604
main48609-0D150i201709-202108
main48609-0D180i201802-202108
main48609-0D230i201806-201910
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
main90178-T0064×2i201310-201609
(L)
main90179-12145×2i201802-202101
(J)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
main48609-0D140i201501-201802
main48609-0D150i201709-202207
main48609-0D180i201403-201609
main48609-0D230i201806-201910
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
main90178-T0064×2i201607-201708
main90179-12145×2i201501-201604
48619BEARING, STRUT MOUNTING, RH
main48619-52030i201310-201606
48619ABEARING, STRUT MOUNTING, LH
main48619-52030i201310-201604
48682ASUPPORT, FRONT SUSPENSION, NO.2 RH
main48682-0D090i201403-201609
main48682-0D110i201310-201604
main48682-0D190i201806-201910
main48682-0D200i201605-201708
main48682-0D210i201610-201712
48682BSUPPORT, FRONT SUSPENSION, NO.2 LH
main48682-0D090i201403-201609
main48682-0D110i201310-201606
main48682-0D190i201806-201910
main48682-0D200i201605-201802
main48682-0D210i201802-202108
48811BAR, STABILIZER, FRONT
main48811-0D190i201310-201602
ECO PACKAGE
main48811-0D191i201709-202302
main48811-0D200i201409-201604
main48811-0D201i201605-201802
main48811-0D220i201403-201609
main48811-0D221i201802-202108
main48811-0D250i201806-201910
main48811-0D270i201806-201910
main48811-0D260i201710-202302
PERU SPEC
48815DBUSH, FRONT STABILIZER BAR, RH
main48815-0D190i201310-201604
main48815-0D210i201403-201609
main48815-0D211i202003-202108
main48815-0D240i201806-201910
main48815-0D260i201806-201910
main48815-0D250i201710-202302
PERU SPEC
48815EBUSH, FRONT STABILIZER BAR, LH
main48815-0D190i201310-201604
main48815-0D210i201403-201609
main48815-0D211i202003-202108
main48815-0D240i201806-201910
main48815-0D260i201806-201910
main48815-0D250i201710-202109
PERU SPEC
48817CUSHION, FRONT STABILIZER
main48817-52010×8i201310-201604
main48817-52011×8i201702-201708
ECO PACKAGE
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
main90948-02179×8i201310-201604
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
main90948-02178×2i201310-201604
48817FNUT(FOR FRONT STABILIZER BAR)
main90177-T0007×4i201709-202108
(L)
main94182-10800×4i201310-201712
48819ABOLT, FRONT STABILIZER
main48819-70010×2i201310-201404
main48821-52040×2supersedes 48821-52040i201403-201604
48824ABRACKET, FRONT STABILIZER, NO.1 RH
main48824-0D030i201310-201708
ECO PACKAGE
main48824-0D040i201409-201604
main48824-0D110i201806-201910
main48824-0D140i201802-202108
48829ABRACKET, FRONT STABILIZER, NO.1 LH
main48824-0D030i201709-202108
main48824-0D040i201804-202101
main48824-0D110i201806-201910
main48824-0D140i201802-202108
90119T0316
main90119-T0316
91674G1028
main91674-G1028

29 parts on this diagram · 2 diagrams in section
