DISC WHEEL & WHEEL CAP

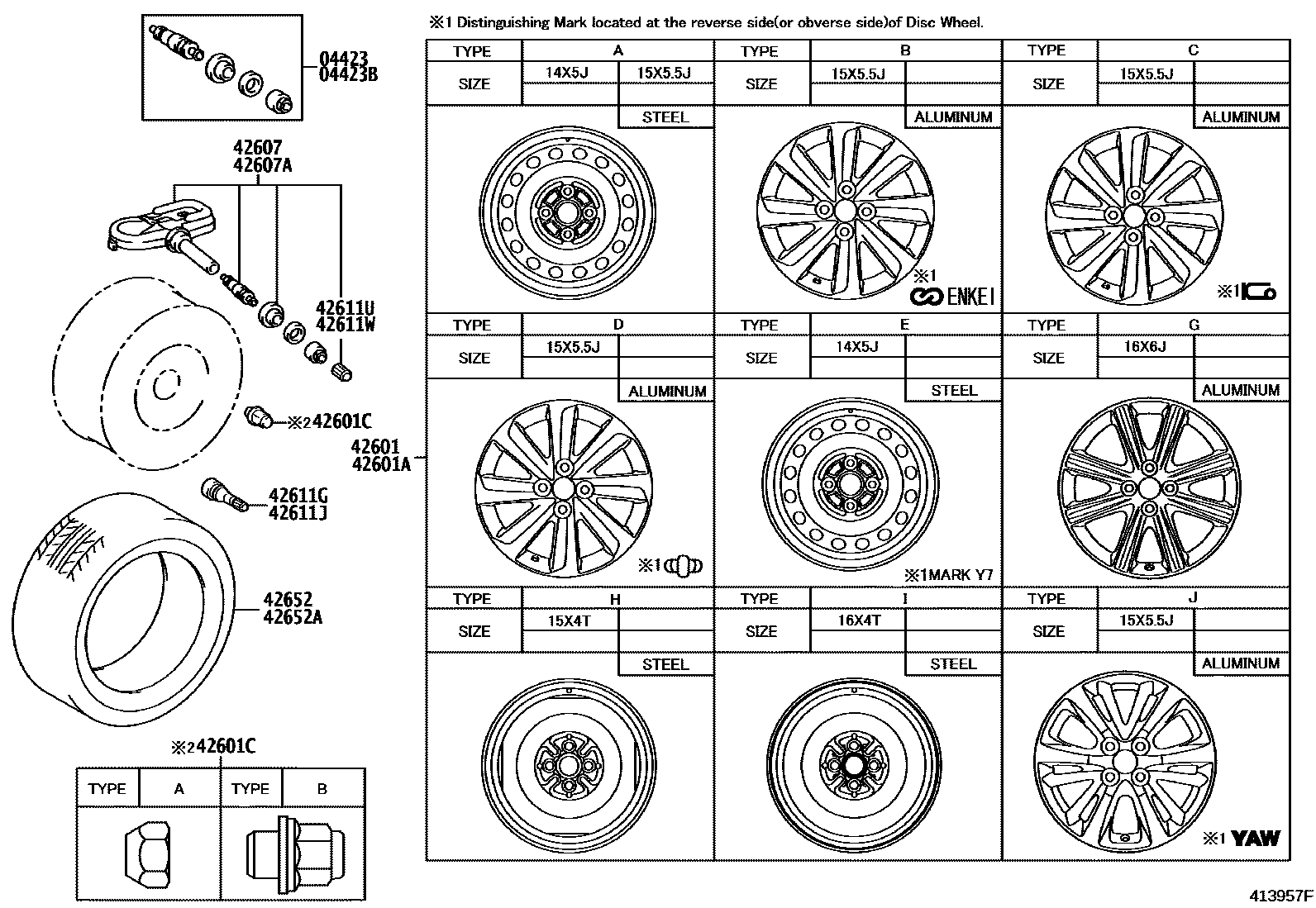

Parts diagram
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
main04423-0N010i201702-201707
(L)
main04423-33060i201605-202302
main04423-33060i201702-201707
(J)
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
main04423-33060i201607-201708
42601WHEEL, DISC
main42611-0D690i201403-201606
14X5J, #,LATIN AMERICA SPEC,TYPE E:REFER ILLUST.
sub42611-0D691
main42611-0D690i201310-201607
14X5J, #,J PACKAGE,TYPE E:REFER ILLUST.
sub42611-0D691
main42611-0D690i201403-201606
14X5J, #,TYPE E:REFER ILLUST.
sub42611-0D691
main42611-0D690i201310-201607
14X5J, #,ECO PACKAGE,TYPE E:REFER ILLUST.
sub42611-0D691
main42611-0D691i201607-202109
14X5J, #,LATIN AMERICA SPEC,TYPE E:REFER ILLUST.
main42611-0D691i201607-201708
14X5J, #,J PACKAGE,TYPE E:REFER ILLUST.
main42611-0D691i201607-202302
14X5J, #,TYPE E:REFER ILLUST.
main42611-0D691i201607-201708
14X5J, #,ECO PACKAGE,TYPE E:REFER ILLUST.
main42611-0D691i201709-201910
14X5J, #,TIRE & DISC WHEEL-175/65R14, STEEL,TYPE E:REFER ILLUST.
main42611-0D700i201409-201604
14X5J, #,TYPE A:REFER ILLUST.
main42611-0D701i201605-202101
14X5J, #,TYPE A:REFER ILLUST.
main42611-0D750i201403-201606
15X5.5J, #,LATIN AMERICA SPEC,TYPE A:REFER ILLUST.
sub42611-0D751
main42611-0D750i201310-201606
15X5.5J, #,TYPE A:REFER ILLUST.
sub42611-0D751
main42611-0D750i201403-201606
15X5.5J, #,E-HIGH PACKAGE,TYPE A:REFER ILLUST.
sub42611-0D751
main42611-0D750i201403-201603
15X5.5J, #,BRUNEI SPEC,TYPE A:REFER ILLUST.
sub42611-0D751
main42611-0D751i201607-202302
15X5.5J, #,TYPE A:REFER ILLUST.
main42611-0D751i201710-202302
15X5.5J, #,CHILE SPEC,TYPE A:REFER ILLUST.
main42611-0D751i201710-202302
15X5.5J, #,ECUADOR SPEC,TYPE A:REFER ILLUST.
main42611-0D751i201710-202302
15X5.5J, #,PERU SPEC,TYPE A:REFER ILLUST.
main42611-0D751i201710-202302
15X5.5J, #,E-HI PACKAGE(WHEEL CAP(FOR 15INCH)),TYPE A:REFER ILLUST.
main42611-0D751i201607-202302
15X5.5J, #,LATIN AMERICA SPEC,TYPE A:REFER ILLUST.
main42611-0D751i202009-202302
15X5.5J, #,COSTA RICA SPEC,TYPE A:REFER ILLUST.
main42611-0D751i201603-202109
15X5.5J, #,BRUNEI SPEC,TYPE A:REFER ILLUST.
main42611-0D751i201607-201708
15X5.5J, #,E-HIGH PACKAGE,TYPE A:REFER ILLUST.
main42611-0D751i201710-202109
15X5.5J, #,BOLIVIA SPEC,TYPE A:REFER ILLUST.
main42611-0D770i201310-201606
15X5.5J, #,G PACKAGE,TYPE B:REFER ILLUST.
sub42611-0D771
main42611-0D770i201403-201606
15X5.5J, #,E-SPORT PACKAGE,TYPE B:REFER ILLUST.
sub42611-0D771
main42611-0D770i201403-201606
15X5.5J, #,TYPE B:REFER ILLUST.
sub42611-0D771
main42611-0D771i201607-201708
15X5.5J, #,TYPE B:REFER ILLUST.
main42611-0D771i201607-201708
15X5.5J, #,G PACKAGE,TYPE B:REFER ILLUST.
main42611-0D771i201607-201708
15X5.5J, #,E-SPORT PACKAGE,TYPE B:REFER ILLUST.
main42611-0D780i201310-201606
15X5.5J, #,G PACKAGE,TYPE C:REFER ILLUST.
sub42611-0D771
main42611-0D780i201403-201606
15X5.5J, #,TYPE C:REFER ILLUST.
sub42611-0D771
main42611-0D780i201403-201606
15X5.5J, #,E-SPORT PACKAGE,TYPE C:REFER ILLUST.
sub42611-0D771
main42611-0D781i201607-201708
15X5.5J, #,G PACKAGE,TYPE C:REFER ILLUST.
main42611-0D781i201607-201708
15X5.5J, #,TYPE C:REFER ILLUST.
main42611-0D781i201607-201708
15X5.5J, #,E-SPORT PACKAGE,TYPE C:REFER ILLUST.
main42611-0D800i201409-201604
15X5.5J, #,TYPE D:REFER ILLUST.
main42611-0D801i201605-201802
15X5.5J, #,TYPE D:REFER ILLUST.
main42611-0D850i201409-201604
16X6J, #,TYPE G:REFER ILLUST.
main42611-0D851i201605-201802
16X6J, #,TYPE G:REFER ILLUST.
main42611-0DB90i201403-201609
15X5.5J, #,TYPE D:REFER ILLUST.
sub42611-0DB91
main42611-0DB91i201610-201712
15X5.5J, #,TYPE D:REFER ILLUST.
main42611-0DC00i201403-201712
16X6J, #,TYPE G:REFER ILLUST.
main42611-0DE80i201710-202009
15X5.5J, #,TYPE J:REFER ILLUST.
main42611-0DE80i201710-202009
15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE J:REFER ILLUST.
main42611-0DE80i201709-201910
15X5.5J, #,TIRE & DISC WHEEL-185/60R15, ALUMINUM,TYPE J:REFER ILLUST.
main42611-0DE90i201710-202009
15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE K:REFER ILLUST.
main42611-0DE90i201710-202009
15X5.5J, #,TYPE K:REFER ILLUST.
main42611-0DE90i201709-201910
15X5.5J, #,TIRE & DISC WHEEL-185/60R15, ALUMINUM,TYPE K:REFER ILLUST.
main42611-0DF00i201904-202011
15X5.5J, #,TYPE N:REFER ILLUST.
main42611-0DF30i201804-202101
15X5.5J, #,TYPE M:REFER ILLUST.
main42611-0DF40i201802-202009
15X5.5J, #,TYPE M:REFER ILLUST.
main42611-0DF50i201710-202302
16X6J, #,TYPE L:REFER ILLUST.
main42611-0DF60i201804-202101
16X6J, #,TYPE P:REFER ILLUST.
main42611-0DF70i201802
16X6J, #,TYPE P:REFER ILLUST.
main42611-0DF90i201904-202011
16X6J, #,TYPE Q:REFER ILLUST.
main42611-0DG20i201806-201910
15X5.5J, #,TYPE S:REFER ILLUST.
main42611-0DG30i201806-201910
15X5.5J, #,TYPE T:REFER ILLUST.
main42611-0DG40i201806-201910
15X5.5J, #,TYPE U:REFER ILLUST.
main42611-0DG90i201802-202009
15X5.5J, #,TYPE N:REFER ILLUST.
main42611-0DJ00i201802
16X6J, #,TYPE Q:REFER ILLUST.
main42611-0DL10i201810-202009
15X5.5J, #,TIRE & DISC WHEEL-185/60R15, ALUMINUM,TYPE J:REFER ILLUST.
main42611-0DL70i202009-202302
15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE X:REFER ILLUST.
main42611-0DL70i202009-202302
15X5.5J, #,TYPE X:REFER ILLUST.
main42611-0DL70i202009-202302
15X5.5J, #,TIRE & DISC WHEEL-185/60R15, ALUMINUM,TYPE X:REFER ILLUST.
main42611-0DL80i202009-202302
15X5.5J, #,TIRE & DISC WHEEL-185/60R15, ALUMINUM,TYPE Y:REFER ILLUST.
main42611-0DL80i202009-202302
15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE Y:REFER ILLUST.
main42611-0DL80i202009-202302
15X5.5J, #,TYPE Y:REFER ILLUST.
main42611-0DM00i202009-202109
15X5.5J,#,TYPE W:REFER ILLUST.
main42611-0DM60i201912-202009
15X5.5J,#,TIRE & DISC WHEEL-185/60R15, ALUMINUM,TYPE K:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
main42611-02280i201409-202101
15X4T,TYPE H:REFER ILLUST.
main42611-02690i201409-201802
16X4T,TYPE I:REFER ILLUST.
main42611-02690i201804-202101
16X4T,TYPE R:REFER ILLUST.
main42611-0D690i201403-201606
14X5J, #,LATIN AMERICA SPEC,TYPE E:REFER ILLUST.
sub42611-0D691
main42611-0D690i201310-201607
14X5J, #,TYPE E:REFER ILLUST.
sub42611-0D691
main42611-0D691i201607-202302
14X5J, #,TYPE E:REFER ILLUST.
main42611-0D691i201607-202109
14X5J, #,LATIN AMERICA SPEC,TYPE E:REFER ILLUST.
main42611-0D750i201403-201606
15X5.5J, #,E-HIGH PACKAGE,TYPE A:REFER ILLUST.
sub42611-0D751
main42611-0D750i201403-201606
15X5.5J, #,TYPE A:REFER ILLUST.
sub42611-0D751
main42611-0D750i201403-201606
15X5.5J, #,LATIN AMERICA SPEC,TYPE A:REFER ILLUST.
sub42611-0D751
main42611-0D750i201403-201603
15X5.5J, #,BRUNEI SPEC,TYPE A:REFER ILLUST.
sub42611-0D751
main42611-0D751i201710-202302
15X5.5J, #,ECUADOR SPEC,TYPE A:REFER ILLUST.
main42611-0D751i201607-202302
15X5.5J, #,TYPE A:REFER ILLUST.
main42611-0D751i201607-202302
15X5.5J, #,LATIN AMERICA SPEC,TYPE A:REFER ILLUST.
main42611-0D751i201607-201708
15X5.5J, #,E-HIGH PACKAGE,TYPE A:REFER ILLUST.
main42611-0D751i201603-202109
15X5.5J, #,BRUNEI SPEC,TYPE A:REFER ILLUST.
main42611-0D751i201710-202302
15X5.5J, #,PERU SPEC,TYPE A:REFER ILLUST.
main42611-0D751i201710-202109
15X5.5J, #,BOLIVIA SPEC,TYPE A:REFER ILLUST.
main42611-0D751i201710-202302
15X5.5J, #,CHILE SPEC,TYPE A:REFER ILLUST.
main42611-0D751i201710-202302
15X5.5J, #,E-HI PACKAGE(WHEEL CAP(FOR 15INCH)),TYPE A:REFER ILLUST.
main42611-0D751i202009-202302
15X5.5J, #,COSTA RICA SPEC,TYPE A:REFER ILLUST.
main42611-0D760i201904-202011
15X5.5J, #,TYPE A:REFER ILLUST.
main42611-0D770i201403-201606
15X5.5J, #,E-SPORT PACKAGE,TYPE B:REFER ILLUST.
sub42611-0D771
main42611-0D770i201403-201606
15X5.5J, #,TYPE B:REFER ILLUST.
sub42611-0D771
main42611-0D771i201607-201708
15X5.5J, #,TYPE B:REFER ILLUST.
main42611-0D771i201607-201708
15X5.5J, #,E-SPORT PACKAGE,TYPE B:REFER ILLUST.
main42611-0D780i201403-201606
15X5.5J, #,E-SPORT PACKAGE,TYPE C:REFER ILLUST.
sub42611-0D771
main42611-0D780i201403-201606
15X5.5J, #,TYPE C:REFER ILLUST.
sub42611-0D771
main42611-0D781i201607-201708
15X5.5J, #,E-SPORT PACKAGE,TYPE C:REFER ILLUST.
main42611-0D781i201607-201708
15X5.5J, #,TYPE C:REFER ILLUST.
main42611-0DB81i201806-201907
14X5J,#,SPARE TIRE-185/60R15, STEEL,TYPE V:REFER ILLUST.
main42611-0DB81i201806-201910
14X5J,#,TYPE V:REFER ILLUST.
main42611-0DB90i201403-201609
15X5.5J, #,TYPE D:REFER ILLUST.
sub42611-0DB91
main42611-0DB91i201610-201712
15X5.5J, #,TYPE D:REFER ILLUST.
main42611-0DC00i201403-201712
16X6J, #,TYPE G:REFER ILLUST.
main42611-0DE80i201710-202009
15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE J:REFER ILLUST.
main42611-0DE80i201710-202009
15X5.5J, #,TYPE J:REFER ILLUST.
main42611-0DE90i201710-202009
15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE K:REFER ILLUST.
main42611-0DE90i201710-202009
15X5.5J, #,TYPE K:REFER ILLUST.
main42611-0DF40i201802-202009
15X5.5J, #,TYPE M:REFER ILLUST.
main42611-0DF50i201710-202302
16X6J, #,TYPE L:REFER ILLUST.
main42611-0DF70i201802
16X6J, #,TYPE P:REFER ILLUST.
main42611-0DF90i201904-202011
16X6J, #,TYPE Q:REFER ILLUST.
main42611-0DG20i201806-201910
15X5.5J, #,TYPE S:REFER ILLUST.
main42611-0DG20i201806-201910
15X5.5J, #,SPARE TIRE-185/60R15, STEEL,TYPE S:REFER ILLUST.
main42611-0DG90i201802-202009
15X5.5J, #,TYPE N:REFER ILLUST.
main42611-0DJ00i201802
16X6J, #,TYPE Q:REFER ILLUST.
main42611-0DL70i202009-202302
15X5.5J, #,TYPE X:REFER ILLUST.
main42611-0DL70i202009-202302
15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE X:REFER ILLUST.
main42611-0DL80i202009-202302
15X5.5J, #,TYPE Y:REFER ILLUST.
main42611-0DL80i202009-202302
15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE Y:REFER ILLUST.
main42611-0DM00i202009-202109
15X5.5J,#,TYPE W:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
main90942-01007i201710-202302
PERU SPEC,TYPE A:REFER ILLUST.
main90942-01007i201310-202302
TYPE A:REFER ILLUST.
main90942-01007i201403-202302
LATIN AMERICA SPEC,TYPE A:REFER ILLUST.
main90942-01007i201403-201712
BRUNEI SPEC,TYPE A:REFER ILLUST.
main90942-01007i201710-202109
BOLIVIA SPEC,TYPE A:REFER ILLUST.
main90942-01007i201802-202109
BRUNEI SPEC,(J),T/P A:REFER ILL.
main90942-01007i201911-202109
BRUNEI SPEC&TIRE & DISC WHEEL-185/60R15, STEEL,(J),T/P A:REFER ILL.
main90942-01007i201710-202302
CHILE SPEC,TYPE A:REFER ILLUST.
main90942-01007i201710-202302
ECUADOR SPEC,TYPE A:REFER ILLUST.
main90942-01007i202009-202302
COSTA RICA SPEC,TYPE A:REFER ILLUST.
main90942-01007i202109
(J),T/P A:REFER ILL.
main90942-01033i201403-202302
TYPE B:REFER ILLUST.
main90942-01033i201709-202302
TIRE & DISC WHEEL-185/60R15, ALUMINUM,TYPE B:REFER ILLUST.
main90942-01033i201403-201708
E-SPORT PACKAGE,TYPE B:REFER ILLUST.
main90942-01033i201310-201708
G PACKAGE,TYPE B:REFER ILLUST.
main90942-01033i201710-202302
E-SPORT PACKAGE(GRADE MARK(S)),TYPE B:REFER ILLUST.
main90942-T1009i201911-202109
BRUNEI SPEC&TIRE & DISC WHEEL-185/60R15, STEEL,(L),T/P A:REFER ILL.
main90942-T1009i201802-202109
BRUNEI SPEC,(L),T/P A:REFER ILL.
main90942-T1009i202109
(L),T/P A:REFER ILL.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
main42607-06040i201702-201707
(L)
main42607-42021i201607-202202
main42607-52020i201702-201707
(J)
main42607-52020i201605-202101
main42607-52040i202203
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
main42607-42021i201607-202202
main42607-52040i202203-202302
42611GVALVE (FOR TUBELESS TIRE)
main90080-94031i201310-202302
main90942-05009i201403-202108
main90942-05009i201901-201910
(J)
main90942-C5004i201901-201910
(L)
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90080-94031i201310-202302
main90083-45001i201409-202101
main90942-05009i201403-202108
main90942-05009i201901-201910
(J)
main90942-C5004i201901-201910
(L)
42611UCAP, TIRE VALVE
main90942-05039i201607-202101
main90942-05039i201605-201802
(J)
main90942-C5001i201702-201707
(L)
42611WCAP, TIRE VALVE (FOR SPARE)
main90942-05039i201607-202302
42652TIRE
main42652-0D620i201409-202101
185/60R15,*B/S
main42652-0D640i201409-202101
195/50R16,*B/S
main42652-0D660i201409-202101
175/65R14,*B/S
main42652-0DE70i201409-202101
175/65R14
main42652-0DE80i201409-202101
185/60R15
main42652-0DG50i201806-201910
185/60R15,*B/S
main42652-0DG60i201806-201910
185/60R15,*D/L
42652ATIRE (FOR SPARE)
main42652-02890i201409-201705
T125/70D16,*C/S
sub42652-02891
main42652-02891i201706-202101
T125/70D16,*C/S
main42652-0DD10i201806-201907
175/65R14,*PIRELLI,SPARE TIRE-185/60R15, STEEL
main42652-0DD10i201806-201910
175/65R14,*PIRELLI
main42652-0DG50i201806-201910
185/60R15,*B/S,SPARE TIRE-185/60R15, STEEL
main42652-0DG50i201806-201910
185/60R15,*B/S
main42652-0DG60i201806-201910
185/60R15,*D/L,SPARE TIRE-185/60R15, STEEL
main42652-0DG60i201806-201910
185/60R15,*D/L
main4265A-0D050i201409-202101
T125/70D15

13 parts on this diagram · 6 diagrams in section

DISC WHEEL & WHEEL CAP — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
