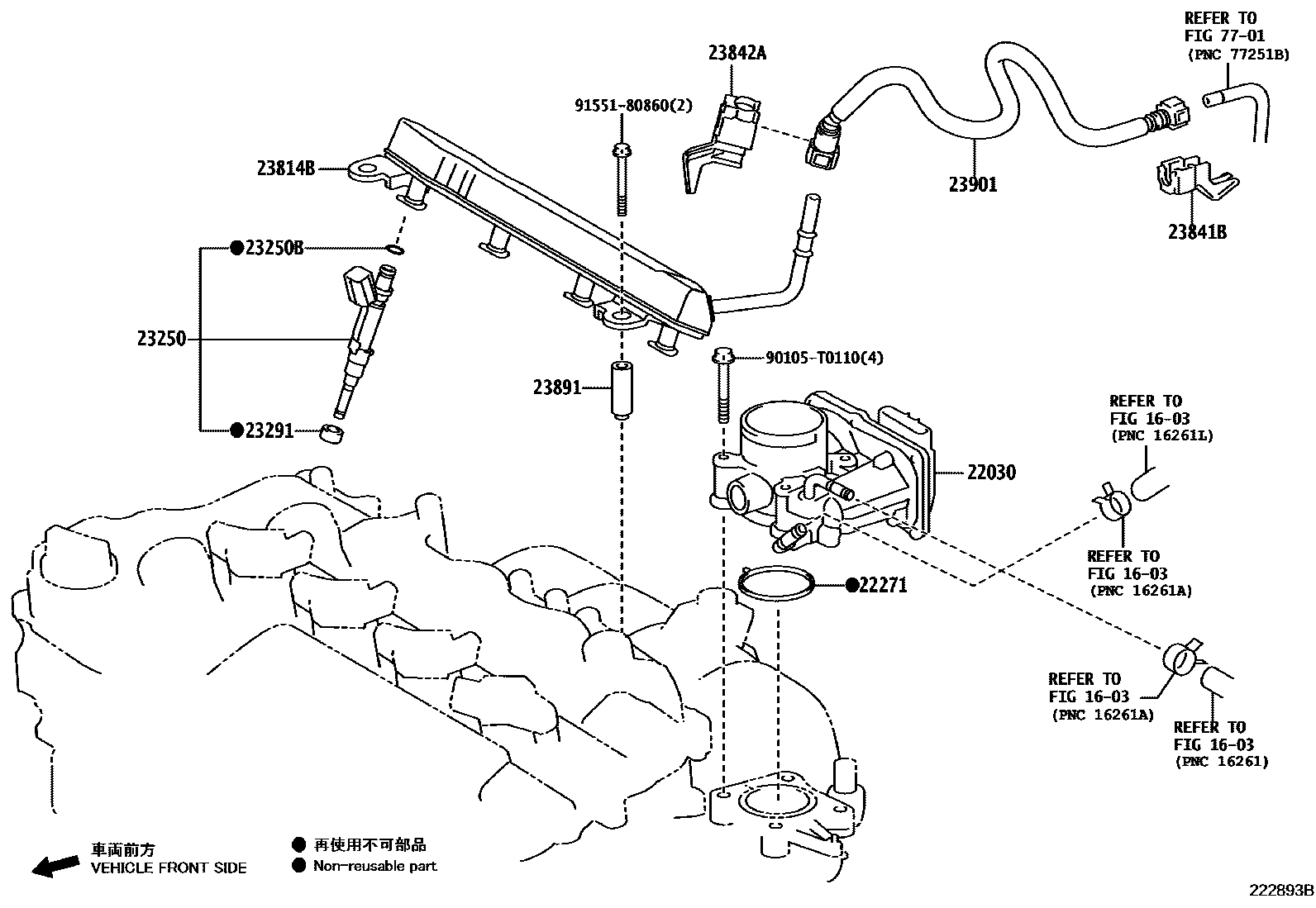

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0M010i1NZFE..NCP150201403-201609

(L)

main22030-0Y020i1NRFE,2NRFE..NSP150,151..GCC,GEN,IDN,PH,TAIW,VN201605-201802

*264,TYPE A:REF ILL.

main22030-0Y080i3NRFE..NSP152201607-201708

main22030-0Y120i3NRFKE..NSP152201911-202302

main22030-0Y140i2NRFE..NSP151..5F..(G,V)..C202104-202106

*264,TYPE B:REF ILL.

main22030-21030i1NZFE..NCP150201403-201609

(J)

main22030-47050i3NRFE..NSP152201310-201607

22271GASKET, THROTTLE BODY

main22271-0Y030i2NRFE..NSP151..CVT..(IDN,MA,VN)..R;1NRFE,2NRFE..NSP150,151..(GCC,IDN,MA)..(D,G,V)201710

*230 OR *432,*264

main22271-0Y040i3NRFE..NSP152201607-201708

main22271-21060i1NZFE,2NZFE..NCP15#201403-201609

main22271-47010i3NRFE..NSP152201310-201606

23250INJECTOR ASSY, FUEL

main23209-09340×4i2NRFE..NSP151..B201904-202011

*419

main23209-09390×4i2NRFE..NSP151..F201710-202101

*230 OR *432

main23209-0M010×4i1NZFE..NCP150201403-201609

(L)

main23209-21040×4i2NZFE..NCP151201403-201606

sub23209-21120

main23209-49205×4i3NRFE..NSP152201310-201708

main23209-49245×4i2NRFE..NSP151..H201806-201910

main23209-49265×4i1NRFBE,2NRFBE..NSP150,151201806-201910

main23209-49275×4i3NRFKE..NSP152201911-202004

main23209-49285×4i3NRFKE..NSP152202004-202302

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i2NZFE..NCP151201403-201606

main90301-07042×4i1NRFE,2NRFE..NSP150,151..GCC,GEN,IDN,PH,TAIW,VN201605-201802

*264

main90301-T0051×4i1NZFE..NCP150201506-201609

(L)

23291INSULATOR, INJECTOR VIBRATION

main23291-0H020×4i1NZFE..NCP150..TAIW201403-201604

(L)

main23291-0Y020×4i1NRFBE,2NR#..NSP150,151..H201806-201910

main23291-0Y050×4i2NRFE..NSP151..TAIW201607-201802

*230 OR *432

main23291-23010×4i2NZFE,3NRFE..NCP151,NSP152201310-201606

main23291-41010×4i1NZFE..NCP150..TAIW201403-201604

(J)

23814BPIPE, FUEL DELIVERY

main23807-0Y010i1NRFBE,2NRFBE..NSP150,151201806-201910

main23814-0Y010i2NRFE..NSP151..TAIW201605-201802

*264

main23814-47050i3NRFE..NSP152201310-201607

sub23814-47051

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0M040i1NZFE,2NRFE..NCP150,NSP151..C201403-201712

main23841-0Y030i1NZFE,2NRFE..NCP150,NSP151..TAIW201409-201802

main23841-0Y050i2NRFE..NSP151..PH,SA;1NRFE..NSP150..CVT..PH201709-202207

main23841-36020i1NRFBE,2NR#..NSP150,151..H201806-201910

main23841-37081i3NRFKE..NSP152201911-202302

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-0M010i1NZFE..NCP150..C201403-201609

main23841-0M030i1NZFE,2NZFE..NCP15#..GCC,GEN,PH,VN201403-201606

TYPE A:REFER ILLUST.

main23841-0Y040i2NRFE..NSP151..PH,SA;1NRFE..NSP150..CVT..PH201709-202207

main23841-0Y060i2NRFE..NSP151..C201610-201712

main23841-36010i1NRFBE,2NR#..NSP150,151..H201806-201910

main23841-37090i1NZFE,2NZFE..NCP15#..GCC,GEN,PH,VN201403-201606

TYPE B:REFER ILLUST.

23891SPACER, FUEL DELIVERY

main23891-21010×2i1NZFE,2NZFE..NCP15#..GCC,GEN,PH,VN201403-201606

main23891-47030×2i3NRFE..NSP152201310-201607

main23891-47040×2i2NRFE..NSP151..TAIW201605-201802

*264

23901TUBE SUB-ASSY, FUEL

main23901-0M040i1NZFE..NCP150..TAIW201403-201604

main23901-0M070i1NZFE..NCP150..C201403-201609

main23901-0Y090i3NRFE..NSP152201709-201910

main23901-0Y150i1NRFE..NSP150..LHD..(GCC,GEN);2NRFE..NSP151..(GCC,GEN,MA,VN)..(A,B)201710-202302

main23901-0Y160i2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C201802

main23901-0Y200i1NRFBE,2NR#..NSP150,151..H201806-201910

main23901-0Y380i3NRFKE..NSP152201911-202302

7701

90105T0110

main90105-T0110

9155180860

main91551-80860

14 parts on this diagram · 6 diagrams in section
