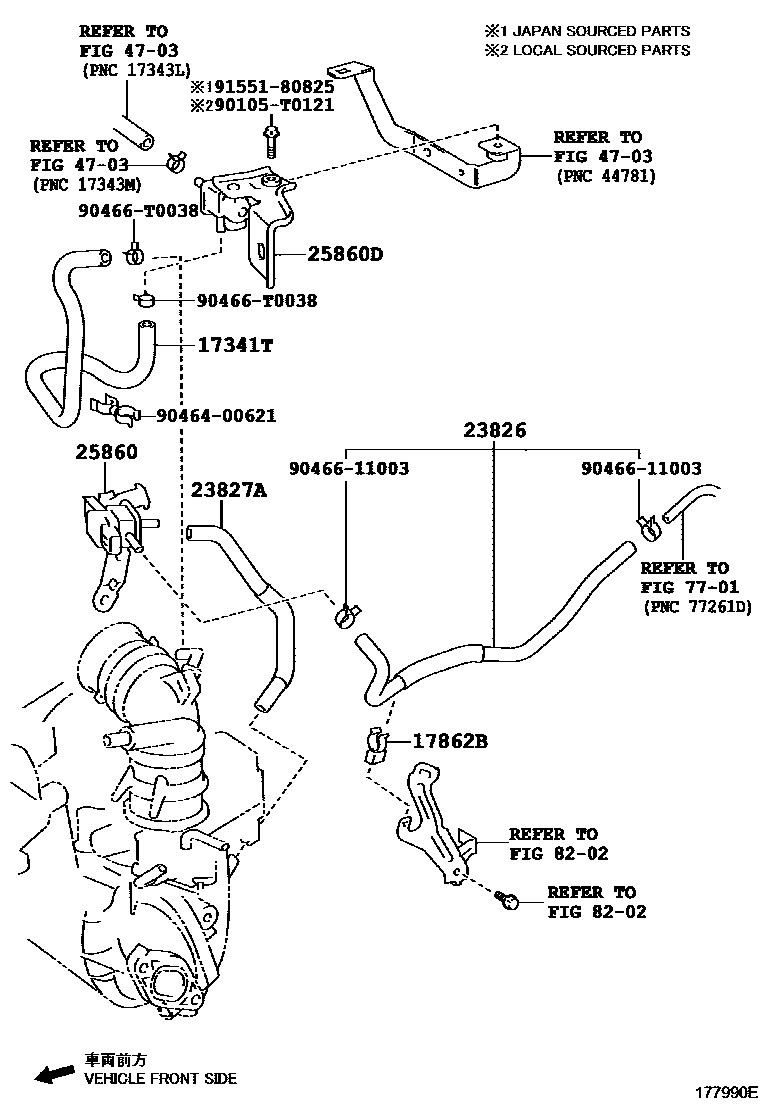

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

17341THOSE, AIR, NO.1

main17341-0M010i1NZFE..NCP150..4FC..C201403-201609

main17341-0Y070i1NRFE,2NRFE..NSP150,151..CVT..(PH,SA)201710-202207

main17341-0Y080i2NRFE..NSP151..CVT..C201610-201710

main17341-0Y081i2NRFE..NSP151..CVT..C201802

main17341-0Y100i2NRFE..NSP151..TAIW201605-201802

main44726-0D011i3NRFE..NSP152201709-201910

17862BCLAMP, HOSE

main23847-0Y030i3NRFE..NSP152201310-201708

main23847-47010i1NRFBE,2NR#..NSP150,151..H201806-201910

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0Y110i3NRFE..NSP152201310-201708

main23826-0Y140i2NRFE..NSP151..CVT..(IDN,MA,VN)..R;1NRFE,2NRFE..NSP150,151..(GCC,IDN,MA)..(D,G,V)201710

main23826-0Y150i2NRFE..NSP151..TAIW201605-201802

main23826-0Y180i1NRFBE,2NR#..NSP150,151..H201806-201910

main23826-0Y220i2NRFE..NSP151..C201610-201712

main23826-0Y380i3NRFKE..NSP152201911-202302

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-0M081i1NZFE,2NZFE..NCP15#..GCC,GEN,PH,VN201403-201606

main23827-0M090i1NZFE..NCP150..TAIW201409-201604

main23827-0M100i1NZFE..NCP150..C201403-201609

main23827-0Y100i3NRFE..NSP152201310-201708

main23827-0Y140i2NRFE..NSP151..R..H;1NRFBE,2NRFBE..NSP150,151;2NRFE..NSP151..(D,G,V)..(B,C,H);1NRFE,2NRFE..NSP150,151..GCC..G;2NRFE..NSP151..CVT..(IDN,MA,VN)..R201710

main23827-0Y150i2NRFE..NSP151..TAIW201605-201802

main23827-0Y200i2NRFE..NSP151..C201610-201712

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0M021i1NZFE..NCP150..TAIW201403-201604

main25860-0Y080i3NRFE..NSP152201310-201708

main25860-0Y090i2NRFE..NSP151..PH,SA;1NRFE..NSP150..CVT..PH201710-202207

25860DVALVE ASSY, VACUUM SWITCHING, NO.2

main25860-0M030i1NZFE,2NZFE..NCP15#..4FC..(GCC,GEN,PH,VN)201403-201606

main25860-0M040i3NRFE..NSP152201709-201910

main25860-0Y040i2NRFE..NSP151..VN..R;1NRFE,2NRFE..NSP150,151..GCC..G;1NRFBE,2NR#..NSP150,151..CVT..(B,C,H)201710

main25860-0Y190i3NRFKE..NSP152201911-202302

4703

7701

8202

90105T0121

main90105-T0121

9046400621

main90464-00621

9046611003

main90466-11003

90466T0038

main90466-T0038

9155180825

main91551-80825

14 parts on this diagram · 8 diagrams in section
