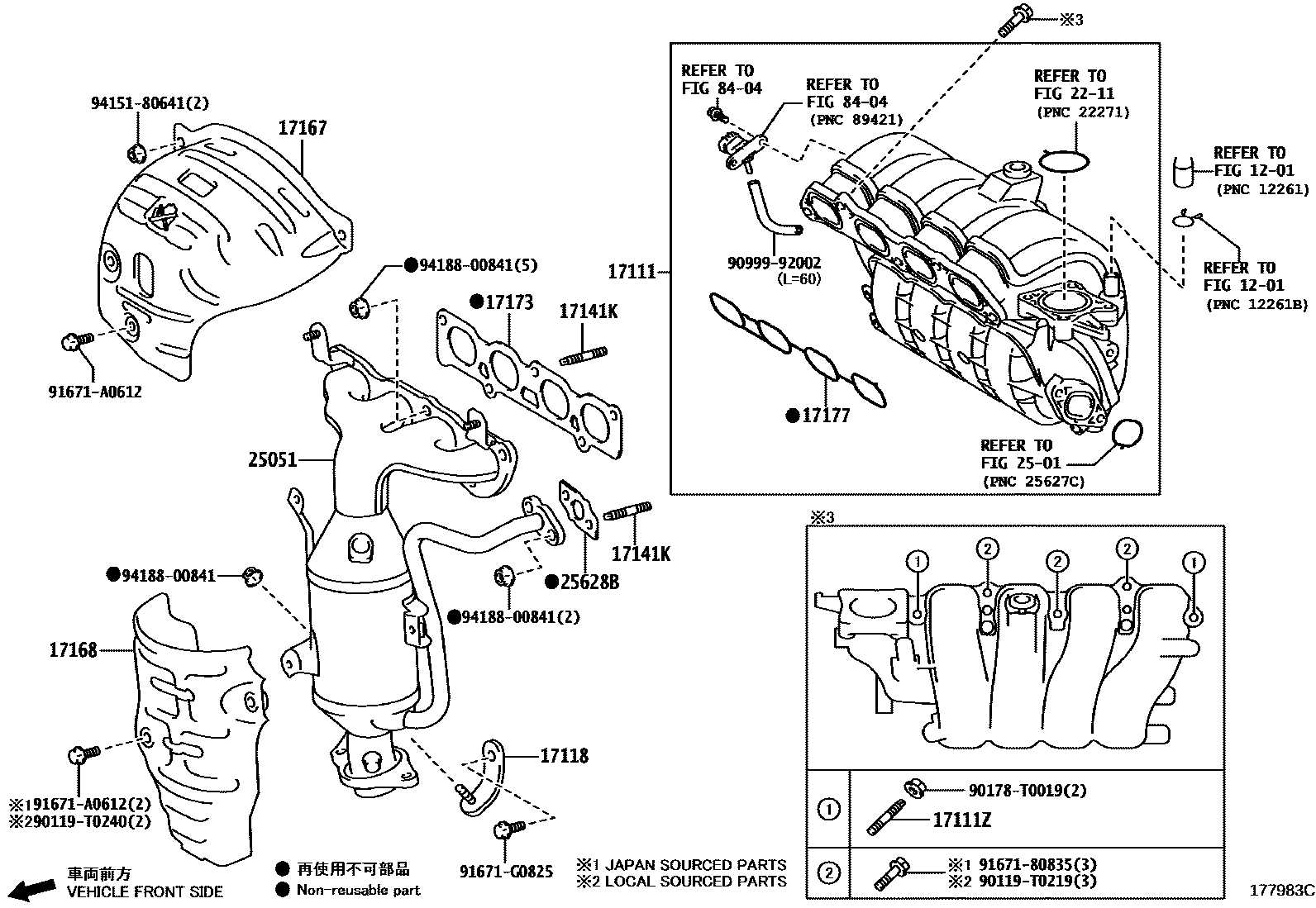

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1201

17111MANIFOLD, INTAKE

main17101-0M030i1NZFE..NCP150201403-201609

(L)

main17101-21080i1NZFE..NCP150201403-201609

(J)

main17101-21090i2NZFE..NCP151201403-201606

main17120-0Y040i3NRFKE..NSP152201911-202302

main17120-0Y050i1NRFE,2NRFE..NSP150,151..GCC,GEN,IDN,PH,TAIW,VN201705-201802

*264,MARK17101-0Y050

main17120-0Y051i2NRFE..NSP151..PH,SA;1NRFE..NSP150..CVT..PH202105-202207

main17120-0Y070i1NRFE,2NRFE..NSP150,151..GCC,GEN,IDN,PH,TAIW,VN201705-201802

*264,MARK17101-0Y060

main17120-0Y071i2NRFE..NSP151..(G,V)..C;2NRFE..NSP151..CVT..R..C202105

*230 OR *432

main17120-0Y100i3NRFE..NSP152201709-201910

main17120-0Y130i1NRFBE,2NR#..NSP150,151..H201806-201910

main17120-47032i3NRFE..NSP152201310-201606

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main9004A-12004×2i2NRFE..NSP151..B201904-202011

*419

main90126-08026×2i1NZFE..NCP150201403-201604

(J)

main90126-08060×2i3NRFE..NSP152201310-201607

main90126-T0003×2i1NZFE..NCP150201403-201609

(L)

main90126-T0019×2i2NRFE..NSP151..F201710-202101

*230 OR *432,*264

17118STAY, MANIFOLD

main17118-0Y031i2NRFE..NSP151..CVT..(IDN,MA,VN)..R;1NRFE,2NRFE..NSP150,151..(GCC,IDN,MA)..(D,G,V)201710

*264

main17118-0Y061i2NRFE..NSP151..F201710-202101

*230 OR *432

main17118-47010i3NRFE..NSP152201310-201607

sub17118-47011

17141MANIFOLD, EXHAUST

main17141-0M020i1NZFE..NCP150..C201403-201609

(L)

main17141-21130i1NZFE..NCP150..GCC,GEN,PH201403-201606

(J)

main17141-21140i2NZFE..NCP151201403-201606

main17141-21210i1NZFE..NCP150..TAIW201409-201604

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-08037×2i1NZFE,2NZFE..NCP15#201403-201609

main90126-08063×5i3NRFKE..NSP152;1NRFBE,2NR#..NSP150,151..H201806-202302

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-0M020i1NZFE..NCP150201403-201609

(L)

main17167-0Y020i1NRFE,2NRFE..NSP150,151..LHD..(GCC,GEN)..R;1NRFE,2NRFE..NSP150,151..CVT..(GEN,VN)..(D,G)..A201710-202302

*264

main17167-0Y040i1NRFBE,2NR#..NSP150,151..H201806-201910

main17167-0Y050i1NRFE,2NRFE..NSP150,151..LHD..(GCC,GEN)..R;1NRFE,2NRFE..NSP150,151..CVT..(GEN,VN)..(D,G)..A201710-202302

*230 OR *432

main17167-0Y060i3NR#..NSP152201709-202112

main17167-21110i1NZFE..NCP150201403-201604

(J)

main17167-21130i2NZFE..NCP151201403-201606

main17167-47011i3NRFKE..NSP152202112-202302

(J)

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-0Y020i1NRFE,2NRFE..NSP150,151..LHD..(GCC,GEN)..R;1NRFE,2NRFE..NSP150,151..CVT..(GEN,VN)..(D,G)..A201710-202302

*264

main17168-0Y040i1NRFBE,2NR#..NSP150,151..H201806-201910

main17168-0Y050i1NRFE..NSP150..RHD;1NRFE,2NRFE..NSP150,151..5F..(IDN,PH)..R201710-202108

*230 OR *432

main17168-0Y060i3NRFE..NSP152201709-201910

main17168-0Y100i3NRFKE..NSP152201911-202302

main17168-47030i3NRFE..NSP152201310-201607

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0M010i1NZFE..NCP150..C201403-201609

main17173-0Y030i2NRFE..NSP151..CVT..(IDN,MA,VN)..R;1NRFE,2NRFE..NSP150,151..(GCC,IDN,MA)..(D,G,V)201710

*264

main17173-0Y050i1NRFBE,2NR#..NSP150,151..H201806-201910

main17173-0Y060i1NRFE,2NRFE..NSP150,151..LHD..(GCC,GEN)..R;1NRFE,2NRFE..NSP150,151..CVT..(GEN,VN)..(D,G)..A201710-202302

*230 OR *432

main17173-21020i1NZFE..NCP150..TAIW201409-201604

(J)

main17173-47021i3NR#..NSP152201709-202302

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-0Y030i3NR#..NSP152201709-202302

main17177-21030i1NZFE,2NZFE..NCP15#201403-201609

main17177-47011i3NRFE..NSP152201310-201606

main17177-47060i1NRFBE,2NR#..NSP150,151..H201806-201910

2211

2501

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-0Y050i2NRFE..NSP151..C201607-201712

*264

main25051-0Y060i2NRFE..NSP151..TAIW201605-201802

*264

main25051-0Y110i2NRFE..NSP151..PH,SA;1NRFE..NSP150..CVT..PH201710-202207

*230 OR *432

main25051-0Y150i2NRFE..NSP151..F201804-202101

*230 OR *432

main25051-0Y210i2NRFE..NSP151..H201806-201910

main25051-0Y220i1NRFBE,2NRFBE..NSP150,151201806-201910

main25051-0Y250i3NRFKE..NSP152202208-202302

main25051-47100i3NRFE..NSP152201310-201601

main25051-47101i3NRFE..NSP152201709-201910

main25051-47240i3NRFKE..NSP152201911-202207

25628BGASKET, EGR INLET

main25628-47010i3NRFE..NSP152201310-201708

8404

90119T0219

main90119-T0219

90119T0240

main90119-T0240

90178T0019

main90178-T0019

9099992002

main90999-92002

9167180835

main91671-80835

91671A0612

main91671-A0612

91671G0825

main91671-G0825

9415180641

main94151-80641

9418800841

main94188-00841

24 parts on this diagram · 6 diagrams in section
