ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-0D200iNCP91..RHD200601-201307

main86101-0D210iNCP91..TAIW200611-200910

main86101-0D300iNCP91..PH200701-201307

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0D190iNCP91..IDN,MA,PH,TH200601-200910

86299ACLIP, RADIO TO ANTENNA WIRE

main86299-52010iNCP91200601-200910

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-52370iNCP91..TAIW200601-200910

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-48040iNCP91200601-200910

86396NUT, ANTENNA

main86396-0D020iNCP91..IDN,MA,PH,TH200609-200910

main86396-20040iNCP91200601-200609

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

9011906915

main90119-06915

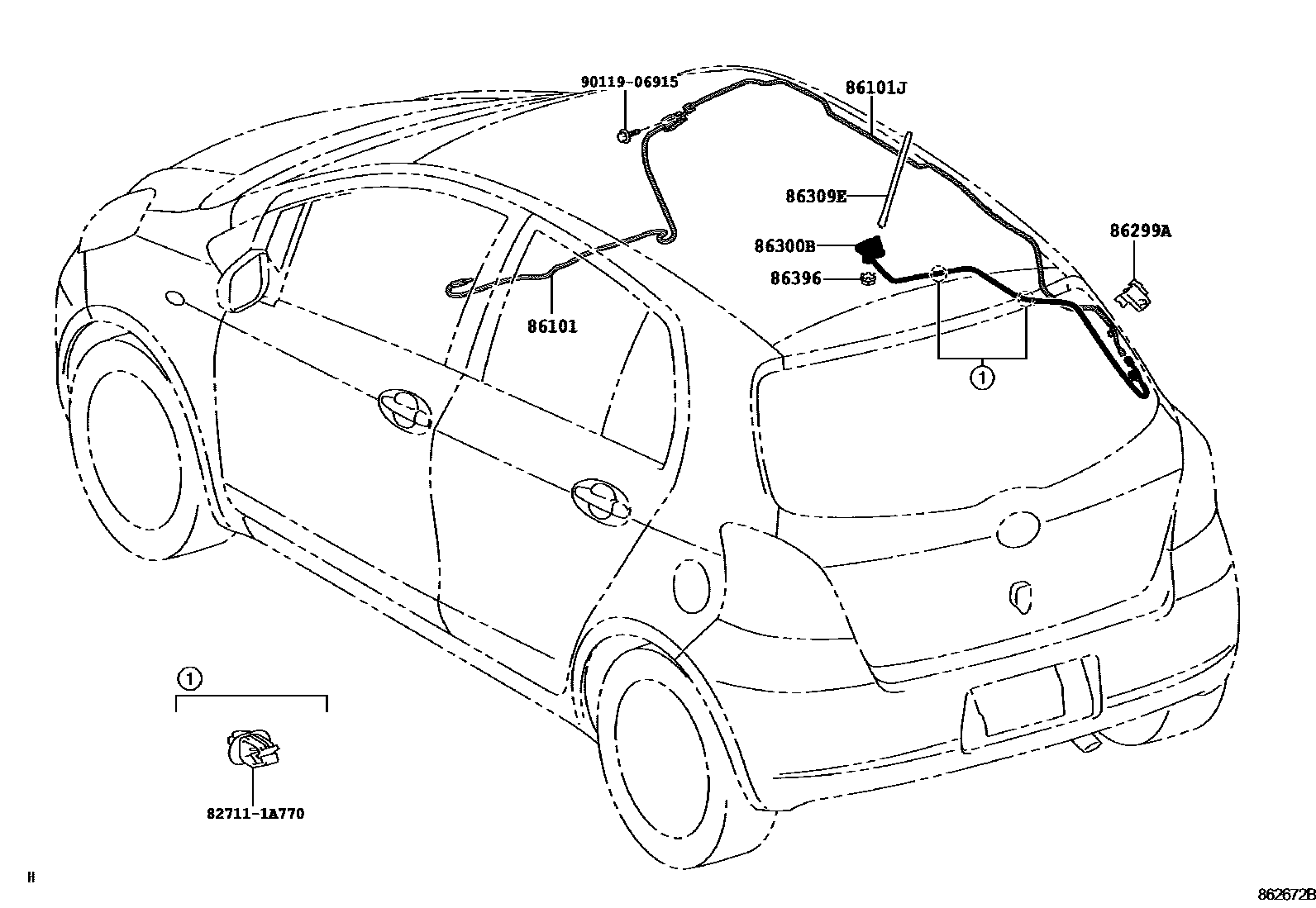

8 parts on this diagram · 1 diagram in section
