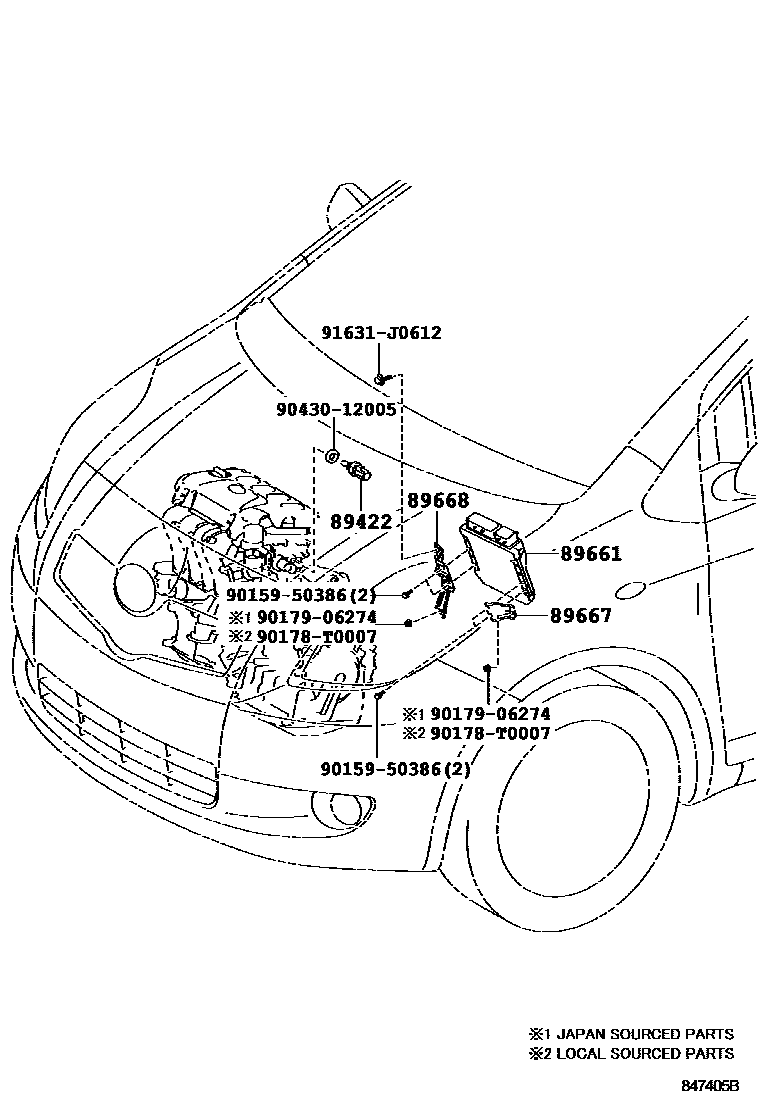

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNCP91200903

89661COMPUTER, ENGINE CONTROL

main89661-0D680iNCP91..MTM200601-200807

main89661-0D681iNCP91..MTM200808-200903

main89661-0D682iNCP91..MTM201112-201307

main89661-0D690iNCP91..ATM..(E,G,S)..(IDN,MA,PH,TH)200601-200807

main89661-0D691iNCP91..ATM..(E,G,S)..(IDN,MA,PH,TH)200903-201111

main89661-0D692iNCP91..ATM..(E,G,S)..(IDN,MA,PH,TH)201112-201307

main89661-0D710iNCP91..E..TAIW200611-200709

main89661-0D840iNCP91..(G,S)..TAIW200611-200709

main89661-0DA80iNCP91..E..TAIW200709-200807

main89661-0DA81iNCP91..E..TAIW200808-200910

main89661-0DA90iNCP91..(G,S)..TAIW200709-200807

main89661-0DA91iNCP91..(G,S)..TAIW200808-200910

main89661-0DC40iNCP91..ATM..J200712-200807

main89661-0DC41iNCP91..ATM..J200903-201111

main89661-0DC42iNCP91..ATM..J201112-201307

main89661-0DC60iNCP91..TAIW200910-201309

main89661-0DN80iNCP91201309

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-0D060iNCP91..TAIW200910

main89667-52190iNCP91..RHD200903-201307

main89667-52200iNCP91..PH200701-200903

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-0D060iNCP91..TAIW200910

main89668-52210iNCP91..RHD200601-200903

main89668-52220iNCP91..PH200903-201307

9015950386

main90159-50386

90178T0007

main90178-T0007

9017906274

main90179-06274

9043012005

main90430-12005

91631J0612

main91631-J0612

9 parts on this diagram · 2 diagrams in section
