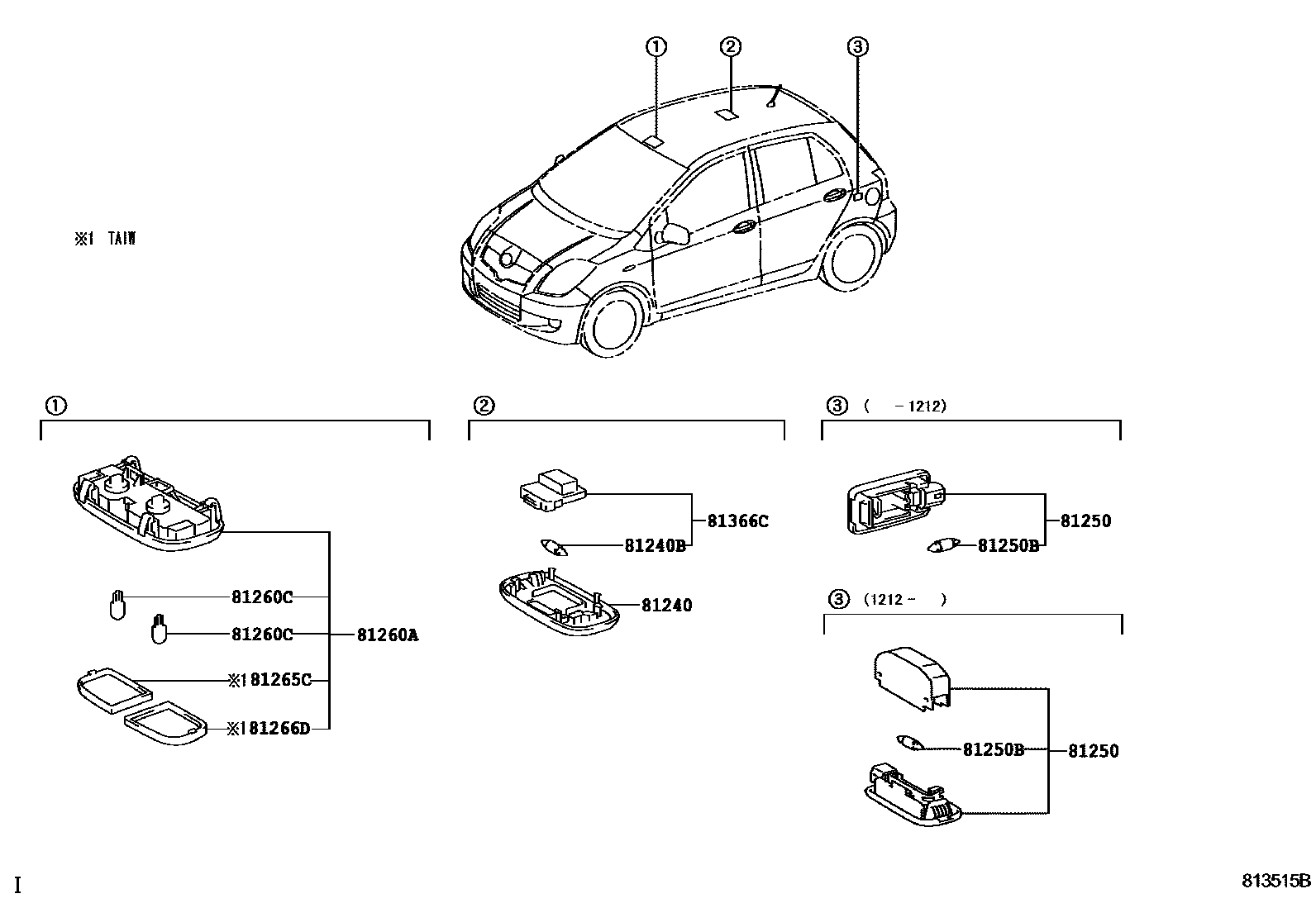

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-52040-B0iNCP91..E,G,J200601-200910

GRAY,TRIM1#

main81240-52040-C0iNCP91..S200903-201409

BLACK,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iNCP91200903

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81250-05040iNCP91201010-201212

sub81250-02030

main81330-05021iNCP91..IDN,MA,PH,TH200601-200903

main81330-05050iNCP91201212

sub81330-02060

81250BBULB, ROOM LAMP, NO.2

main90981-WE002iNCP91..IDN,MA,PH,TH200601-200903

12V 5W

81260ALAMP ASSY, MAP

main81260-0D060-B0iNCP91..(E,G,J)..(IDN,MA,PH,TH)200601-200903

GRAY,TRIM1#

main81260-0D060-C0iNCP91..RHD..S200903-201307

BLACK,TRIM1#

main81260-0D080-B0iNCP91..(E,G)..TAIW200910-201409

GRAY,TRIM1#,2#

main81260-0D080-C0iNCP91..S..TAIW200611-200910

BLACK,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-11062×2iNCP91..TAIW200601-200910

12V 8W

81265CLENS, MAP LAMP, NO.1

main81265-8C000iNCP91..TAIW200611-200910

81266DLENS, MAP LAMP, NO.2

main81266-8C000iNCP91..TAIW200611-200910

81366CBASE, ROOM LAMP SWITCH

main81366-68010iNCP91200903-201409

9 parts on this diagram · 1 diagram in section
