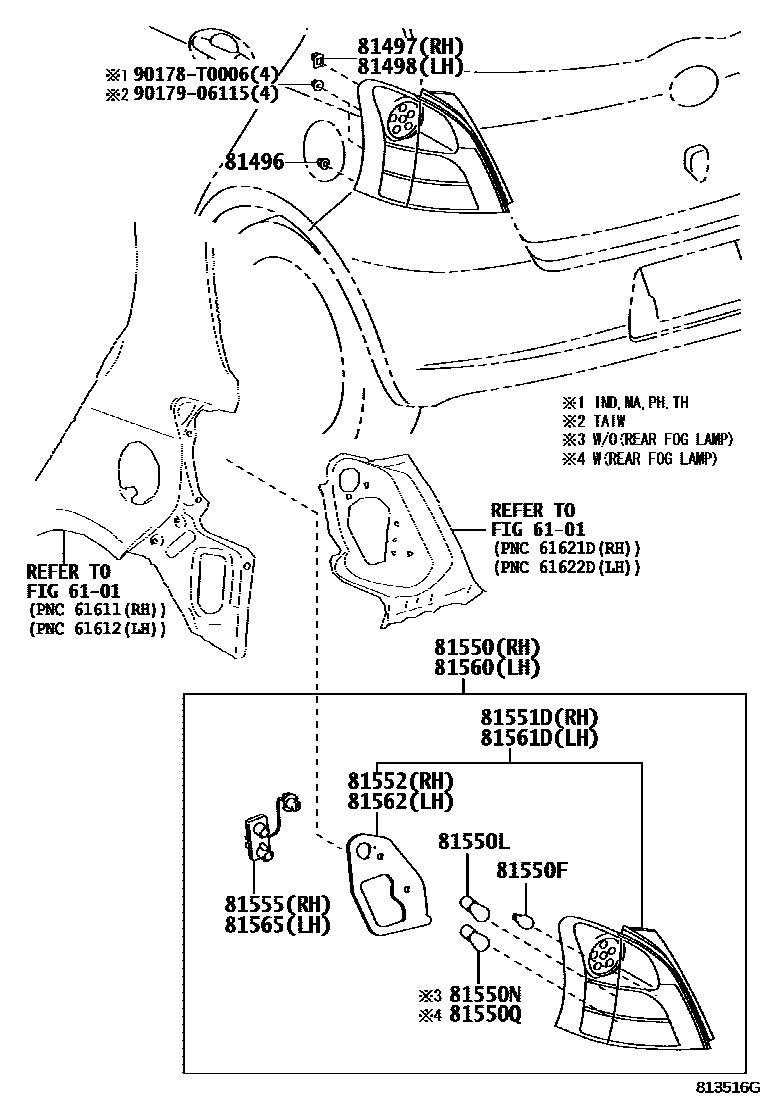

REAR COMBINATION LAMP

0001 1 0004 1 0005 1 0007 1BULB TYPE 0008 1LED TYPE 0009 1

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iNCP91¥70200601-200910

81497COVER, REAR COMBINATION LAMP, RH

main81497-52020iNCP91..IDN,MA,PH,TH¥120200601-200910

81498COVER, REAR COMBINATION LAMP, LH

main81497-52020iNCP91..TAIW¥120200601-200910

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0D180iNCP91..IDN,MA,PH200601-200903

SINGAPORE SPEC

main81550-0D190iNCP91..TH200601-200903

main81550-0D210iNCP91..TAIW200611-200910

main81550-0D270iNCP91..TH200903-201202

main81550-0D280iNCP91..ATM..PH201202-201307

E STANDARD PACKAGE(VIETNAM)

main81550-0D280iNCP91..IDN,MA,PH200903-201202

SINGAPORE SPEC

main81550-0D290iNCP91..S..TAIW200910-201204

81550FBULB, TAILLAMP

main99132-12050iNCP91..TAIW¥110200601-201204

81550LBULB, REAR TURN SIGNAL LAMP

main90981-13043iNCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)¥220201202

main90981-15009iNCP91..IDN,MA,PH,TH¥350200601-200910

main99132-11210iNCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)¥170200903-201204

81550NBULB, BACK UP LAMP

main90981-13043iNCP91..S..TAIW¥220201202

main99132-11210iNCP91..S..TAIW¥170200601-201204

main99132-11210iNCP91..PH,TH¥170200601-201202

SINGAPORE SPEC

main99132-11210iNCP91..J..TH¥170201202-201307

E STANDARD PACKAGE(VIETNAM)

81550QBULB, REAR FOG LAMP, NO.1

main99132-11210iNCP91..PH,TH¥170200601-201204

81551LENS, REAR COMBINATION LAMP, RH

main81551-52570iNCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)¥23,300201202

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0D180iNCP91..IDN,MA,PH200601-200903

SINGAPORE SPEC

main81551-0D190iNCP91..TH200601-200903

main81551-0D270iNCP91..TH200903-201202

main81551-0D280iNCP91..(E,G)..TH200903-201202

SINGAPORE SPEC

main81551-0D280iNCP91..J..TH201202-201307

E STANDARD PACKAGE(VIETNAM)

main81551-0D290iNCP91..(E,G)..TAIW200910-201204

main81551-8C017iNCP91..TAIW200611-200910

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-0D180iNCP91..IDN,MA,PH,TH200601-201307

main81552-8C006iNCP91..TAIW200611-200910

main81554-0D290iNCP91..S..TAIW200910-201204

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0D180iNCP91..IDN,MA,PH200601-200903

SINGAPORE SPEC

main81555-0D190iNCP91..TH200601-200903

main81555-0D270iNCP91..TH200903-201202

main81555-0D280iNCP91..ATM..PH201202-201307

E STANDARD PACKAGE(VIETNAM)

main81555-0D280iNCP91..IDN,MA,PH200903-201202

SINGAPORE SPEC

main81555-0D290iNCP91..(E,G)..TAIW200910-201204

main81555-52570iNCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)¥2,470201202

main81555-8C010iNCP91..TAIW200611-200910

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0D180iNCP91..RHD200601-200903

main81560-0D200iNCP91..TAIW200611-200910

main81560-0D210iNCP91..PH200701-200903

main81560-0D270iNCP91..PH200903-201202

main81560-0D280iNCP91..J..TH200903-201307

main81560-0D300iNCP91..(E,G)..TAIW200910-201204

81561LENS, REAR COMBINATION LAMP, LH

main81561-52500iNCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)¥23,300201202

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0D180iNCP91..RHD200601-200903

main81561-0D210iNCP91..PH200701-200903

main81561-0D270iNCP91..PH200903-201202

main81561-0D280iNCP91..J..TH200903-201307

main81561-0D300iNCP91..(E,G)..TAIW200910-201204

main81561-8C017iNCP91..TAIW200611-200910

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-8C007iNCP91..TAIW200611-200910

main81562-0D180iNCP91..J..TH200601-201307

main81564-0D300iNCP91..(E,G)..TAIW200910-201204

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0D180iNCP91..RHD200601-200903

main81555-0D190iNCP91..PH200701-200903

main81555-0D270iNCP91..PH200903-201202

main81555-0D280iNCP91..J..IDN;NCP91..RHD..(E,G,S)200903-201307

main81555-52570iNCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)¥2,470201202

main81555-8C010iNCP91..TAIW200611-200910

main81565-0D300iNCP91..(E,G)..TAIW200910-201204

90178T0006

main90178-T0006¥110

9017906115

main90179-06115¥120

20 parts on this diagram · 6 diagrams in section
