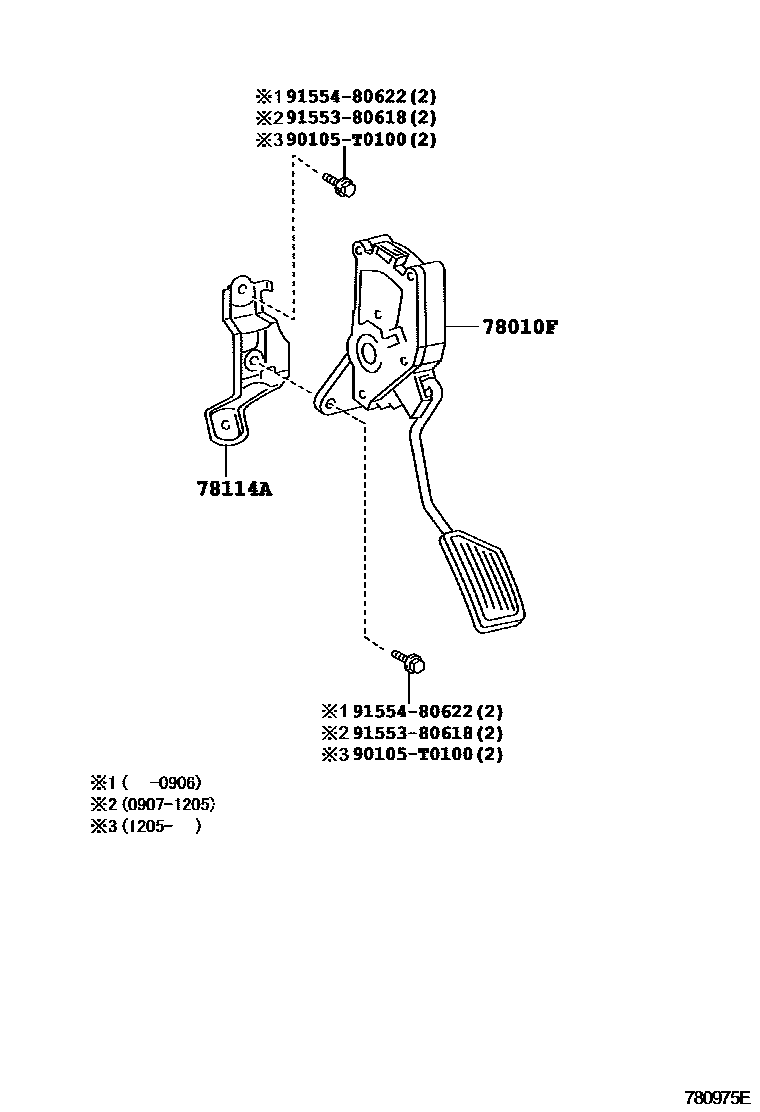

ACCELERATOR LINK

0001 1 0002 1

78010FPEDAL ASSY, ACCELERATOR

main78110-0D070iNCP91..RHD200701-201104

sub78110-0D071

main78110-0D071iNCP91..RHD201105-201307

sub78110-0D240

main78110-0D080iNCP91..PH200701-201107

sub78110-0D081

main78110-0D081iNCP91..PH201108-201307

sub78110-0D250

main78110-52010iNCP91..RHD200601-200612

sub78110-52011

main78110-52020iNCP91..TAIW200611-201111

sub78110-52021

main78110-52021iNCP91..TAIW201112

sub78110-52260

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-0D040iNCP91..RHD200601-201307

90105T0100

main90105-T0100

9155380618

main91553-80618

9155480622

main91554-80622

5 parts on this diagram · 2 diagrams in section
