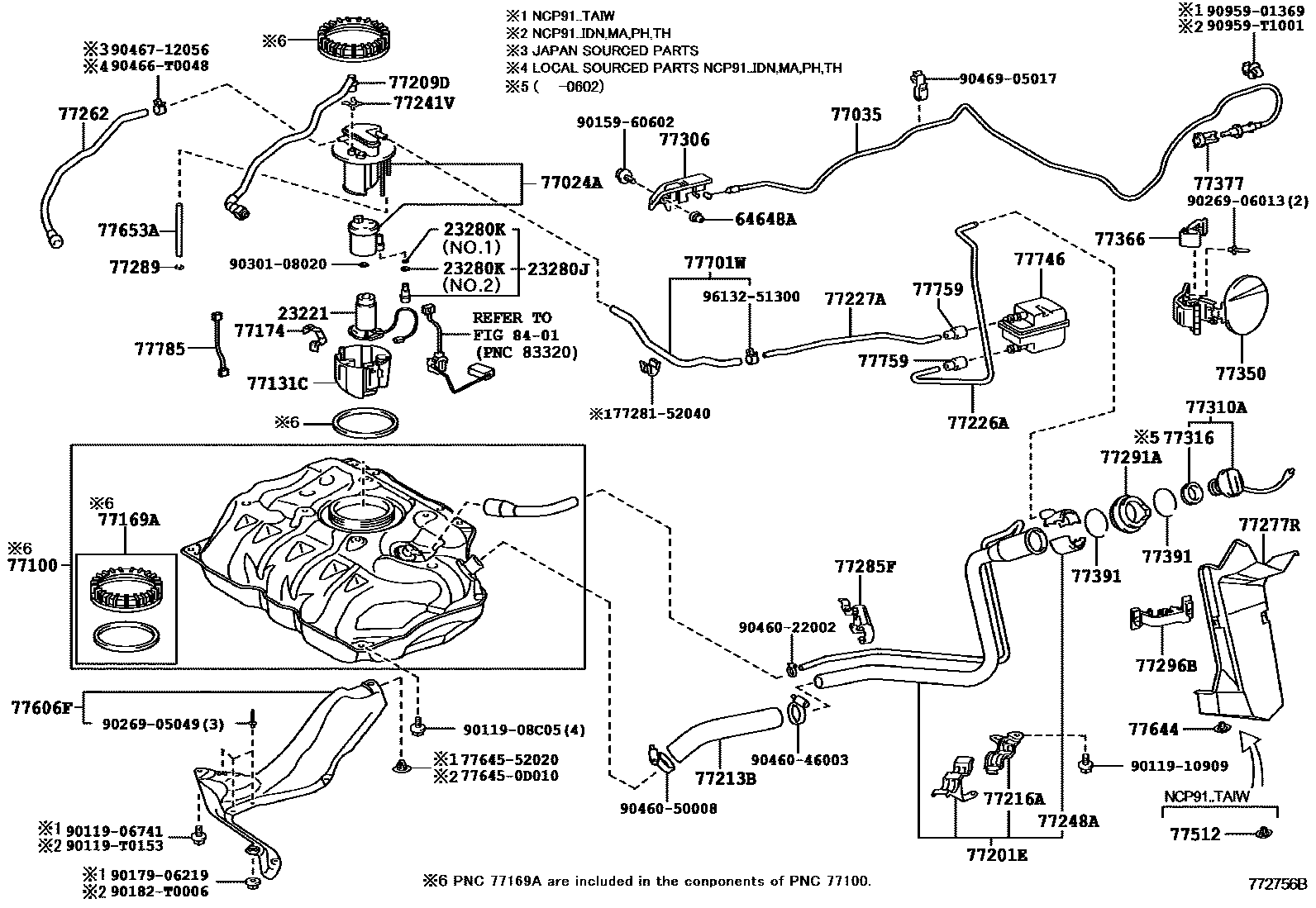

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TUBE

23221PUMP, FUEL

main23220-0M030i1NZFE..NCP91..IDN,MA,PH,TH200701-201307

main23220-21131i1NZFE..NCP91200601-200612

sub23220-21132

main23220-21132i1NZFE..NCP91..TAIW200701-200910

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i1NZFE..NCP91200601-200707

main23280-21020i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200708-200910

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i1NZFE..NCP91..IDN,MA,PH,TH200601-200910

NO.1

main90301-15024i1NZFE..NCP91200601-200910

NO.2

64648AGROMMET, LUGGAGE DOOR LOCK OPENER

main64648-32020iNCP91..TAIW200601-200910

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0D060iNCP91..IDN,MA,PH,TH200701-200703

sub77024-0D061

main77024-0D061iNCP91..IDN,MA,PH,TH200704-200910

sub77024-0D062

main77024-0D062iNCP91..IDN,MA,PH,TH200910-201307

main77024-52120iNCP91..RHD200601-200703

sub77024-52121

main77024-52121iNCP91..TAIW200704-200909

sub77024-52122

main77024-52122iNCP91..TAIW200909-200910

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-0D110iNCP91..RHD200601-201307

main77035-0D120iNCP91..TAIW200611-200910

main77035-0D130iNCP91..PH200701-201307

77100TANK ASSY, FUEL

main77001-0D090iNCP91..IDN,MA,PH,TH200701-201307

main77001-52201iNCP91..TAIW200601-201204

main77001-52490iNCP91..TAIW201204

77131CSUB-TANK, FUEL, NO.1

main77131-0D070iNCP91..IDN,MA,PH,TH200701-200704

sub77131-0D071

main77131-0D071iNCP91..IDN,MA,PH,TH200705-201307

main77131-52071iNCP91..RHD200601-201310

sub77131-52110

main77131-52110iNCP91201311

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0D050iNCP91..IDN,MA,PH,TH200701-201307

main77169-52040iNCP91..RHD200601-200910

77174SUPPORT, FUEL SUCTION, NO.1

main77174-0D030iNCP91..IDN,MA,PH,TH200701-201307

main77174-52050iNCP91..TAIW200601-200910

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-0D100iNCP91..IDN,MA,PH,TH200601-201307

main77201-0D110iNCP91..TAIW200611-201111

main77201-0D111iNCP91..TAIW201111

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0D040iNCP91..IDN,MA,PH,TH200701-201307

main77209-52090iNCP91..RHD200601-200801

sub77209-52091

main77209-52091iNCP91..TAIW200802-200910

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-0D060iNCP91..IDN,MA,PH,TH200601-201307

main77213-0D070iNCP91..TAIW200611-200910

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-0D050iNCP91..IDN,MA,PH,TH200601-201307

main77216-0D060iNCP91..TAIW200611-201111

main77216-0D061iNCP91..TAIW201111

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-52050iNCP91..TAIW200611-201111

main77226-52051iNCP91..TAIW201111

main77226-52110iNCP91..IDN,MA,PH,TH200601-201307

77227ATUBE, FUEL TANK EVAPORATION VENT

main77227-52020iNCP91..IDN,MA,PH,TH200601-201307

77241VCLIP, TUBE JOINT

main77241-33011iNCP91..TAIW200701-200903

main77241-60320iNCP91..TAIW200601-201002

77248AHOLDER, FUEL TANK FILLER PIPE COVER

main77248-20080iNCP91..TAIW200611-201111

main77248-33040iNCP91..IDN,MA,PH,TH200601-201307

77262TUBE, FUEL EMISSION, NO.2

main77028-0D020iNCP91..IDN,MA,PH,TH200701-201307

main77028-52010iNCP91..RHD200601-201011

sub77028-52020

main77028-52020iNCP91..TAIW201012

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-52030iNCP91200601-200710

main77277-52031iNCP91..IDN,MA,PH,TH200711-200910

77285FCLAMP, FUEL TUBE, NO.1

main77285-0D040iNCP91..IDN,MA,PH,TH200601-201307

main77285-0D060iNCP91..TAIW200611-200910

77289HOLDER, FUEL TANK PIPE SETTING

main77289-06070iNCP91..IDN,MA,PH,TH200705-201307

main77289-0D060iNCP91..IDN,MA,PH,TH200701-200704

sub77289-06070

main77289-52110iNCP91..TAIW200601-200910

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0D070iNCP91..TAIW200601-200910

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-0D010iNCP91..IDN,MA,PH,TH200601-201307

main77296-0D020iNCP91..TAIW200611-200910

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-0D040iNCP91..TAIW200611-200910

main77306-52030iNCP91..RHD200601-201307

main77306-52040iNCP91..PH200701-201307

77310ACAP ASSY, FUEL TANK

main77300-52030iNCP91..TAIW200601-200910

77316GASKET, FUEL TANK CAP

main77316-52020iNCP91200601-200602

sub77316-52040

main77316-52040iNCP91200903

77350LID ASSY, FUEL FILLER OPENING

main77350-0D040iNCP91..ATM;NCP91..MTM..(E,J)200601-201409

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-52010iNCP91..IDN,MA,PH,TH200601-200910

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-0D030iNCP91..IDN,MA,PH,TH200601-200910

77391RING, FUEL INLET BOX

main77391-02020iNCP91200601-200903

THAILAND PRODUCT

main77391-02020iNCP91200903

main77391-12020iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

EXCEPT THAILAND

77512BRACKET, FUEL TANK, REAR

main77512-0D020iNCP91..TAIW200611-200910

77606FCASE SUB-ASSY, FUEL TANK COVER VENT

main77606-52060iNCP91200601-200910

77644BOLT, FUEL TANK

main77644-0K010iNCP91..IDN,MA,PH,TH200601-201307

77653ACUSHION, FUEL TANK, NO.3

main77652-0D020iNCP91..IDN,MA,PH,TH200701-201307

main77652-52040iNCP91..RHD200601-200910

77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1

main77701-0D020iNCP91..IDN,MA,PH,TH200701-201307

main77701-52010iNCP91..TAIW200601-200910

77746FILTER, CHARCOAL CANISTER, NO.2

main77746-33010iNCP91..IDN,MA,PH,TH200601-201307

77759HOSE, CHARCOAL CANISTER

main77759-52010iNCP91..IDN,MA,PH,TH200601-201307

77785HARNESS, FUEL PUMP

main77785-0D040iNCP91..IDN,MA,PH,TH200701-201301

sub77785-0D041

main77785-0D041iNCP91..IDN,MA,PH,TH201302-201307

main77785-52060iNCP91..RHD200601-200910

8401

7728152040BRACKET, FUEL MAIN TUBE, NO.1

main77281-52040

776450D010PACKING, FUEL TANK BRACKET UPPER, B

main77645-0D010

7764552020PACKING, FUEL TANK BRACKET UPPER, B

main77645-52020

9011906741

main90119-06741

9011908C05

main90119-08C05

9011910909

main90119-10909

90119T0153

main90119-T0153

9015960602

main90159-60602

9017906219

main90179-06219

90182T0006

main90182-T0006

9026905049

main90269-05049

9026906013

main90269-06013

9030108020

main90301-08020

9046022002

main90460-22002

9046046003

main90460-46003

9046050008

main90460-50008

90466T0048

main90466-T0048

9046712056

main90467-12056

9046905017

main90469-05017

9095901369

main90959-01369

90959T1001

main90959-T1001

9613251300

main96132-51300

62 parts on this diagram · 5 diagrams in section
