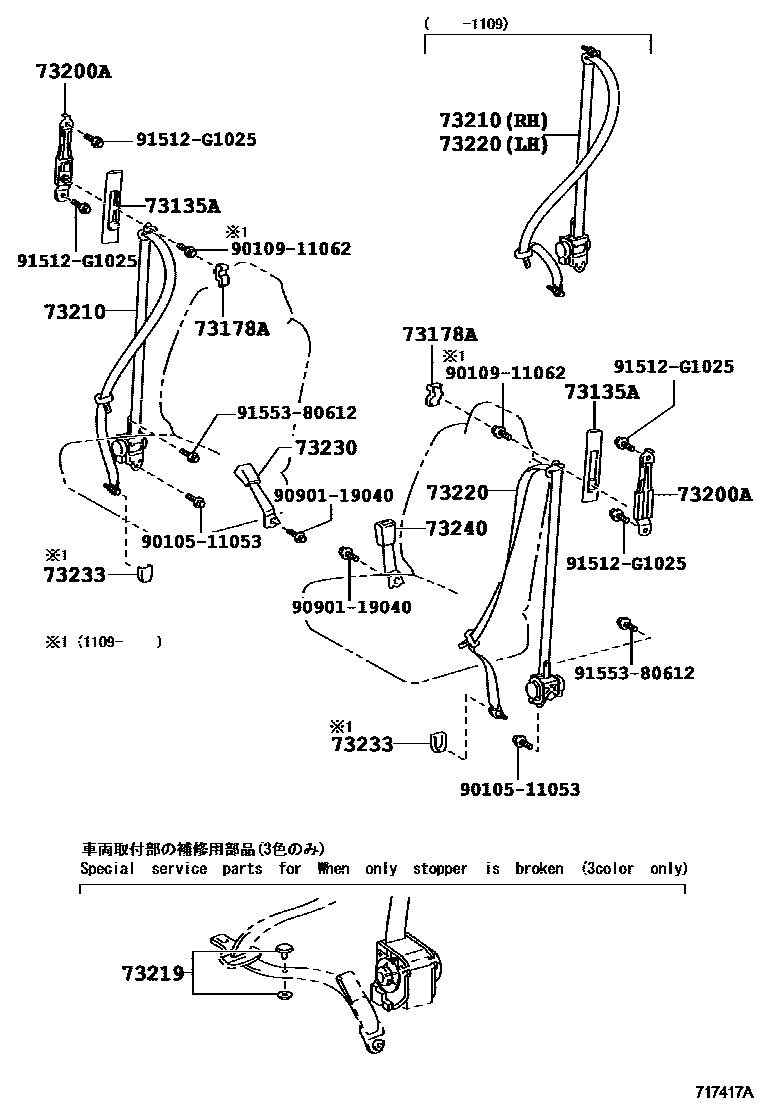

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1FRONT SEAT 0003 1REAR SEAT

73135ACOVER, SHOULDER BELT ANCHOR, RH

main73135-0D040-B0×2iNCP91..RHD..S200601-200903

DK.GRAY,TRIM1#

main73135-0D040-B1×2iNCP91..(E,G,J)..(IDN,MA,PH,TH)200903-201307

GRAY,TRIM1#

main73135-52020-B0×2iNCP91..(E,G)..TAIW200611-200910

GRAY,TRIM1#

main73135-52020-B1×2iNCP91..S..TAIW200611-200910

DK.GRAY,TRIM1#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-0D060-B0×2iNCP91..RHD..S200903-201307

DK.GRAY,TRIM1#

main73178-0D060-B1×2iNCP91..(E,G,J)..(IDN,MA,PH,TH)200903-201307

GRAY,TRIM1#

main73178-52020-B0×2iNCP91..S..TAIW200910-201409

GRAY,TRIM2#

main73178-52020-B1×2iNCP91..S..TAIW200611-200910

DK.GRAY,TRIM1#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0D050-B0×2iNCP91..RHD..S200601-200903

DK.GRAY,TRIM1#

main73200-0D050-B1×2iNCP91..(E,G,J)..(IDN,MA,PH,TH)200601-200903

GRAY,TRIM1#

main73200-52050-B0×2iNCP91..S..TAIW200611-200910

DK.GRAY,TRIM1#

main73200-52050-B1×2iNCP91..S..TAIW200910-201409

GRAY,TRIM2#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0D210-C0iNCP91..RHD..S200903-201102

BLACK,TRIM1#

sub90109-11062

main73210-0D210-C1iNCP91..(E,G)..(IDN,MA,PH,TH)200601-200903

BLACK,TRIM1#

sub90109-11062

main73210-0D211-C0iNCP91..RHD..S201102-201111

BLACK,TRIM1#

main73210-0D211-C1iNCP91..(E,G)..(IDN,MA,PH,TH)201102-201111

BLACK,TRIM1#

main73210-0D213-C0iNCP91..RHD..S201202-201307

BLACK/DK.GRAY,TRIM1#

main73210-0D213-C1iNCP91..J201209-201307

BLACK/GRAY,TRIM1#

main73210-0D260-C0iNCP91..J200903-201102

BLACK,TRIM1#

sub90109-11062

main73210-0D261-C0iNCP91..J201102-201111

BLACK,TRIM1#

main73210-0D263-C0iNCP91..J201202-201209

BLACK,TRIM1#

main73210-52640-C0iNCP91..S..TAIW200611-200910

BLACK,TRIM1#

sub90109-11062

main73210-52640-C1iNCP91..(E,G)..TAIW200611-200910

BLACK,TRIM1#

sub90109-11062

main73210-52641-C0iNCP91..S..TAIW201109-201203

BLACK,TRIM1#

main73210-52641-C1iNCP91..(E,G)..TAIW201109-201203

BLACK,TRIM2#

main73210-52642-C0iNCP91..S..TAIW201204-201409

BLACK,TRIM1#

main73210-52642-C1iNCP91..TAIW201204-201409

BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-33010iNCP91200903

BLACK

main73219-33020iNCP91200903

GRAY

main73219-33030iNCP91200903

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0D190-C0iNCP91..RHD..S200903-201102

BLACK,TRIM1#

sub90109-11062

main73220-0D190-C1iNCP91..(E,G)..(IDN,MA,PH,TH)200601-200903

BLACK,TRIM1#

sub90109-11062

main73220-0D191-C0iNCP91..RHD..S201102-201111

BLACK,TRIM1#

main73220-0D191-C1iNCP91..(E,G)..(IDN,MA,PH,TH)201102-201111

BLACK,TRIM1#

main73220-0D193-C0iNCP91..RHD..S201202-201307

BLACK/DK.GRAY,TRIM1#

main73220-0D193-C1iNCP91..J201209-201307

BLACK/GRAY,TRIM1#

main73220-0D240-C0iNCP91..J200903-201102

BLACK,TRIM1#

sub90109-11062

main73220-0D241-C0iNCP91..J201102-201111

BLACK,TRIM1#

main73220-0D243-C0iNCP91..J201202-201209

BLACK,TRIM1#

main73220-52670-C0iNCP91..S..TAIW200910-201109

BLACK,TRIM1#

sub90109-11062

main73220-52670-C1iNCP91..(E,G)..TAIW200910-201109

BLACK,TRIM1#,2#

sub90109-11062

main73220-52671-C0iNCP91..S..TAIW201109-201203

BLACK,TRIM1#

main73220-52671-C1iNCP91..(E,G)..TAIW201109-201203

BLACK,TRIM2#

main73220-52672-C0iNCP91..S..TAIW201204-201409

BLACK,TRIM1#

main73220-52672-C1iNCP91..TAIW201204-201409

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0D180-B0iNCP91200601-200609

DK.GRAY,TRIM1#

main73230-0D181-B0iNCP91..RHD200610-200612

DK.GRAY,TRIM1#

main73230-0D190-B0iNCP91..PH200701-200903

DK.GRAY,TRIM1#

main73230-0D240-B0iNCP91..RHD200701-200903

DK.GRAY,TRIM1#

main73230-0D241-B0iNCP91..IDN,MA,PH,TH201202-201307

DK.GRAY,TRIM1#

main73230-52510-B0iNCP91..S..TAIW200910-201203

DK.GRAY,TRIM1#,2#

main73230-52511-B0iNCP91..S..TAIW201204-201409

DK.GRAY,TRIM1#,2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-06020-B1iNCP91..S..TAIW201109-201409

DK.GRAY,TRIM1#,2#

main73233-33010-B8iNCP91..IDN,MA,PH,TH201102-201307

DK.GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0D190-B0iNCP91..IDN,MA,PH,TH200903-201201

DK.GRAY,TRIM1#

main73230-0D191-B0iNCP91..IDN,MA,PH,TH201202-201307

DK.GRAY,TRIM1#

main73230-0D240-B0iNCP91..PH200701-200903

DK.GRAY,TRIM1#

main73230-52690-B0iNCP91..S..TAIW200910-201203

DK.GRAY,TRIM1#,2#

main73230-52691-B0iNCP91..S..TAIW201204-201409

DK.GRAY,TRIM1#,2#

9010511053

main90105-11053

9010911062

main90109-11062

9090119040

main90901-19040

91512G1025

main91512-G1025

9155380612

main91553-80612

14 parts on this diagram · 3 diagrams in section
