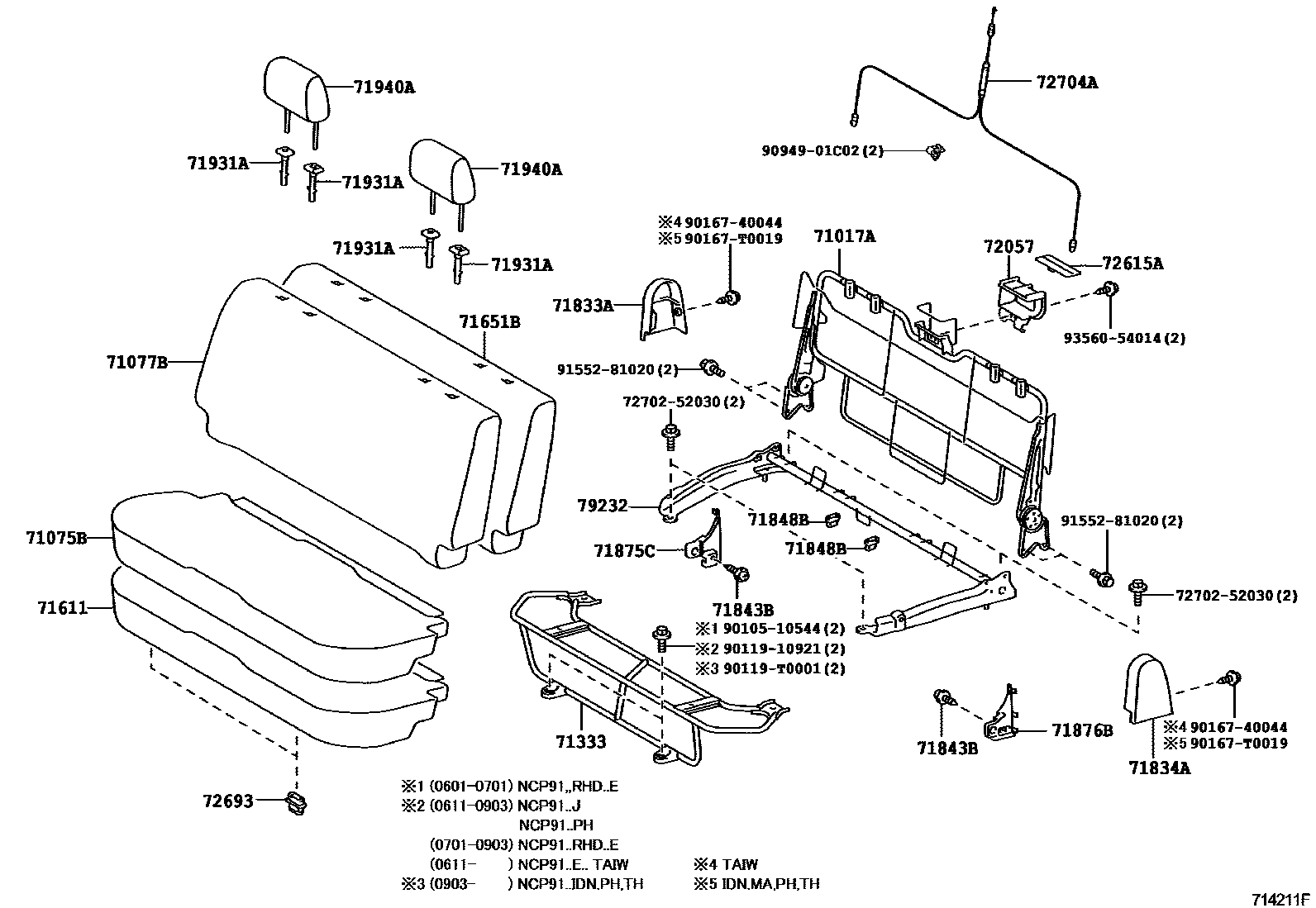

REAR SEAT & SEAT TRACK

0001 1 0002 1RH 0003 1LH 0004 1

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-0D030iNCP91..RHD..(G,S)200601-200701

main71017-0D070iNCP91..(G,S)..TAIW200611-200910

main71017-0D290iNCP91..(E,G,S)..(MA,TH)201202-201307

main71017-0D440iNCP91..(G,S)..TAIW201202

71017AFRAME SUB-ASSY, REAR SEATBACK

main71017-0D060iNCP91..RHD..E200702-200903

main71017-0D080iNCP91..E..TAIW200611-200910

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-0D360-C1iNCP91..RHD..E200601-200701

BLACK,TRIM1#

main71075-0D380-C0iNCP91..E..TAIW200611-200910

BLACK,TRIM1#

main71075-0D620-B1iNCP91..J;NCP91..E..(IDN,PH)200903-201307

DK.GRAY,TRIM1#

main71075-0DA40-B0iNCP91..(E,G)..(MA,TH)201202-201307

DARK GRAY,TRIM1#

main71075-0DA50-D0iNCP91..S..(MA,TH)201202-201307

RED,TRIM1#

main71075-0DD00-B0iNCP91..G..TAIW201202-201309

DK.GRAY,TRIM2#

main71075-0DD00-B1iNCP91..E201309-201409

E LETHER(TAIWAN)&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM21

main71075-0DD10-B0iNCP91..S..TAIW201202-201204

DK.GRAY,TRIM1#

main71075-0DD10-D1iNCP91..S..TAIW201204-201409

RED/BLACK,TRIM1#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-0D360-C0iNCP91..RHD..E200601-200701

BLACK,TRIM1#

main71077-0D380-C0iNCP91..E..TAIW200611-200910

BLACK,TRIM1#

main71077-0D381-C0iNCP91..E..TAIW201204-201409

BLACK,TRIM2#

main71077-0D760-B1iNCP91..J;NCP91..E..(IDN,PH)200903-201307

DK.GRAY,TRIM1#

sub71077-0D770

main71077-0D410-C0supersedes 71077-0D770-B1iNCP91..E..TH200601-200608

SINGAPORE SPEC,BLACK,TRIM1#

main71077-0D700-C0supersedes 71077-0D770-B1iNCP91..E..TH200702-200903

SINGAPORE SPEC,BLACK,TRIM1#

71333LEG, REAR SEAT CUSHION, NO.1

main71333-0D010iNCP91..RHD..E200601-200701

main71333-0D020iNCP91..(G,S)..TAIW201202

main71333-0D030iNCP91..J;NCP91..E..(IDN,PH)200903-201307

71611PAD, REAR SEAT CUSHION

main71503-0D050iNCP91..RHD..E200601-200701

main71503-0D220iNCP91..(E,G,S)..(MA,TH)201202-201307

main71503-0D300supersedes 71503-0D060iNCP91..(G,S)..TAIW201202

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-0D040iNCP91..J;NCP91..PH200601-200903

main71651-0D060iNCP91..E..TAIW200910

71833ACOVER, REAR SEAT RECLINING, NO.1 RH

main71833-0D020-B0iNCP91..E..TAIW200611-200910

DK.GRAY,TRIM1#

main71833-0D030-B0iNCP91..S..TAIW200910-201202

DK.GRAY,TRIM1#,2#

main71833-0D040-B0iNCP91..J;NCP91..E..(IDN,PH)200903-201307

DK.GRAY,TRIM1#

main71833-0D050-B0iNCP91..(G,S)..(MA,TH)200903-201202

DK.GRAY,TRIM1#

main71833-52040-B1iNCP91..RHD..E200601-200701

DK.GRAY,TRIM1#

main71833-52060-B1iNCP91..RHD..(G,S)200601-200701

DK.GRAY,TRIM1#

main71833-52110-B0iNCP91..(E,G,S)..(MA,TH)201202-201307

DK.GRAY,TRIM1#

71834ACOVER, REAR SEAT RECLINING, NO.1 LH

main71834-0D020-B0iNCP91..S..TAIW200910-201202

DK.GRAY,TRIM1#,2#

main71834-0D030-B0iNCP91..E..TAIW200611-200910

DK.GRAY,TRIM1#

main71834-0D040-B0iNCP91..RHD..E200702-200903

DK.GRAY,TRIM1#

main71834-0D050-B0iNCP91..RHD..(G,S)200702-200903

DK.GRAY,TRIM1#

main71834-52040-B1iNCP91..RHD..E200601-200701

DK.GRAY,TRIM1#

main71834-52060-B1iNCP91..RHD..(G,S)200601-200701

DK.GRAY,TRIM1#

main71834-52110-B0iNCP91..S..TAIW201202-201409

DK.GRAY,TRIM2#

71843BCLIP, REAR SEAT RECLINING COVER

main90467-08104-B2×2iNCP91..(E,G,S)..(MA,TH)201202-201307

DK.GRAY,TRIM1#

71848BCAP, SEAT ADJUSTER COVER, RH

main71848-52030×2iNCP91..E..TAIW200601-200910

71875CCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-0D020-B0iNCP91..E..TAIW200611-200910

DK.GRAY,TRIM1#

main71875-0D060-B0iNCP91..S..TAIW200910-201202

DK.GRAY,TRIM1#,2#

main71875-0D070-B0iNCP91..J;NCP91..E..(IDN,PH)200903-201307

DK.GRAY,TRIM1#

main71875-0D100-B0iNCP91..(G,S)..(MA,TH)200903-201202

DK.GRAY,TRIM1#

main71875-52100-B0iNCP91..RHD..E200601-200701

DK.GRAY,TRIM1#

main71875-52140-B0iNCP91..RHD..(G,S)200601-200701

DK.GRAY,TRIM1#

main71875-52320-B0iNCP91..S..TAIW201202-201409

DK.GRAY,TRIM2#

71876BCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-0D020-B0iNCP91..E..TAIW200910-201409

DK.GRAY,TRIM1#,2#

main71876-0D050-B0iNCP91..S..TAIW200910-201202

DK.GRAY,TRIM1#,2#

main71876-0D070-B0iNCP91..E..TH200903-201202

DK.GRAY,TRIM1#

main71876-0D090-B0iNCP91..RHD..(G,S)200702-200903

DK.GRAY,TRIM1#

main71876-52100-B0iNCP91..RHD..E200601-200701

DK.GRAY,TRIM1#

main71876-52120-B0iNCP91..RHD..(G,S)200601-200701

DK.GRAY,TRIM1#

main71876-52290-B0iNCP91..(E,G,S)..(MA,TH)201202-201307

DK.GRAY,TRIM1#

71931ASUPPORT, REAR SEAT HEADREST

main71930-42020-B4iNCP91..RHD..E200601-200701

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#

sub71930-44020

main71930-52030-B0×2iNCP91..S..TAIW201008-201409

W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#,2#

main71931-42020-B4iNCP91..RHD..E200601-200701

W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#

71940AHEADREST ASSY, REAR SEAT

main71940-0D170-C2×2iNCP91..G..TH200601-200701

BLACK,TRIM1#

main71940-0D181-C1iNCP91..RHD..E200601-200701

BLACK,TRIM1#

main71940-0D210-C0×2iNCP91..RHD..S200601-200701

BLACK,TRIM1#

main71940-0D220-C0×2iNCP91..E..TAIW200910-201309

BLACK,TRIM1#,2#

main71940-0D230-B2×2iNCP91..S201309-201409

E LETHER(TAIWAN)&SEAT COVER MATERIAL-2-TONE LEATHER,DK.GRAY,TRIM20

main71940-0D230-B3×2iNCP91..E201309-201409

E LETHER(TAIWAN)&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM21

main71940-0D240-B0×2supersedes 71940-0D230-B0iNCP91..S..TAIW200611-200910

DK.GRAY,TRIM1#

main71940-0D250-C0×2iNCP91..RHD..E200702-200903

BLACK,TRIM1#

main71940-0D470-B1×2supersedes 71940-0D480-B0iNCP91..(E,G)..TH201202-201307

DARK GRAY,TRIM1#

main71940-0D490-B0×2iNCP91..RHD..S200903-201202

DARK GRAY,TRIM1#

main71940-0D491-D0×2iNCP91..RHD..S201202-201307

RED,TRIM1#

main71940-0D500-B1×2iNCP91..J;NCP91..E..(IDN,PH)200903-201307

DARK GRAY,TRIM1#

main71940-0D520-B0×2supersedes 71940-0D230-B0iNCP91..S..TAIW200910-201204

DK.GRAY,TRIM1#

main71940-0D521-D1×2iNCP91..S..TAIW201204-201309

RED/BLACK,TRIM1#

main71940-0D521-D2×2iNCP91..S201309-201409

RED,TRIM1#

72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

main72057-0D020-B0iNCP91..S..TAIW201202-201409

DK.GRAY,TRIM2#

main72057-0D030-B0iNCP91..S..TAIW200910-201202

DK.GRAY,TRIM1#,2#

main72057-0D040-B0iNCP91..RHD..E200702-200903

DK.GRAY,TRIM1#

main72057-0D050-B0iNCP91..(G,S)..(MA,TH)200903-201202

DK.GRAY,TRIM1#

main72057-52010-B0iNCP91..RHD..(G,S)200601-200701

DK.GRAY,TRIM1#

main72057-52020-B0iNCP91..RHD..E200601-200701

DK.GRAY,TRIM1#

72615ACOVER, REAR SEATBACK LOCK STRIKER, RH

main72615-0D010-B0iNCP91..TAIW200611-200910

DK.GRAY,TRIM1#

main72615-0D020-B0iNCP91..J;NCP91..PH200701-200903

DK.GRAY,TRIM1#

main72615-52070-B0iNCP91..RHD200601-200701

DK.GRAY,TRIM1#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-02020×2iNCP91..E..TH200903-201112

72704ACABLE, REAR SEAT RECLINING CONTROL

main72704-52020iNCP91..RHD..E200601-200701

main72704-52030supersedes 72704-52020iNCP91..(G,S)..TAIW200601-200910

79232LEG, REAR NO.2 SEAT, RH

main79232-0D010iNCP91..E..TH200903-201202

main79232-0D040iNCP91..(E,G,S)..(MA,TH)201202-201307

main79232-52050supersedes 79232-0D020iNCP91..(G,S)..TAIW201202

7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-52030

9010510544

main90105-10544

9011910921

main90119-10921

90119T0001

main90119-T0001

9016740044

main90167-40044

90167T0019

main90167-T0019

9094901C02

main90949-01C02

9155281020

main91552-81020

9356054014

main93560-54014

29 parts on this diagram · 4 diagrams in section
