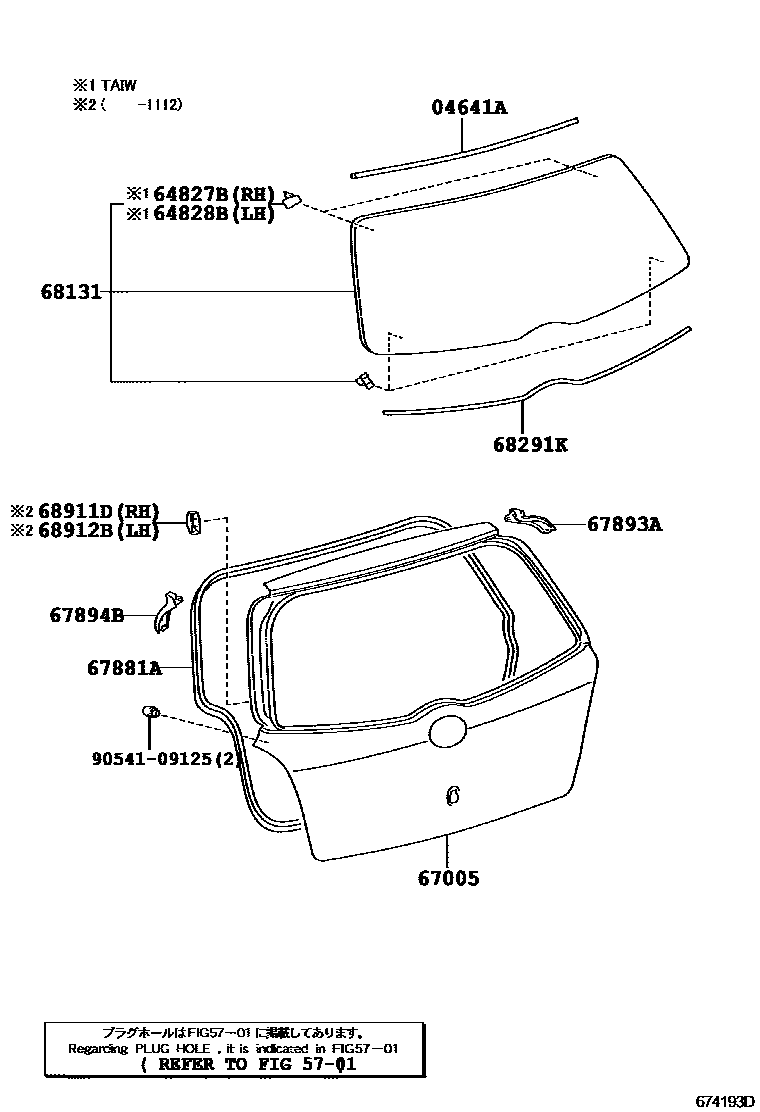

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

04641ADAM KIT, BACK WINDOW GLASS ADHESIVE

main64813-0D080iNCP91..IDN,MA,PH,TH200601-201307

main64813-52070iNCP91..TAIW200611-200910

sub56117-74010

5701

64827BCLIP, BACK WINDOW GLASS, RH

main64827-0D030iNCP91..TAIW200611-200910

64828BCLIP, BACK WINDOW GLASS, LH

main64828-0D030iNCP91..TAIW200611-200910

67005PANEL SUB-ASSY, BACK DOOR

main67005-0D040iNCP91..E,G,J200601-201202

main67005-0D040iNCP91..ATM..PH201202-201307

E STANDARD PACKAGE(VIETNAM)

main67005-0D050iNCP91..ATM..E..TH200903-201202

E LIMITED PACKAGE(THAILAND)

main67005-0D050iNCP91..S..(MA,TAIW,TH)200601-200910

main67005-0D050iNCP91..ATM..E..TH200712-200903

E LTD(THAI)

67881AWEATHERSTRIP, BACK DOOR

main67881-0D030iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

67893APROTECTOR, BACK DOOR PANEL, NO.1

main67893-0D020iNCP91200601-200910

67894BPROTECTOR, BACK DOOR PANEL, NO.2

main67894-0D020iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

68131GLASS, BACK DOOR

main68105-0D060iNCP91..IDN,MA,PH,TH200601-200803

*EHT,T=3.1,GREEN

sub68105-0D061

main68105-0D061iNCP91..IDN,MA,PH,TH200804-201307

*EHT,T=3.1,GREEN

sub68105-0D062

main68105-0D070iNCP91..TAIW200611-200910

*EHT,T=3.1,GREEN

68291KDAM KIT, BACK WINDOW GLASS

main64814-0D020iNCP91..IDN,MA,PH,TH200601-201307

main64814-52040iNCP91..TAIW200611-200910

sub56117-50140

68911DCOVER, BACK DOOR STAY, RH

main68911-0D010iNCP91..ATM;NCP91..MTM..(E,J)200601-201112

68912BCOVER, BACK DOOR STAY, LH

main68912-0D010iNCP91200601-201112

9054109125

main90541-09125

13 parts on this diagram · 2 diagrams in section
