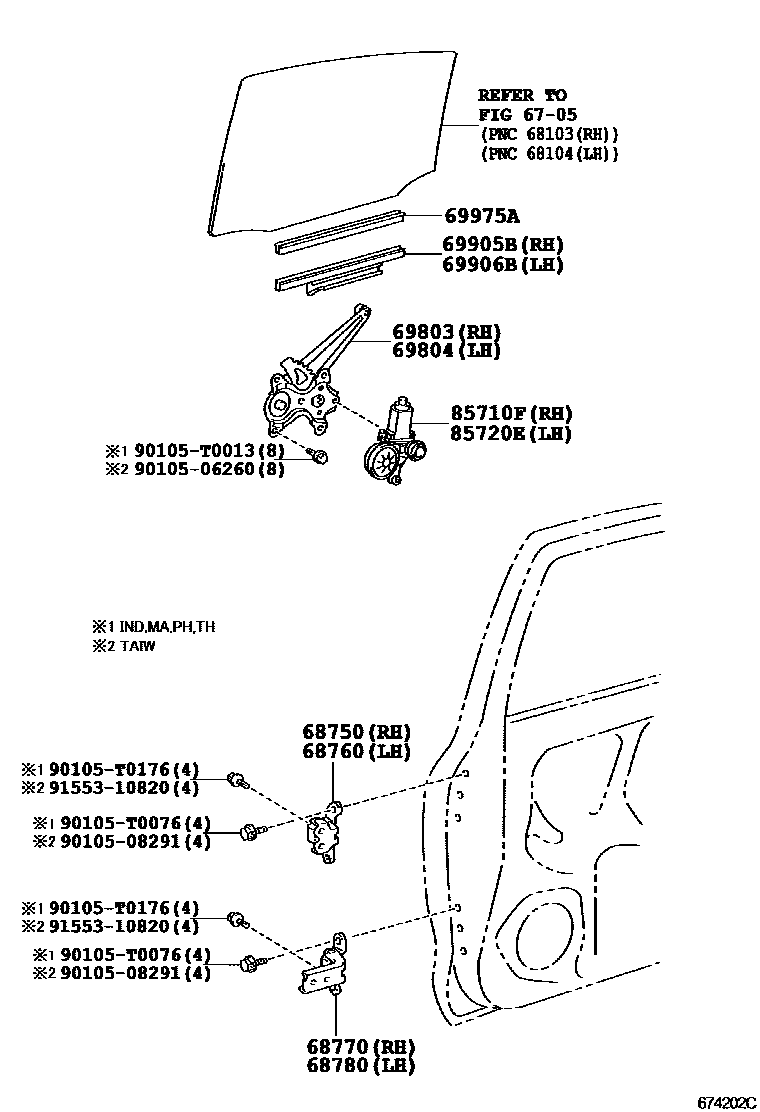

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0D030iNCP91..ATM;NCP91..MTM..(E,J)¥2,030200601-200910

main68750-0D030iNCP91¥2,030200903-201409

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0D030iNCP91..ATM;NCP91..MTM..(E,J)¥2,030200601-200910

main68760-0D030iNCP91¥2,030200903-201409

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0D030iNCP91..ATM;NCP91..MTM..(E,J)¥2,030200601-200910

main68770-0D030iNCP91¥2,030200903-201409

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0D030iNCP91¥2,030200903-201409

main68780-0D030iNCP91..ATM;NCP91..MTM..(E,J)¥2,030200601-200910

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0D070iNCP91..IDN,MA,PH,TH200601-200903

main69803-0D070iNCP91..IDN,MA,PH,TH200903-201307

main69803-0D080iNCP91..TAIW200611-200910

main69803-0D080iNCP91..TAIW200910

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0D070iNCP91..IDN,MA,PH,TH200601-200903

main69804-0D070iNCP91..IDN,MA,PH,TH200903-201307

main69804-0D080iNCP91..TAIW200910

main69804-0D080iNCP91..TAIW200611-200910

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-0D070iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

main69905-0D070iNCP91200903

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-0D060iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

main69906-0D060iNCP91200903

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-0D050iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

main69975-0D050iNCP91200903

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-06120iNCP91..TAIW200611-200910

main85720-06120iNCP91..TAIW200910

main85720-0K010iNCP91..IDN,MA,PH,TH200903-201307

main85720-0K010iNCP91..IDN,MA,PH,TH200601-200903

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-06090iNCP91..TAIW200910

main85710-06090iNCP91..TAIW200611-200910

main85710-0K010iNCP91..IDN,MA,PH,TH200601-200903

main85710-0K010iNCP91..IDN,MA,PH,TH200903-201307

9010506260

main90105-06260¥60

9010508291

main90105-08291¥90

90105T0013

main90105-T0013¥60

90105T0076

main90105-T0076

90105T0176

main90105-T0176

9155310820

main91553-10820¥80

18 parts on this diagram · 1 diagram in section
