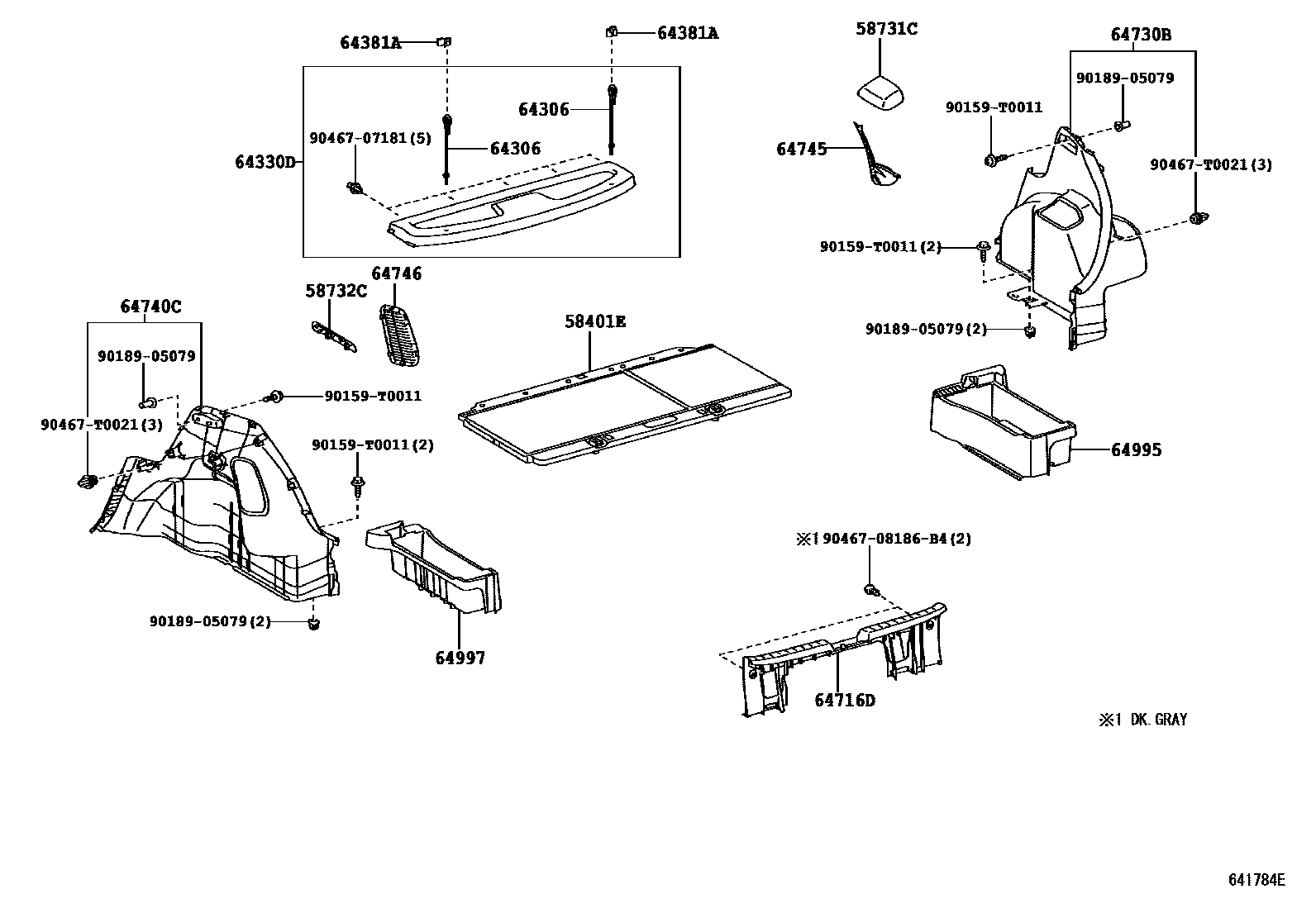

DECK BOARD & DECK TRIM COVER

0001 1 0003 1 0004 1 0005 1

58401EBOARD SUB-ASSY, DECK

main58410-0D030-B0iNCP91..S..TAIW200611-201112

GRAY,TRIM1#

main58410-0D030-B0iNCP91..G..TAIW200910-201112

GRAY,TRIM1#,2#

main58410-52020-B0iNCP91..IDN,MA,PH,TH200601-201307

GRAY,TRIM1#

58731CCAP, REAR ABSORBER

main58731-0D030-B0iNCP91..IDN,MA,PH,TH200601-201307

DK.GRAY,TRIM1#

58732CCAP, REAR ABSORBER

main58732-0D030-B0iNCP91..IDN,MA,PH,TH200601-201307

DK.GRAY,TRIM1#

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-0D050iNCP91..RHD..(G,S)200601-200903

SINGAPORE SPEC

main64306-0D050iNCP91..TAIW200601-201409

main64306-0D050iNCP91..E..TAIW201204-201208

E LETHER(TAIWAN)

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-0D100-C0iNCP91..G,S200601-200608

BLACK,TRIM1#

sub64330-0D101

main64330-0D100-C0iNCP91..G,S200601-200608

SINGAPORE SPEC,BLACK,TRIM1#

sub64330-0D101

main64330-0D101-C0iNCP91..E..TH200608-200903

SINGAPORE SPEC,BLACK,TRIM1#

main64330-0D101-C0iNCP91..E..TAIW;NCP91..ATM..(G,S)200608-201208

BLACK,TRIM1#

main64330-0D101-C0iNCP91..G..TAIW200910-201208

BLACK,TRIM1#,2#

main64330-0D102-C0iNCP91..E..TAIW201204-201409

BLACK,TRIM2#

main64330-0D401-C0iNCP91..S..TAIW201204-201409

E LETHER(TAIWAN),BLACK,TRIM2#

main64330-0D401-C0iNCP91..S..TAIW201204-201409

BLACK,TRIM1#,2#

main64330-0D401-C0iNCP91..S..TAIW201204-201409

BLACK,TRIM2#

64381AHANGER, PACKAGE TRAY TRIM

main64381-52010iNCP91..S..IDN;NCP91..(E,G,S)..(MA,TAIW,TH)200601-200910

main64381-52010iNCP91..RHD..(G,S)200601-200903

SINGAPORE SPEC

64716DCOVER, DECK TRIM, REAR

main64716-0D040-B0iNCP91..RHD..(G,J);NCP91..(E,S)..(MA,PH,TH)200601-201307

DK.GRAY,TRIM1#

sub64716-0D100

main64716-0D050-B0iNCP91..TAIW200611-200910

DK.GRAY,TRIM1#

main64716-0D050-B0iNCP91..TAIW200910-201409

DK.GRAY,TRIM1#,2#

main64716-0D100-B1iNCP91..RHD..(G,J);NCP91..(E,S)..(MA,PH,TH)201202-201307

GRAY/DK.GRAY,TRIM1#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-0D110-B0iNCP91..E..TH200903-201307

DK.GRAY,TRIM1#

sub64730-0D120

main64730-0D110-B0iNCP91..E..TH200601-200903

SINGAPORE SPEC,DK.GRAY,TRIM1#

sub64730-0D120

main64730-0D120-B0iNCP91..RHD..(G,S)200601-201307

DK.GRAY,TRIM1#

main64730-0D130-B0iNCP91..(E,J)..(IDN,PH,TH)200601-201307

DK.GRAY,TRIM1#

sub64730-0D120

main64730-0D160-B0iNCP91..E..TAIW200611-200910

DK.GRAY,TRIM1#

main64730-0D160-B0iNCP91..E..TAIW200910-201409

DK.GRAY,TRIM1#,2#

main64730-0D170-B0iNCP91..(G,S)..TAIW200910-201409

DK.GRAY,TRIM1#,2#

main64730-0D170-B0iNCP91..(G,S)..TAIW200611-200910

DK.GRAY,TRIM1#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-0D130-B0iNCP91..E..TH200903-201212

DK.GRAY,TRIM1#

sub64740-0D140

main64740-0D130-B0iNCP91..E..TH200601-200903

SINGAPORE SPEC,DK.GRAY,TRIM1#

sub64740-0D140

main64740-0D131-B0iNCP91..E..TH201212-201307

DK.GRAY,TRIM1#

sub64740-0D130

main64740-0D140-B0iNCP91..RHD..(G,S)200601-201212

DK.GRAY,TRIM1#

main64740-0D141-B0iNCP91..RHD..(G,S)201212-201307

DK.GRAY,TRIM1#

sub64740-0D140

main64740-0D150-B0iNCP91..J;NCP91..E..(IDN,PH)200601-201212

DK.GRAY,TRIM1#

sub64740-0D140

main64740-0D151-B0iNCP91..J;NCP91..E..(IDN,PH)201212-201307

DK.GRAY,TRIM1#

sub64740-0D150

main64740-0D180-B0iNCP91..E..TAIW200611-200910

DK.GRAY,TRIM1#

main64740-0D180-B0iNCP91..E..TAIW200910-201212

DK.GRAY,TRIM1#,2#

main64740-0D181-B0iNCP91..E..TAIW201212-201409

DK.GRAY,TRIM2#

main64740-0D190-B0iNCP91..S..TAIW200611-201212

DK.GRAY,TRIM1#

main64740-0D190-B0iNCP91..S..TAIW200910-201212

DK.GRAY,TRIM1#,2#

main64740-0D191-B0iNCP91..S..TAIW201212-201409

DK.GRAY,TRIM2#

main64740-0D191-B0iNCP91..S..TAIW201212-201409

DK.GRAY,TRIM1#,2#

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-0D030-B0iNCP91..IDN,MA,PH,TH200601-201307

DK.GRAY,TRIM1#

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-0D040-B0iNCP91..IDN,MA,PH,TH200601-201307

DK.GRAY,TRIM1#

64995BOX, DECK FLOOR, RH

main64995-0D020iNCP91..(G,S)..TAIW200601-201307

64997BOX, DECK FLOOR, LH

main64997-0D020iNCP91..IDN,MA,PH,TH200601-201307

90159T0011

main90159-T0011

9018905079

main90189-05079

9046707181

main90467-07181

9046708186B4

main90467-08186B4

90467T0021

main90467-T0021

18 parts on this diagram · 4 diagrams in section
