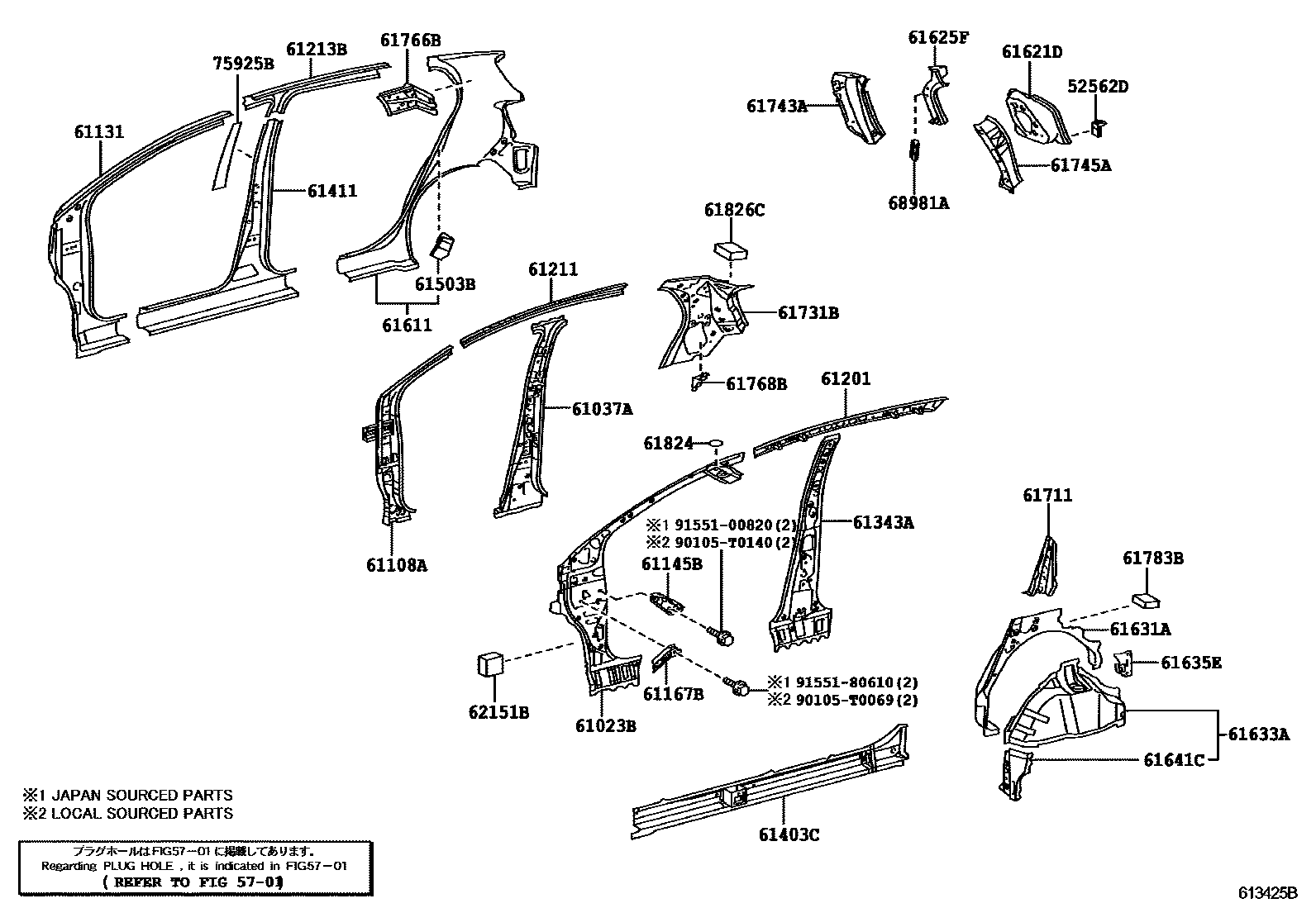

SIDE MEMBER

0001 1RH 0002 1LH 0003 1RH 0004 1LH

52562DRETAINER, REAR BUMPER, UPPER SIDE, RH

main52562-0D010iNCP91..IDN,MA,PH,TH200601-201307

main52562-52030iNCP91..TAIW200611-200910

5701

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-0D100iNCP91..ATM;NCP91..MTM..(E,J)200601-201409

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-0D210iNCP91..IDN,MA,PH,TH200601-201307

main61037-0D901iNCP91..TAIW200611-200910

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-0D060iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-0D090iNCP91..E,G,J200601-200910

main61131-0D100iNCP91..ATM..E..TH200712-200903

E LTD(THAI)

main61131-0D100iNCP91..ATM..S200601-200910

main61131-0D100iNCP91..ATM..E..TH200903-201202

E LIMITED PACKAGE(THAILAND)

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-0D030iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

61167BBRACE, FRONT BODY PILLAR, LOWER

main61167-0D020iNCP91200601-200903

(L)

main61167-0D020iNCP91200903

main61167-52010iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

(J)

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-0D040iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

61211RAIL, ROOF SIDE, OUTER RH

main61211-0D080iNCP91200601-200910

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-0D080iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

61343APILLAR, CENTER BODY, INNER RH

main61032-0D030iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-0D080iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

61411PANEL, ROCKER, OUTER RH

main61411-0D110iNCP91..E,G,J200601-200910

main61411-0D120iNCP91..ATM..S200601-200910

main61411-0D120iNCP91..ATM..E..TH200903-201202

E LIMITED PACKAGE(THAILAND)

main61411-0D120iNCP91..ATM..E..TH200712-200903

E LTD(THAI)

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-0D050iNCP91..IDN,MA,PH,TH200601-201307

main61503-0D090iNCP91..TAIW200611-200910

61611PANEL, QUARTER, RH

main61601-0D110iNCP91..E,G,J200601-200910

main61601-0D120iNCP91..ATM..E..TH200712-200903

E LTD(THAI)

main61601-0D120iNCP91..RHD..S200601-201307

main61601-0D120iNCP91..ATM..E..TH200903-201202

E LIMITED PACKAGE(THAILAND)

main61601-0D140iNCP91..S..TAIW200611-200910

61621DTROUGH, BACK DOOR OPENING, RH

main61621-52110iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

61625FEXTENSION, QUARTER PANEL, UPPER RH

main61625-52110iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-0D060iNCP91..IDN,MA,PH,TH201004-201307

main61631-52120iNCP91..IDN,MA,PH,TH200601-201004

sub61631-0D060

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-0D903iNCP91..IDN,MA,PH,TH200601-201307

main61607-0D904iNCP91..TAIW200611-200910

61635EEXTENSION, QUARTER WHEEL HOUSE, RH

main61635-0D030iNCP91..TAIW200611-200910

main61635-52060iNCP91..IDN,MA,PH,TH200601-201307

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-0D070iNCP91..IDN,MA,PH,TH201112-201307

(L)

main61641-0D070iNCP91..ATM;NCP91..MTM..(E,J)200601-201112

main61641-52100iNCP91..IDN,MA,PH,TH201112-201307

(J)

61711PANEL, ROOF SIDE, OUTER RH

main61711-0D060iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

61731BPANEL, ROOF SIDE, INNER RH

main61731-0D070iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH

main61743-0D020iNCP91200601-201003

main61743-0D030iNCP91201004

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-0D020iNCP91..TAIW200611-200910

main61745-52080iNCP91..IDN,MA,PH,TH200601-201307

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-0D060iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

main61768-0D040iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

61783BPAD, REAR WHEEL OPENING EXTENSION, NO.1

main61783-0D010iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

61824PLATE, NOISE CONTROL, NO.1

main61824-0D020iNCP91..ATM;NCP91..MTM..(E,J)200601-201001

main61825-0D020iNCP91201001

(L)

main61825-52060iNCP91201001

(J)

61826CPAD, NOISE SHUTTER, NO.3

main61826-0D030iNCP91200601-200903

main61826-52040iNCP91..TAIW200611-200910

62151BPAD, COWL SIDE SILENCER

main62151-0D020iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

68981ARETAINER, BACK DOOR STAY, RH

main68981-0D010iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

75925BTAPE, BLACK OUT, NO.3 RH

main75925-0D020iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

90105T0069

main90105-T0069

90105T0140

main90105-T0140

9155100820

main91551-00820

9155180610

main91551-80610

38 parts on this diagram · 4 diagrams in section
