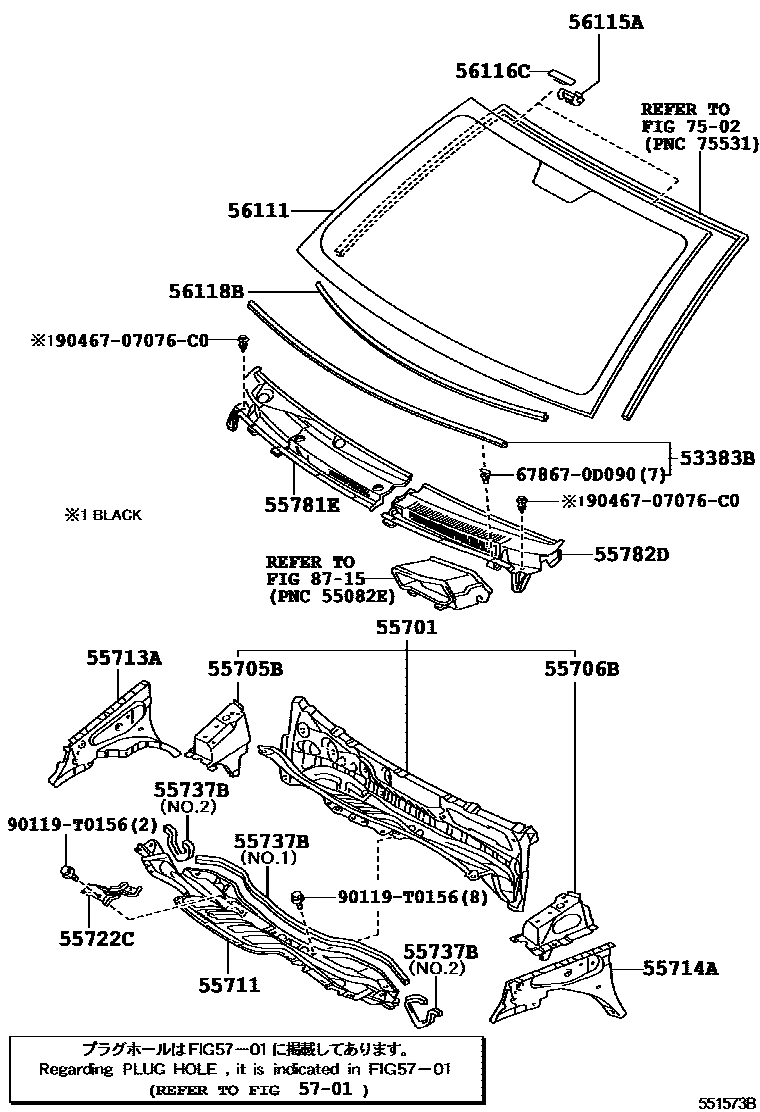

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1 0003 1

53383BSEAL, HOOD TO COWL TOP

main53383-0D070iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

55701PANEL SUB-ASSY, COWL

main55700-0D090iNCP91..RHD200601-201307

main55700-0D110iNCP91..TAIW200611-200910

main55700-0D120iNCP91..PH200701-201307

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0D080iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0D070iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

55711PANEL, COWL TOP, OUTER

main55701-0D100iNCP91..RHD200601-201307

main55701-0D120iNCP91..TAIW200611-200910

main55701-52170iNCP91..PH¥15,800200701-201307

55713APANEL, COWL TOP SIDE, RH

main55713-0D070iNCP91200601-200910

55714APANEL, COWL TOP SIDE, LH

main55714-0D070iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

55722CBRACE, COWL TOP TO COWL, INNER

main55722-0D030iNCP91..RHD200601-201307

main55722-0D050iNCP91..TAIW200611-200910

main55722-52030iNCP91..PH¥2,110200701-201307

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-0D020iNCP91200601-200910

NO.1

main55737-0D050iNCP91200601-200910

NO.2

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0D040iNCP91..RHD200601-201307

main55708-0D120iNCP91..TAIW200611-200910

main55708-52050iNCP91..PH¥9,000200701-201307

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-0D030iNCP91..RHD200601-201307

main55709-0D050iNCP91..TAIW200611-200910

main55709-52050iNCP91..PH¥6,400200701-201307

56111GLASS, WINDSHIELD

main56101-0D090iNCP91..TAIW200611-200910

*LAM,T=4.56,GREEN

main56101-0D901iNCP91..IDN,MA,PH,TH200601-200804

*LAM,T=4.56,GREEN

sub56101-0D907

main56101-0D907iNCP91..IDN,MA,PH,TH200804-201307

*LAM,T=4.56,GREEN

sub56101-0D908

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNCP91¥130200601-200910

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNCP91..IDN,MA,PH,TH¥120200601-201307

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56117-52130iNCP91..IDN,MA,PH,TH¥760200601-201307

L=1010

sub56117-50140¥870

5701

7502

8715

678670D090CLIP, DOOR WEATHERSTRIP

main67867-0D090

90119T0156

main90119-T0156¥60

9046707076C0

main90467-07076C0

21 parts on this diagram · 3 diagrams in section
