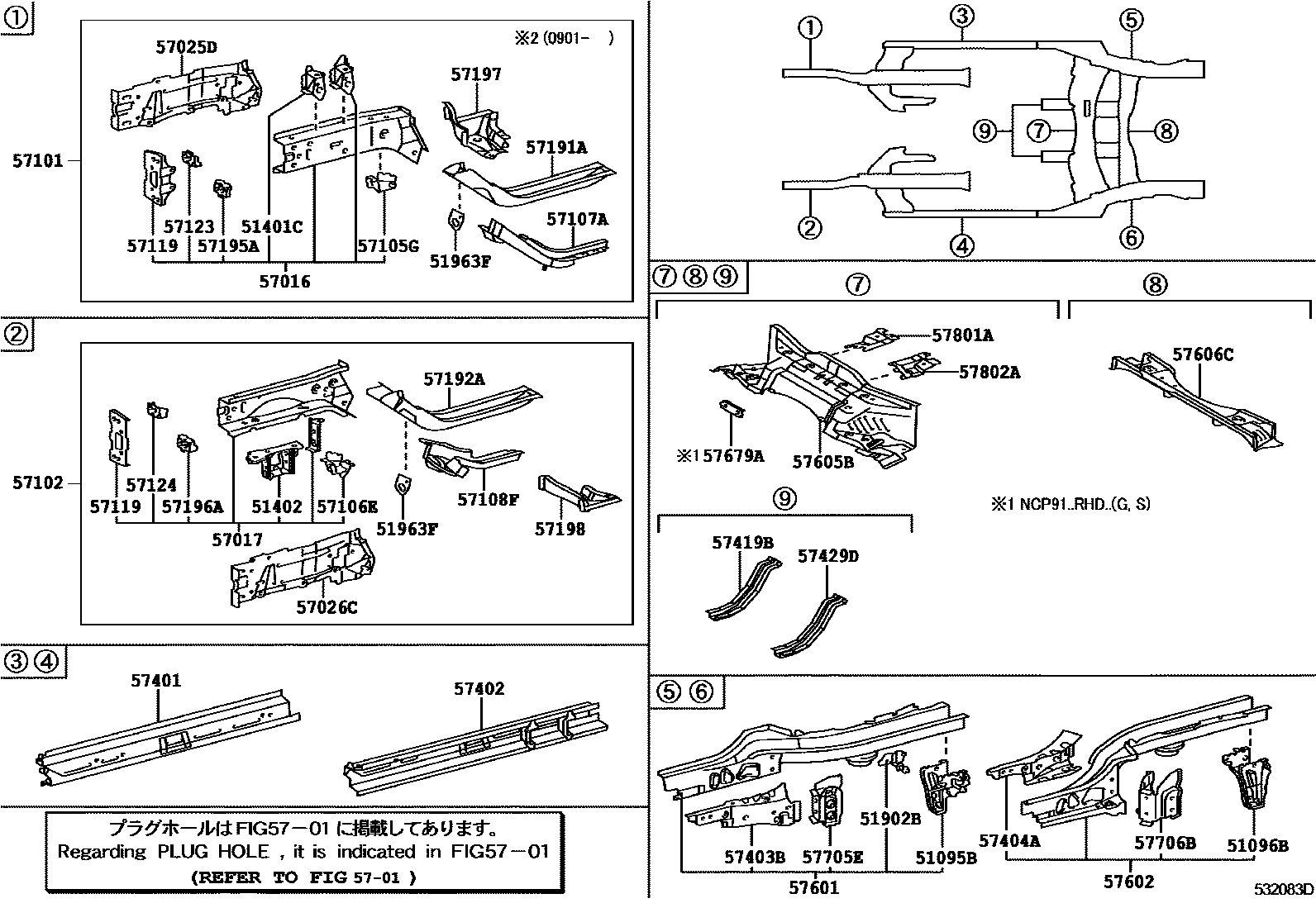

FLOOR SIDE MEMBER

0001 1 0002 1

51095BHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-0D020iNCP91200601-200910

51096BHOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-0D020iNCP91..IDN,MA,PH,TH200601-200910

51401CBRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-0D020iNCP91200601-200910

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-0D020iNCP91..IDN,MA,PH,TH200601-200910

51902BHANGER SUB-ASSY, EXHAUST PIPE, NO.2

main51902-0D020iNCP91..IDN,MA,PH,TH200601-201307

main51902-52010iNCP91..TAIW200611-200910

51963FHOOK, TRANSPORT

main51963-0D030iNCP91..IDN,MA,PH,TH200601-201307

main51963-52050iNCP91..TAIW200611-200910

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-0D070iNCP91..IDN,MA,PH,TH200601-201307

main57016-0D090iNCP91..TAIW200611-200910

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-0D130iNCP91..IDN,MA,PH,TH200601-201307

main57017-0D140iNCP91..TAIW200611-200910

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-0D030iNCP91..IDN,MA,PH,TH200601-201307

main57025-52010iNCP91..TAIW200611-200910

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-0D030iNCP91..IDN,MA,PH,TH200601-201307

main57026-52010iNCP91..TAIW200611-200910

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-0D100iNCP91..IDN,MA,PH,TH200601-201307

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-0D160iNCP91..IDN,MA,PH,TH200601-201307

57105GSPACER SUB-ASSY, SUSPENSION MEMBER, FRONT RH

main57105-0D040iNCP91..IDN,MA,PH,TH200601-200910

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-0D020iNCP91200601-200910

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-0D060iNCP91..IDN,MA,PH,TH200601-200910

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-0D060iNCP91..TAIW200601-200910

57119PLATE, FRONT SIDE MEMBER, FRONT

main57119-0D020iNCP91..IDN,MA,PH,TH200601-200910

RH

main57129-0D020iNCP91..IDN,MA,PH,TH200601-200910

LH

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-0D020iNCP91..IDN,MA,PH,TH200601-200910

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-0D020iNCP91200601-200910

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-52020iNCP91..IDN,MA,PH,TH200601-200910

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-52020iNCP91..IDN,MA,PH,TH200601-200910

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-0D020iNCP91..IDN,MA,PH,TH200601-200910

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-0D020iNCP91..IDN,MA,PH,TH200601-200910

57197BOX, TORQUE, FRONT RH

main57197-0D040iNCP91..IDN,MA,PH,TH200601-200910

57198BOX, TORQUE, FRONT LH

main57198-0D040iNCP91..IDN,MA,PH,TH200601-200910

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-0D110iNCP91..IDN,MA,PH,TH200601-200910

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-0D110iNCP91..IDN,MA,PH,TH200601-200910

57403BREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH

main57403-0D010iNCP91..IDN,MA,PH,TH200601-200910

57404AREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH

main57404-0D010iNCP91..IDN,MA,PH,TH200601-200910

57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR

main57419-0D050iNCP91..IDN,MA,PH,TH200601-200910

57429DREINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57429-0D050iNCP91..IDN,MA,PH,TH200601-200910

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-0D090iNCP91..IDN,MA,PH,TH200601-201307

main57601-0D110iNCP91..TAIW200611-200910

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-0D090iNCP91200601-200910

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-0D060iNCP91..IDN,MA,PH,TH200601-200910

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-0D060iNCP91..IDN,MA,PH,TH200601-200910

57679ARETAINER, REAR FLOOR CROSSMEMBER

main57679-0D020iNCP91..(G,S)..TAIW200601-201307

57705EBRACKET SUB-ASSY, REAR SUSPENSHION MEMBER MOUNTING, RR RH

main57705-0D020iNCP91200601-200809

sub57705-0D021

main57705-0D021iNCP91..IDN,MA,PH,TH200810-200910

57706BBRACKET SUB-ASSY, REAR SUSPENSION ARM, REAR LH

main57706-0D020iNCP91200601-200809

sub57706-0D021

main57706-0D021iNCP91..IDN,MA,PH,TH200810-200910

57801AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH

main57801-0D050iNCP91..IDN,MA,PH,TH200601-200910

57802AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH

main57802-0D040iNCP91..IDN,MA,PH,TH200601-200910

41 parts on this diagram · 2 diagrams in section
