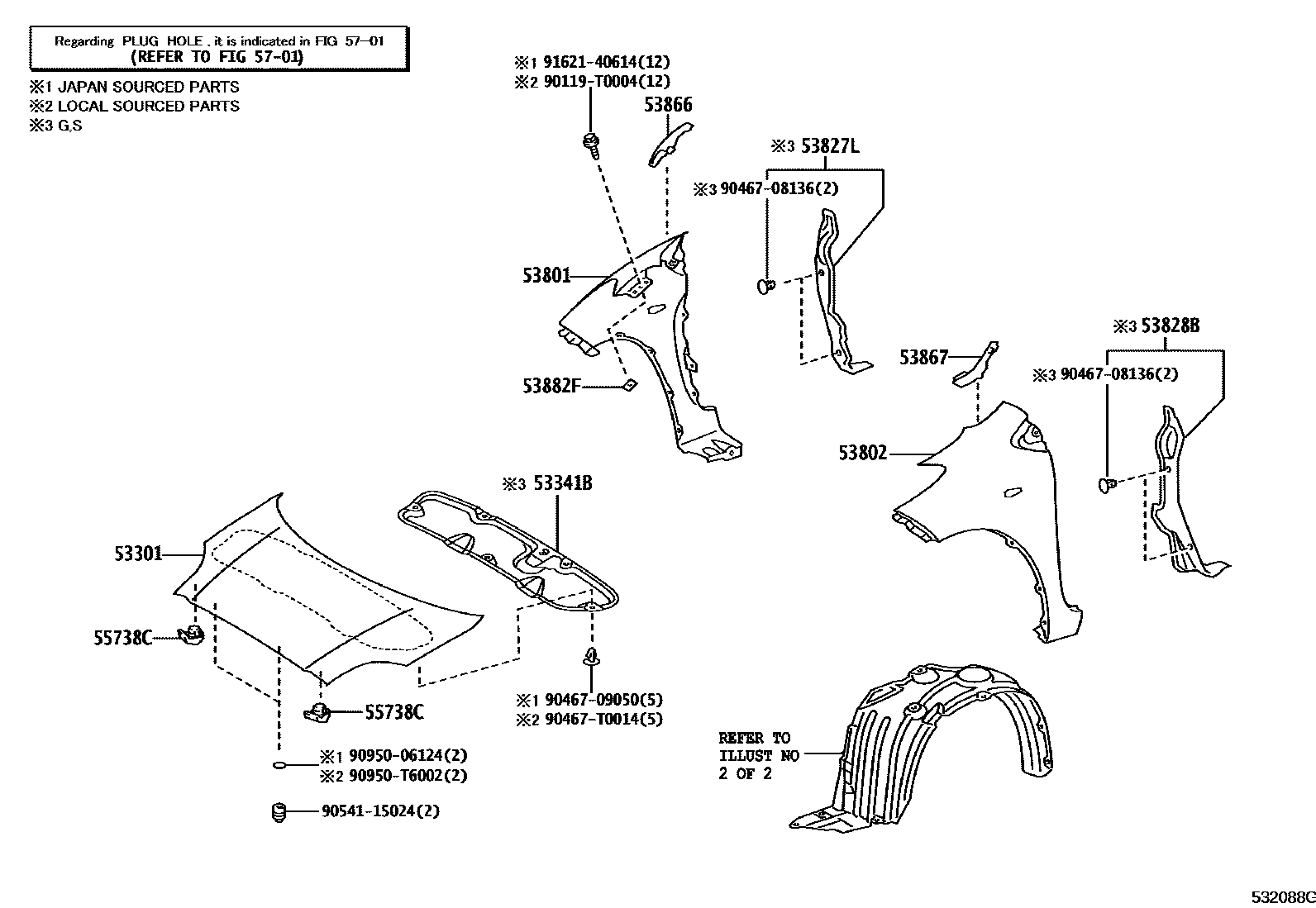

HOOD & FRONT FENDER

0001 1 0003 1 0005 1

53301HOOD SUB-ASSY

main53301-0D090iNCP91..ATM;NCP91..MTM..(E,J)200601-201409

53341BINSULATOR, HOOD

main53341-0D060iNCP91..RHD..(G,S)200601-201307

main53341-0D070iNCP91..(G,S)..TAIW200611-200910

53801FENDER SUB-ASSY, FRONT RH

main53811-52210iNCP91..ATM;NCP91..MTM..(E,J)200601-201409

sub53811-52410

main53811-52280iNCP91..S..IDN;NCP91..(E,G,S)..(MA,PH,TH)200903-201307

sub53811-52420

53802FENDER SUB-ASSY, FRONT LH

main53812-52210iNCP91..J;NCP91..S..TAIW;NCP91..(E,G)..(IDN,TAIW)200601-201409

sub53812-52380

main53812-52280iNCP91..S..IDN;NCP91..(E,G,S)..(MA,PH,TH)200903-201307

sub53812-52390

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0D030iNCP91..RHD..(G,S)201112-201203

(L)

main53827-0D030iNCP91..RHD..(G,S)200601-201307

main53827-52100iNCP91..RHD..(G,S)201112-201203

(J)

main53827-52100iNCP91..(G,S)..TAIW200611-200910

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0D030iNCP91..RHD..(G,S)201112-201203

(L)

main53828-0D030iNCP91..RHD..(G,S)200601-201307

main53828-52120iNCP91..(G,S)..TAIW200611-200910

main53828-52120iNCP91..RHD..(G,S)201112-201203

(J)

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0D040iNCP91..IDN,MA,PH,TH200601-200910

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0D040iNCP91..IDN,MA,PH,TH200601-200910

53882FSEAL, FRONT FENDER

main53882-0D010iNCP91200601-200903

(L)

main53882-0D010iNCP91200903-201409

main53882-16030iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

(J)

55738CSTOPPER, HOOD, RH

main55738-0D040iNCP91..IDN,MA,PH,TH200601-200910

(L)

main55738-0D040iNCP91200903-201110

main55738-0D060iNCP91201111

main55738-52050iNCP91..IDN,MA,PH,TH200601-200910

(J)

5701

90119T0004

main90119-T0004

9046708136

main90467-08136

9046709050

main90467-09050

90467T0014

main90467-T0014

9054115024

main90541-15024

9095006124

main90950-06124

90950T6002

main90950-T6002

9162140614

main91621-40614

19 parts on this diagram · 3 diagrams in section
