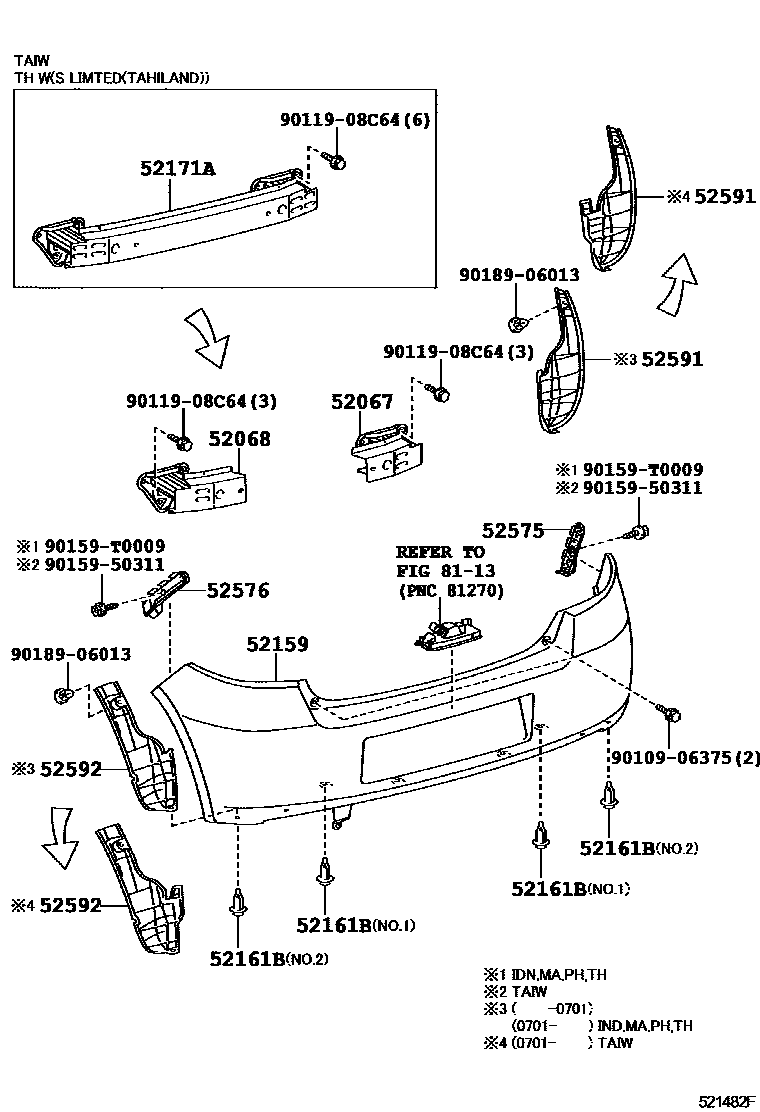

REAR BUMPER & BUMPER STAY

0001 1 0003 1 0005 1 0007 1E STANDARD PACKAGE(VIETNAM) 0008 1 0010 1J LIMITED PACKAGE(THAILAND)

52067SUPPORT SUB-ASSY, REAR BUMPER SIDE, RH

main52067-0D010iNCP91..IDN,MA,PH,TH200601-200903

52068SUPPORT SUB-ASSY, REAR BUMPER SIDE, LH

main52068-0D010iNCP91..IDN,MA,PH,TH200601-200903

52159COVER, REAR BUMPER

main52159-0D909iNCP91..S..TAIW201202-201409

PAINT REQ.

main52159-0D910iNCP91..J..TH200903-201307

PAINT REQ.

main52159-0D920iNCP91..RHD..S200903-201202

PAINT REQ.,E LIMITED PACKAGE(THAILAND)

main52159-0D920iNCP91..ATM..E..TH200903-201202

PAINT REQ.

main52159-0D977iNCP91..(E,G,J)..(IDN,MA,PH,TH)200601-200903

PAINT REQ.

main52159-0D978iNCP91..RHD..S200601-200903

PAINT REQ.

main52159-0D979iNCP91..TAIW200611-200910

PAINT REQ.

main52159-0D988iNCP91..(E,G)..TAIW200910-201409

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-0K040iNCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)¥120201202-201307

E STANDARD PACKAGE(VIETNAM)

main52161-0K040iNCP91..RHD..S¥120200601-200903

NO.1

main52161-0K040iNCP91..RHD..S¥120200601-200903

NO.1 & NO.2

main52161-0K040iNCP91..ATM..J..TH¥120201202-201307

J LIMITED PACKAGE(THAILAND)

main52161-0K040iNCP91..RHD..S¥120200903-201202

E LIMITED PACKAGE(THAILAND)

main52161-0K040iNCP91..J..TH¥120200903-201307

main52161-16010iNCP91..TAIW¥120200611-200910

NO.1 & NO.2

sub52161-0K040¥120

main52161-16010iNCP91..S..TAIW¥120200910-201204

sub52161-0K040¥120

main52161-20010iNCP91..RHD..S¥130200601-200903

NO.2

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-0D020iNCP91..TAIW¥18,700200611-200910

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0D060iNCP91..IDN,MA,PH,TH200601-201204

main52575-52111iNCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)¥2,910201202

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0D060iNCP91..IDN,MA,PH,TH200601-201204

main52576-52091iNCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)¥2,910201202

52591SEAL, REAR BUMPER SIDE, RH

main52591-0D070iNCP91..IDN,MA,PH,TH200601-200903

main52591-0D100iNCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)200903-201204

main52591-52180iNCP91..TAIW¥2,100200611-200701

main52591-52181iNCP91..TAIW¥2,100200701-200910

main52591-52280iNCP91..S..TAIW¥3,340201202

52592SEAL, REAR BUMPER SIDE, LH

main52592-0D070iNCP91..IDN,MA,PH,TH200601-200903

main52592-0D100iNCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)200903-201204

main52592-52170iNCP91..TAIW¥2,100200611-200701

main52592-52171iNCP91..TAIW¥2,100200701-200910

main52592-52260iNCP91..J..IDN;NCP91..(E,G,S)..(IDN,MA,PH,TH)¥3,340201202

8113

9010906375

main90109-06375¥80

9011908C64

main90119-08C64¥90

9015950311

main90159-50311¥70

90159T0009

main90159-T0009

9018906013

main90189-06013¥70

15 parts on this diagram · 6 diagrams in section
