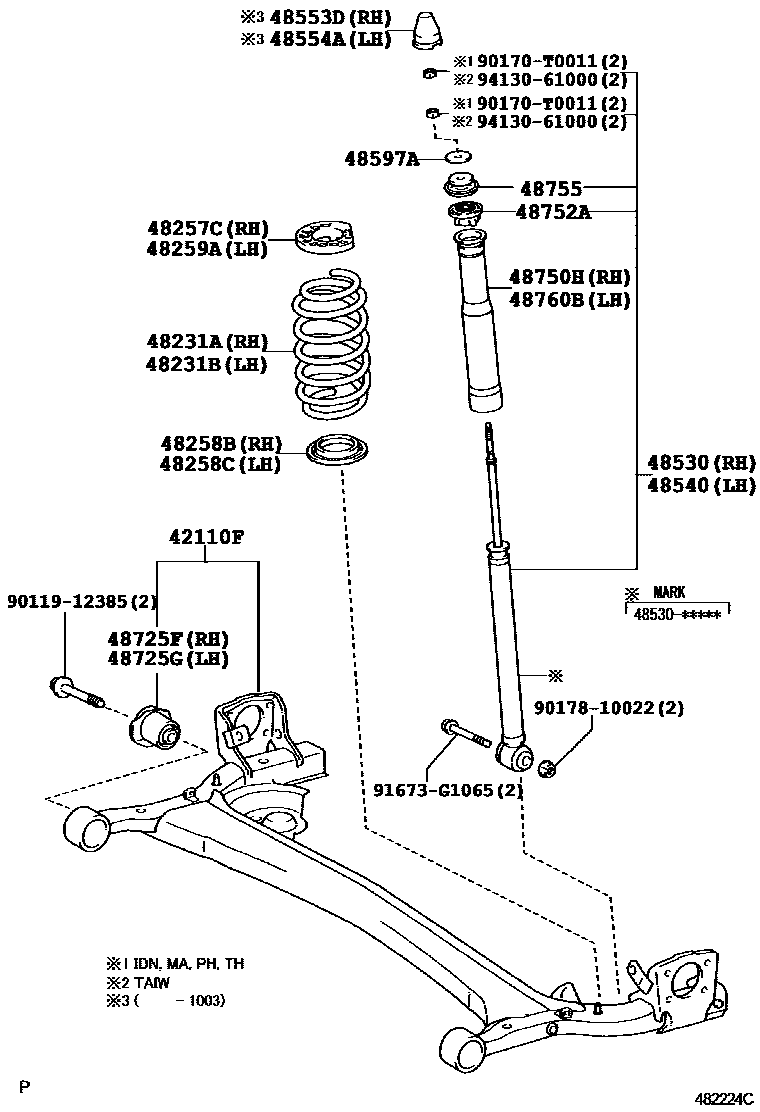

REAR SPRING & SHOCK ABSORBER
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-0D211
MARK 48530-0D220,S LIMITED(THAILAND)&TIRE & DISK WHEEL-195/50R16 6JJ ALLOY
sub48530-09L11
MARK 48530-0D221,S LIMITED(THAILAND)&TIRE & DISK WHEEL-195/50R16 6JJ ALLOY
sub48530-09L12
MARK 48530-0D222
MARK 48530-0D230,S LIMITED PACKAGE
MARK 48530-0D230
MARK 48530-0D240
MARK 48530-0D240,S LIMITED(TAIWAN)&TIRE & DISK WHEEL-195/50R16 6JJ ALLOY
MARK 48530-0D321
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-0D211
MARK 48530-0D220,S LIMITED(THAILAND)&TIRE & DISK WHEEL-195/50R16 6JJ ALLOY
sub48530-09L11
MARK 48530-0D221,S LIMITED(THAILAND)&TIRE & DISK WHEEL-195/50R16 6JJ ALLOY
sub48530-09L12
MARK 48530-0D222
MARK 48530-0D230,S LIMITED PACKAGE
MARK 48530-0D230
MARK 48530-0D240,S LIMITED(TAIWAN)&TIRE & DISK WHEEL-195/50R16 6JJ ALLOY
MARK 48530-0D240
MARK 48530-0D321
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
48752ASTOPPER, REAR SUSPENSION SUPPORT
48755SUPPORT, REAR SUSPENSION
9011912385
main90119-12385
90170T0011
main90170-T0011
9017810022
main90178-10022
91673G1065
main91673-G1065
9413061000
main94130-61000
23 parts on this diagram · 1 diagram in section
