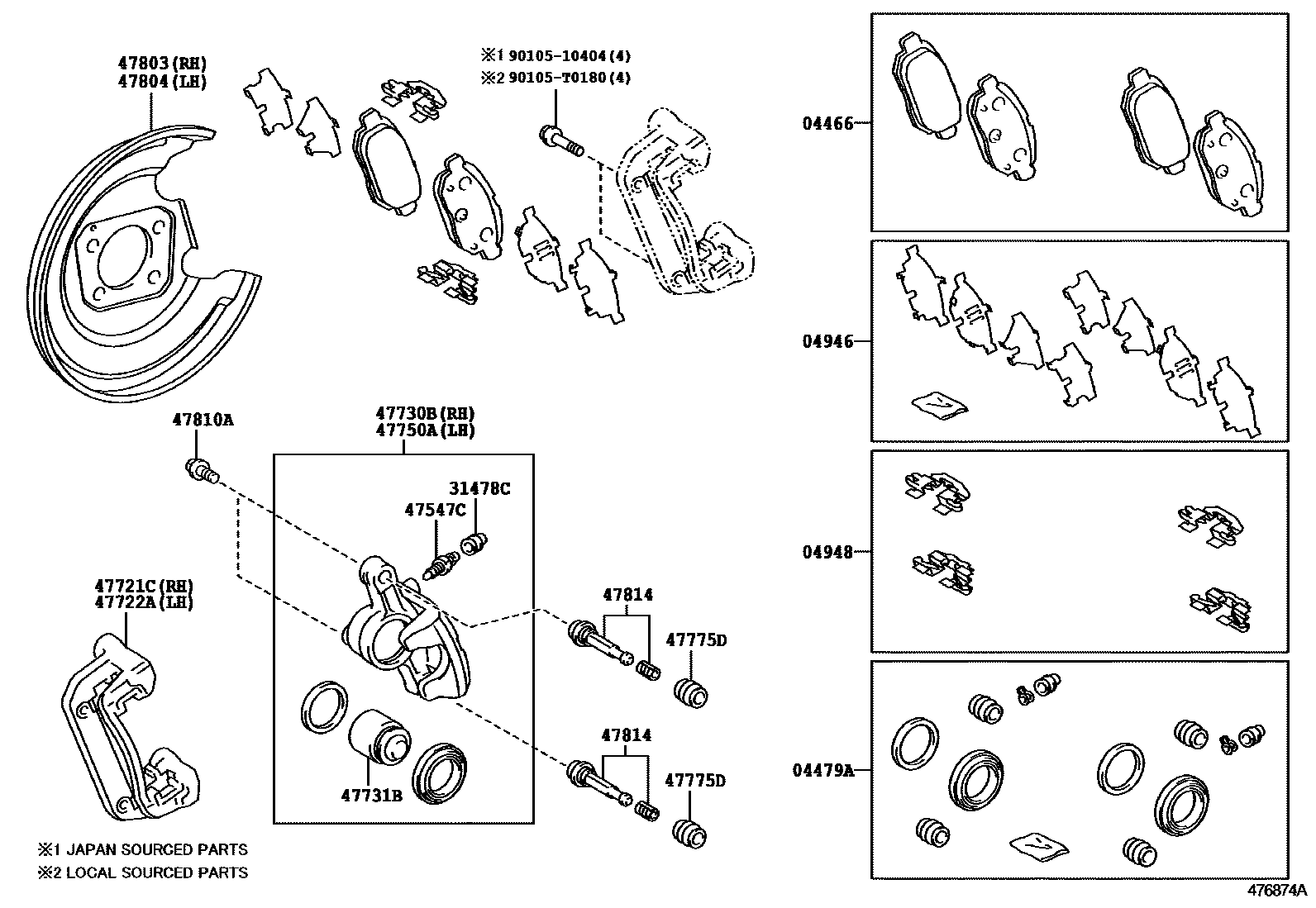

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-52120iNCP91..RHD..S200601-200701

MARK NBK D6234

sub04466-52121

main04466-52130iNCP91..S..TAIW200611-201202

MARK NBK D6247

sub04466-52160

main04466-52160iNCP91..S201202

MARK NBK D6247

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-52130iNCP91..S200601-200609

sub04479-52190

main04479-52170iNCP91..S..TAIW200611-200807

main04479-52190iNCP91..RHD..S200609-200701

main04479-52250iNCP91..ATM..S200807-200910

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-52080iNCP91..S200611-200910

main04946-52081iNCP91..RHD..S200601-200701

sub04946-52080

04948FITTING KIT, DISC BRAKE, REAR

main04948-12060iNCP91..S201202

main04948-52030iNCP91..RHD..S200601-200701

sub04948-52040

main04948-52040iNCP91..S200611-201201

sub04948-12060

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010iNCP91..S200601-200910

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050iNCP91..S200601-200910

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12150iNCP91..S..TAIW200611-200910

main47821-52051iNCP91..RHD..S200601-200701

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12150iNCP91..S200611-200910

main47821-52051iNCP91..RHD..S200601-200701

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-52090iNCP91..S..TAIW200601-200810

sub47830-52161

main47830-52161iNCP91..S..TAIW200810-200910

47731BPISTON, REAR DISC BRAKE

main47831-52090iNCP91..S..TAIW200601-200910

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-52090iNCP91..S..TAIW200601-200810

sub47850-52161

main47850-52161iNCP91..S..TAIW200810-200910

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150iNCP91..S..TAIW200611-200910

main47875-52050iNCP91..RHD..S200601-200701

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-0D020iNCP91..S..TAIW200611-200910

main47803-0D020iNCP91..S..TAIW200910

S LIMITED PACKAGE

main47803-0D030iNCP91..RHD..S200701-201307

main47803-52010iNCP91..RHD..S200601-200701

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-0D020iNCP91..S..TAIW200611-200910

main47804-0D020iNCP91..S..TAIW200910

S LIMITED PACKAGE

main47804-0D030iNCP91..RHD..S200701-201307

main47804-52010iNCP91..RHD..S200601-200701

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102iNCP91..RHD..S200601-200910

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47835-12150iNCP91..S..TAIW200611-200910

main47835-52051iNCP91..RHD..S200601-200701

9010510404

main90105-10404

90105T0180

main90105-T0180

18 parts on this diagram · 1 diagram in section
