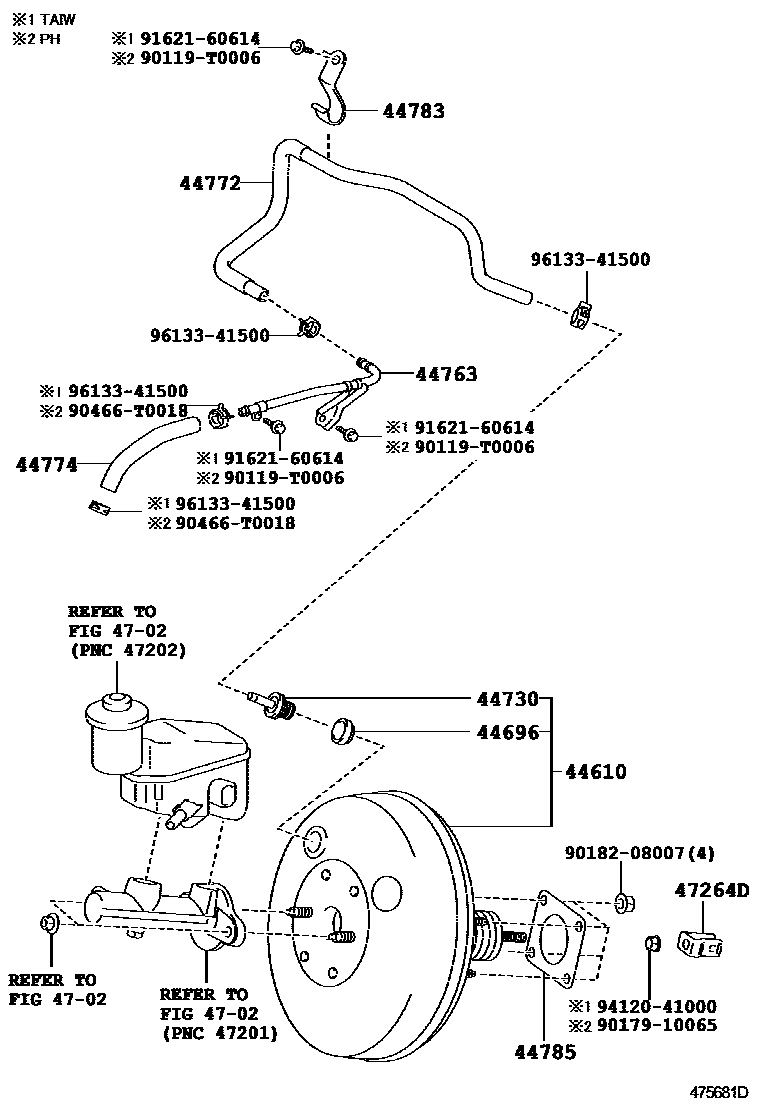

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-0D200iNCP91..RHD..(E,G)200701-201307

main44610-0D210iNCP91..RHD..S200701-201307

main44610-0D220iNCP91..J200712-201307

main44610-52480iNCP91..RHD..S200601-200701

main44610-52550iNCP91..RHD..(E,G)200601-200701

main44610-52570iNCP91..E..TAIW200611-200910

ABS(ANTI-LOCK BRK SYSTM)-WITH(WITHOUT BRAKE ASSIST)

main44610-52570iNCP91..LHD..(E,G)200903

main44610-52570iNCP91..S..TAIW200910

S LIMITED PACKAGE

main44610-52650iNCP91..S..TAIW200611-200910

main44610-52660iNCP91..E..TAIW200611-200910

44696GROMMET, CHECK VALVE

main90080-48050iNCP91..RHD200701-201307

main90480-24015iNCP91..RHD200601-200701

main90480-24439iNCP91..LHD200611-200910

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20080iNCP91..LHD200611-200910

main44730-22150iNCP91..RHD200701-201307

main44730-28030iNCP91..RHD200601-200701

44763TUBE, BOOSTER VACUUM

main44763-0D080iNCP91..IDN,MA,PH,TH200601-201112

main44763-0D080iNCP91..IDN,MA,PH,TH201112-201307

(L)

main44763-0D100iNCP91..TAIW200611-200910

main44763-52080iNCP91..IDN,MA,PH,TH201112-201307

(J)

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-0D030iNCP91..TAIW200611-200910

main44772-0D050iNCP91..RHD200601-201307

main44772-52090iNCP91..PH200701-201307

44774HOSE, UNION TO CONNECTOR TUBE

main95446-09130iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

44783CLAMP, VACUUM HOSE

main44783-52040iNCP91..LHD200611-200910

44785GASKET, BRAKE BOOSTER

main44785-0D020iNCP91..IDN,MA,PH,TH200702-201307

main44785-16020iNCP91..TAIW200601-200910

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0D030iNCP91..TAIW200611-200910

main47264-0D040iNCP91..RHD200701-201307

main47264-12060iNCP91..RHD200601-200701

main47264-52050iNCP91..PH200701-201307

90119T0006

main90119-T0006

9017910065

main90179-10065

9018208007

main90182-08007

90466T0018

main90466-T0018

9162160614

main91621-60614

9412041000

main94120-41000

9613341500

main96133-41500

17 parts on this diagram · 2 diagrams in section
