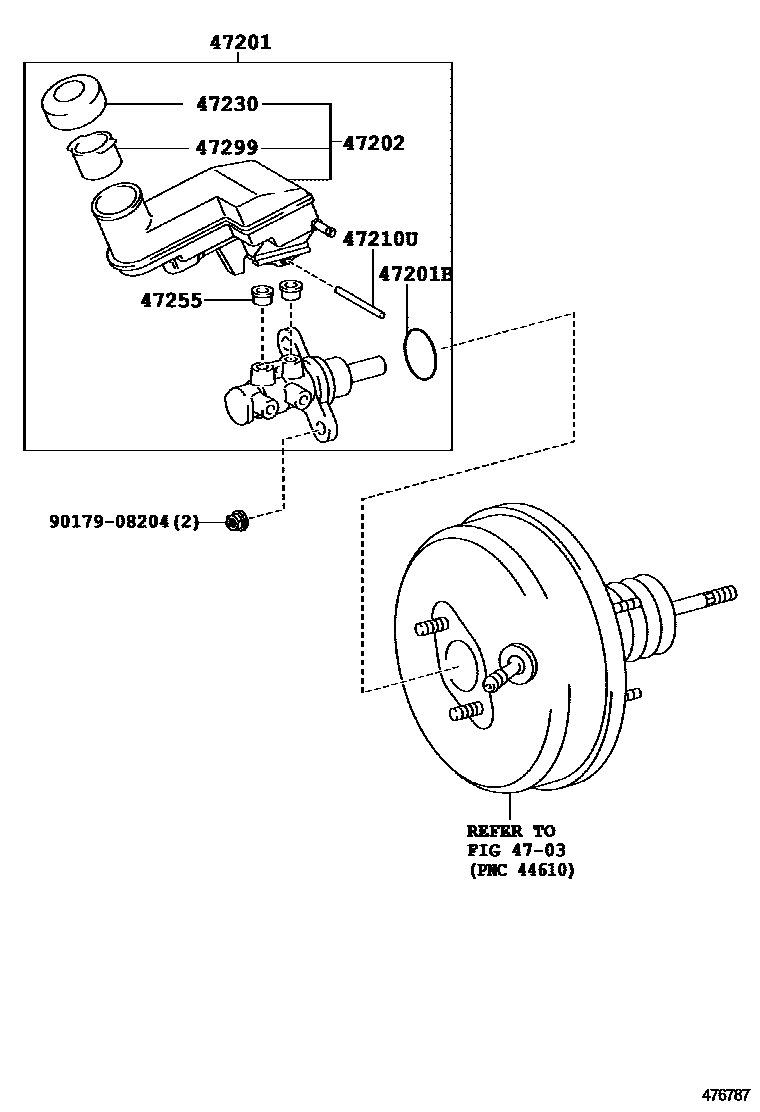

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0D200iNCP91..MTM..S200903-201203

sub47201-0D201

main47201-0D201iNCP91..MTM..S201204-201207

sub47201-0D202

main47201-0D202iNCP91..MTM..S201208-201307

main47201-0D210iNCP91..(E,G)..TAIW200611-200910

main47201-0D210iNCP91..S..TAIW200910

S LIMITED PACKAGE

main47201-0D240iNCP91..RHD..ATM..(E,G,J)200701-201307

main47201-0D250iNCP91..RHD..ATM..S200701-201203

sub47201-0D251

main47201-0D251iNCP91..RHD..ATM..S201204-201207

sub47201-0D252

main47201-0D252iNCP91..RHD..ATM..S201208-201307

main47201-0D260iNCP91..RHD..MTM..(E,J)200701-201307

main47201-52250iNCP91..RHD..ATM..(E,G)200601-200701

sub47201-52251

main47201-52260iNCP91..RHD..S200601-200701

main47201-52310iNCP91..MTM200601-200701

sub47201-52311

main47201-52320iNCP91..ATM..PH200701-201307

main47201-52330iNCP91..MTM..PH200701-201307

main47201-52360iNCP91..S..TAIW200611-200910

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iNCP91..RHD200601-200701

main90015-AH002iNCP91..RHD200701-201307

main90029-20059iNCP91..LHD200611-200910

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-0D090iNCP91..(E,G)..TAIW200910

S LIMITED PACKAGE

main47220-0D090iNCP91..(E,G)..TAIW200611-200910

main47220-0D100iNCP91..RHD..ATM200701-201307

main47220-0D110iNCP91..RHD..MTM200701-201307

main47220-52110iNCP91..RHD..ATM200601-200701

main47220-52140iNCP91..MTM200601-200701

main47220-52160iNCP91..ATM..PH;NCP91..S..TAIW200611-200910

main47220-52170iNCP91..MTM..PH200701-201307

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90015-AE401iNCP91..RHD200601-200701

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D090iNCP91..(E,G)..TAIW200910

S LIMITED PACKAGE

main47230-0D090iNCP91..(E,G)..TAIW200611-200910

main47230-0K010iNCP91..RHD200701-201307

main47230-28240iNCP91..PH;NCP91..S..TAIW200611-200910

main47230-52030iNCP91..RHD200601-200701

sub47230-33071

47255GROMMET, MASTER CYLINDER RESERVOIR

main31417-35010iNCP91..LHD200611-200910

main90015-AT001iNCP91..RHD200601-200701

main90016-AT001iNCP91..RHD..S201204-201307

main90029-48001iNCP91..RHD..S200701-201307

sub90016-AT001

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0D100iNCP91..RHD200701-201307

main47299-25010iNCP91..LHD200611-200910

main47299-52110iNCP91..RHD200601-200701

9017908204

main90179-08204

9 parts on this diagram · 3 diagrams in section
