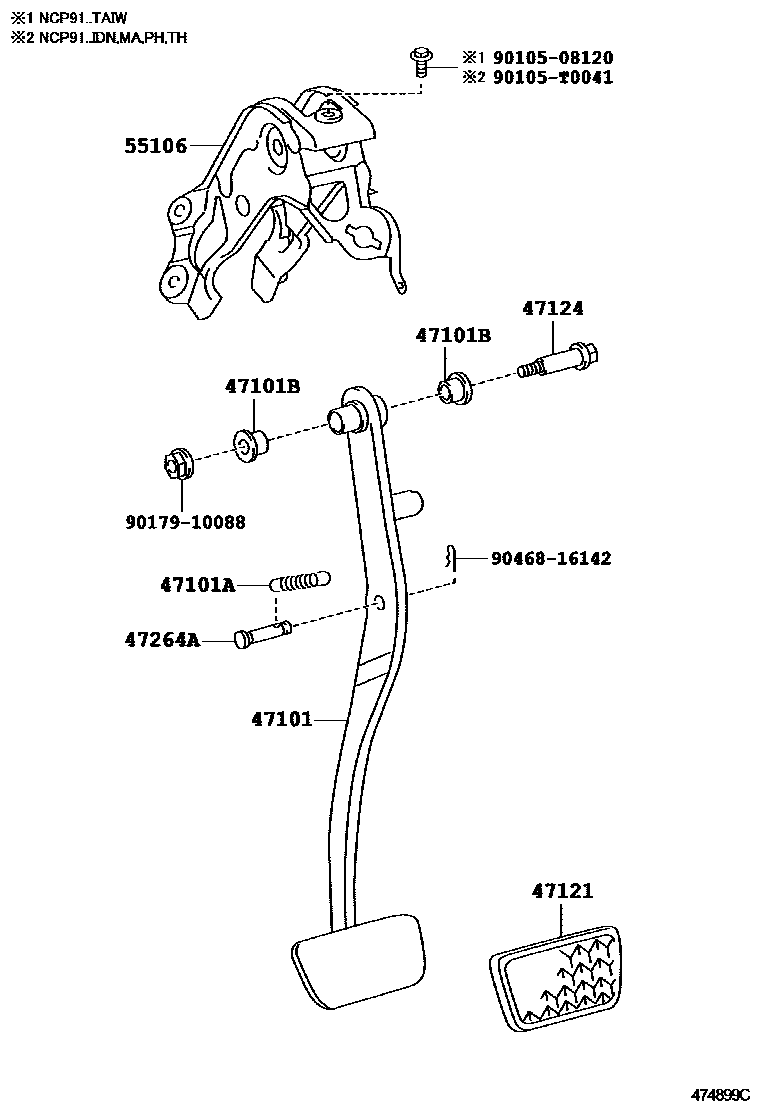

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-0D120iNCP91..RHD..MTM200601-201307

main47101-0D130iNCP91..RHD..ATM200601-201307

main47101-0D140iNCP91..E..TAIW200611-200910

ABS(ANTI-LOCK BRK SYSTM)-WITH(WITHOUT BRAKE ASSIST)

main47101-0D140iNCP91..TAIW200910

main47101-0D150iNCP91..E..TAIW200611-200910

main47101-0D180iNCP91..MTM..PH200911-201307

main47101-0D190iNCP91..ATM..PH200911-201307

main47101-52250iNCP91..MTM..PH¥2,620200701-200911

sub47101-52251

main47101-52260iNCP91..ATM..PH¥2,790200701-200911

sub47101-52261

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iNCP91¥180200601-201212

main90506-14088iNCP91..TAIW¥120201301

main90506-T0015iNCP91..IDN,MA,PH,TH201006-201307

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNCP91..ATM;NCP91..MTM..(E,J)¥120200601-200910

47121PAD, BRAKE PEDAL

main31321-0D040iNCP91..RHD..MTM200911-201307

sub31321-52010¥200

main31321-52010iNCP91..MTM¥200200601-201307

main47121-02020iNCP91..TAIW200611-200910

main47121-0D050iNCP91..RHD..ATM200911-201307

main47121-52010iNCP91..ATM..PH¥260200601-201307

47124SHAFT, BRAKE PEDAL

main90109-10167iNCP91..ATM;NCP91..MTM..(E,J)¥190200601-200910

47264APIN(FOR PUSH ROD)

main90249-08051iNCP91¥170200601-200910

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0D070iNCP91..RHD200601-201307

main55106-0D120iNCP91..TAIW200910-201307

main55106-0D120iNCP91..E..TAIW200611-200910

ABS(ANTI-LOCK BRK SYSTM)-WITH(WITHOUT BRAKE ASSIST)

main55106-0D130iNCP91..E..TAIW200611-200910

sub55106-0D230

main55106-0D240iNCP91..TAIW201302-201409

main55106-52160iNCP91..MTM..PH¥3,370200701-200911

sub55106-52H02¥4,120

9010508120

main90105-08120¥90

90105T0041

main90105-T0041

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

11 parts on this diagram · 1 diagram in section
