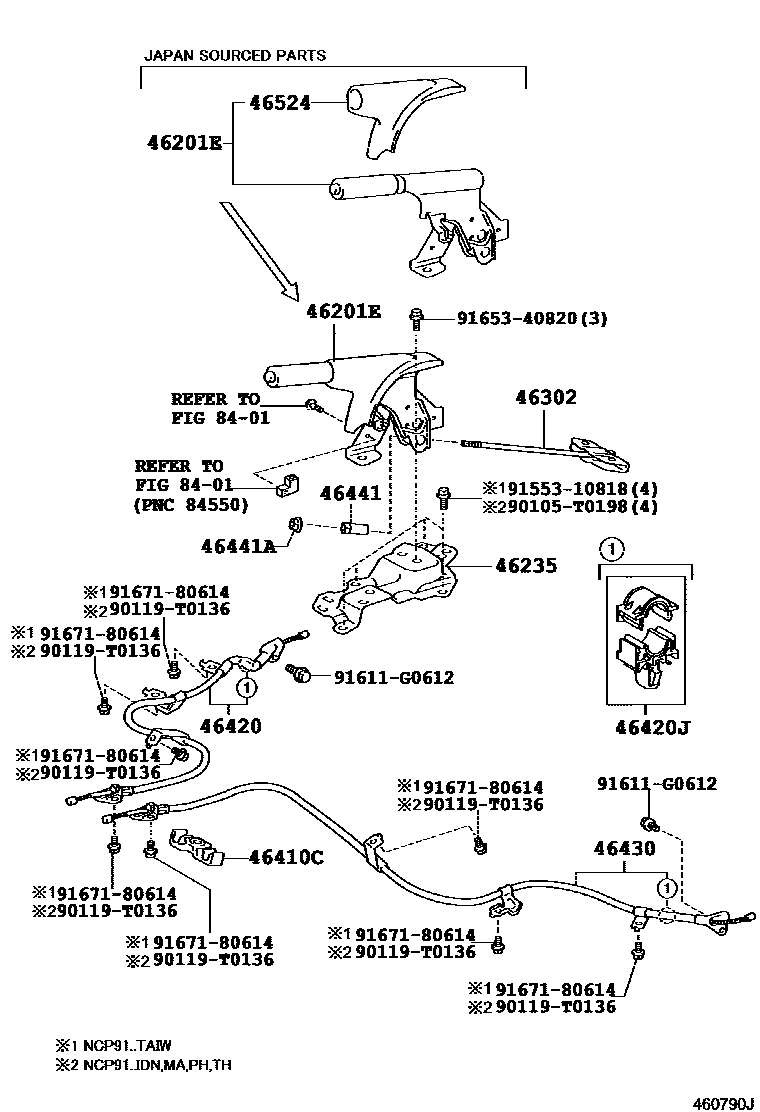

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0D110-B0iNCP91..(E,G,J)..(IDN,MA,PH,TH)200607-201005

DK.GRAY,TRIM1#

sub46201-0D111

main46201-0D111-B0iNCP91..PH;NCP91..G..TH201006-201307

DK.GRAY,TRIM1#,(L)

main46201-0D111-B0iNCP91..ATM..PH201202-201307

VIETNAM SPEC,DK.GRAY,TRIM1#,(L)

main46201-0D120-B0iNCP91..RHD..S200607-201005

DK.GRAY,TRIM1#

sub46201-0D121

main46201-0D121-B0iNCP91..S..(IDN,MA)201006-201307

DK.GRAY,TRIM1#,(L)

main46201-0D182-B0iNCP91..PH;NCP91..G..TH201202-201307

DK.GRAY,TRIM1#,(L)

main46201-0D192-B0iNCP91..S..TH201202-201307

DK.GRAY,TRIM1#,(L)

main46201-52070iNCP91..G..TH;NCP91..MTM..PH201112-201202

(J)

main46201-52070-B0iNCP91..E,G200601-200910

DK.GRAY,TRIM1#

main46201-52070-B0iNCP91..ATM..PH201112-201307

DK.GRAY,TRIM1#,(J)

main46201-52070-B0iNCP91..ATM..PH201202-201307

VIETNAM SPEC,DK.GRAY,TRIM1#,(J)

main46201-52070-B0iNCP91..(E,G)..TAIW200910-201409

DK.GRAY,TRIM1#,2#

main46201-52070-B0iNCP91..(E,G)..TAIW200910-201409

S LIMITED PACKAGE,DK.GRAY,TRIM1#,2#

main46201-52080-B0iNCP91..PH;NCP91..G..TH201202-201307

DK.GRAY,TRIM1#,(J)

main46201-52090iNCP91..S..TH201112-201202

(J)

main46201-52090-B0iNCP91..S200601-201409

DK.GRAY,TRIM1#

main46201-52090-B0iNCP91..S..(IDN,MA)201112-201307

DK.GRAY,TRIM1#,(J)

main46201-52100-B0iNCP91..S..TH201202-201307

DK.GRAY,TRIM1#,(J)

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-0D020iNCP91..IDN,MA,PH,TH200601-201307

main46235-0D030iNCP91..TAIW200611-200910

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-0D030iNCP91..IDN,MA,PH,TH201006-201307

(L)

main46302-0D030iNCP91..IDN,MA,PH,TH200607-201006

main46302-52030iNCP91200601-200910

main46302-52030iNCP91..IDN,MA,PH,TH201112-201307

(J)

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-0D020iNCP91..IDN,MA,PH,TH200601-201307

main46411-0D030iNCP91..TAIW200611-200910

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0D080iNCP91..RHD..S200601-201301

sub46420-0D081

main46420-0D081iNCP91..RHD..S201302-201307

main46420-0D090iNCP91..S..TAIW200910-201210

S LIMITED PACKAGE

main46420-0D090iNCP91..(E,G)..TAIW200611-200910

main46420-0D091iNCP91..S..TAIW201211-201409

S LIMITED PACKAGE

main46420-0D100iNCP91..S..TAIW200611-201210

sub46420-0D101

main46420-0D101iNCP91..S..TAIW201211-201409

main46420-0D110iNCP91..(E,G,J)..(IDN,MA,PH,TH)200701-201301

sub46420-0D111

main46420-0D111iNCP91..(E,G,J)..(IDN,MA,PH,TH)201302-201307

main46420-52151iNCP91..RHD..(E,G)200601-200612

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-52010iNCP91..S200601-200701

main46402-52030iNCP91..MTM..J;NCP91..LHD..(E,G);NCP91..ATM..(J,S)200604-201409

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0D080iNCP91..RHD..S200601-201307

main46430-0D090iNCP91..(E,G)..TAIW200910-201409

S LIMITED PACKAGE

main46430-0D090iNCP91..(E,G)..TAIW200611-200910

main46430-0D100iNCP91..S..TAIW200611-201409

main46430-0D110iNCP91..(E,G,J)..(IDN,MA,PH,TH)200701-201307

main46430-52151iNCP91..RHD..(E,G)200601-200612

46441NUT, WIRE ADJUSTING, NO.1

main46441-0D030iNCP91..IDN,MA,PH,TH201006-201307

(L)

main46441-0D030iNCP91..IDN,MA,PH,TH200607-201006

main46441-52010iNCP91..TAIW200601-200910

main46441-52010iNCP91..IDN,MA,PH,TH201112-201307

(J)

46441ANUT, WIRE ADJUSTING, NO.2

main90178-T0004iNCP91200601-201307

main90179-06299iNCP91..TAIW200611-200910

46524COVER, PARKING BRAKE DUST

main46524-52020iNCP91..IDN,MA,PH,TH201112-201307

(J)

main46524-52020iNCP91..TAIW200910

8401

90105T0198

main90105-T0198

90119T0136

main90119-T0136

9155310818

main91553-10818

91611G0612

main91611-G0612

9165340820

main91653-40820

9167180614

main91671-80614

17 parts on this diagram · 1 diagram in section
