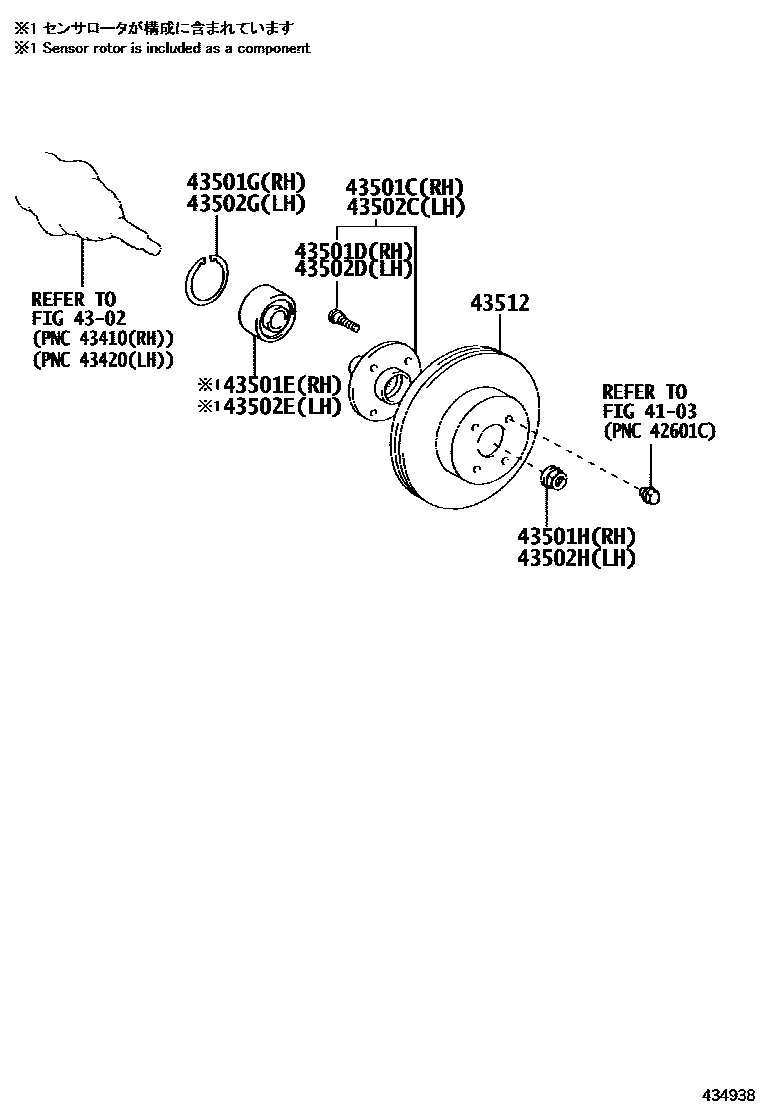

FRONT AXLE HUB

0001 1 0003 1W(W/O BRAKE ASSIST) 0004 1

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-0D060iNCP91200601-200603

(L)

main43502-0D060iNCP91..IDN,MA,PH,TH200603-201307

main43502-0D070iNCP91..TAIW200611-200910

main43502-52030iNCP91200601-200603

(J)

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-T0023iNCP91..E,G,S200601-200910

main90369-T0005iNCP91..J;NCP91..E..TAIW200611-201307

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-80003iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-0D060iNCP91200601-200603

(L)

main43502-0D060iNCP91..IDN,MA,PH,TH200603-201307

main43502-0D070iNCP91..TAIW200611-200910

main43502-52030iNCP91200601-200603

(J)

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iNCP91200601-200910

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-T0023iNCP91..E,G,S200601-200910

main90369-T0005iNCP91..J200611-201307

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-80003iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iNCP91..ATM;NCP91..MTM..(E,J)200601-200910

43512DISC, FRONT

main43512-0D070iNCP91..(E,G)..TAIW200910-201409

S LIMITED PACKAGE

main43512-0D070iNCP91..(E,G)..TAIW200611-200910

main43512-0D080iNCP91..S..TAIW200611-201409

main43512-0D090iNCP91..(E,G,J)..(IDN,MA,PH,TH)200701-201307

main43512-0D100iNCP91..RHD..S200701-201307

main43512-52120iNCP91..RHD..(E,G)200601-200701

main43512-52130iNCP91..RHD..S200601-200701

13 parts on this diagram · 3 diagrams in section
