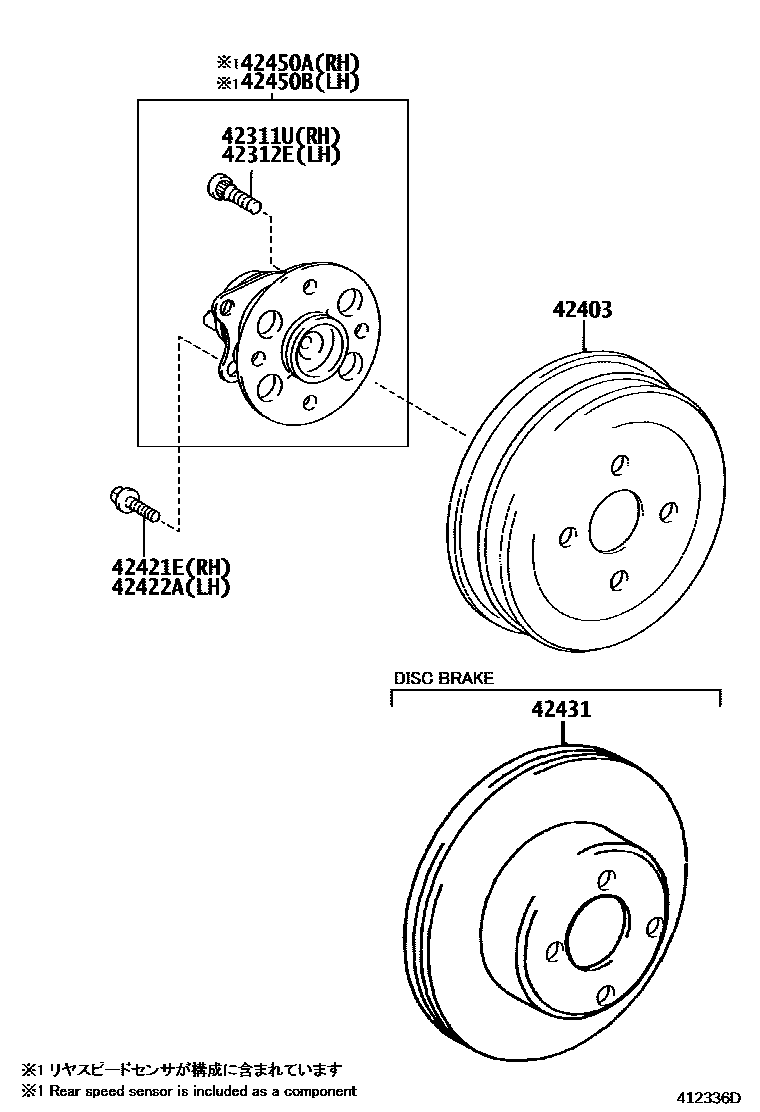

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×4iNCP91200903

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×4iNCP91..IDN,MA,PH,TH200601-200903

42403DRUM SUB-ASSY, REAR BRAKE

main42431-0D080×2iNCP91..(E,G)..TAIW200910

S LIMITED PACKAGE

main42431-0D100×2iNCP91..(E,G,J)..(IDN,MA,PH,TH)200701-200903

main42431-52070×2iNCP91..RHD..(E,G)200601-200701

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350×4iNCP91..E,G,S201303

(J)

main90105-T0187×4iNCP91..E,G,S201303

(L)

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350×4iNCP91..E,G,S201303

(J)

main90105-T0187×4iNCP91..J201303-201307

42431DISC, REAR

main42431-0D090×2iNCP91..S..TAIW200910

main42431-0D110×2iNCP91..RHD..S200701-200903

main42431-52080×2iNCP91..RHD..S200601-200701

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-0D040iNCP91..J..TH201006-201307

main42410-52070iNCP91..J..TH201003-201006

main42450-0D060iNCP91..PH200611-200712

main42450-0D080iNCP91..(E,G,S)..TH201003-201006

(L)

main42450-52060iNCP91..(E,G,S)..TH201003-201006

(J)

sub42450-52061

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-0D040iNCP91..J..IDN200903-201307

main42410-52070iNCP91..J..TH201003-201006

main42450-0D060iNCP91..TAIW200910-201003

main42450-0D080iNCP91..(E,G,S)..TH201006-201409

main42450-52060iNCP91..(E,G,S)..TH201003-201006

(J)

sub42450-52061

8 parts on this diagram · 1 diagram in section
