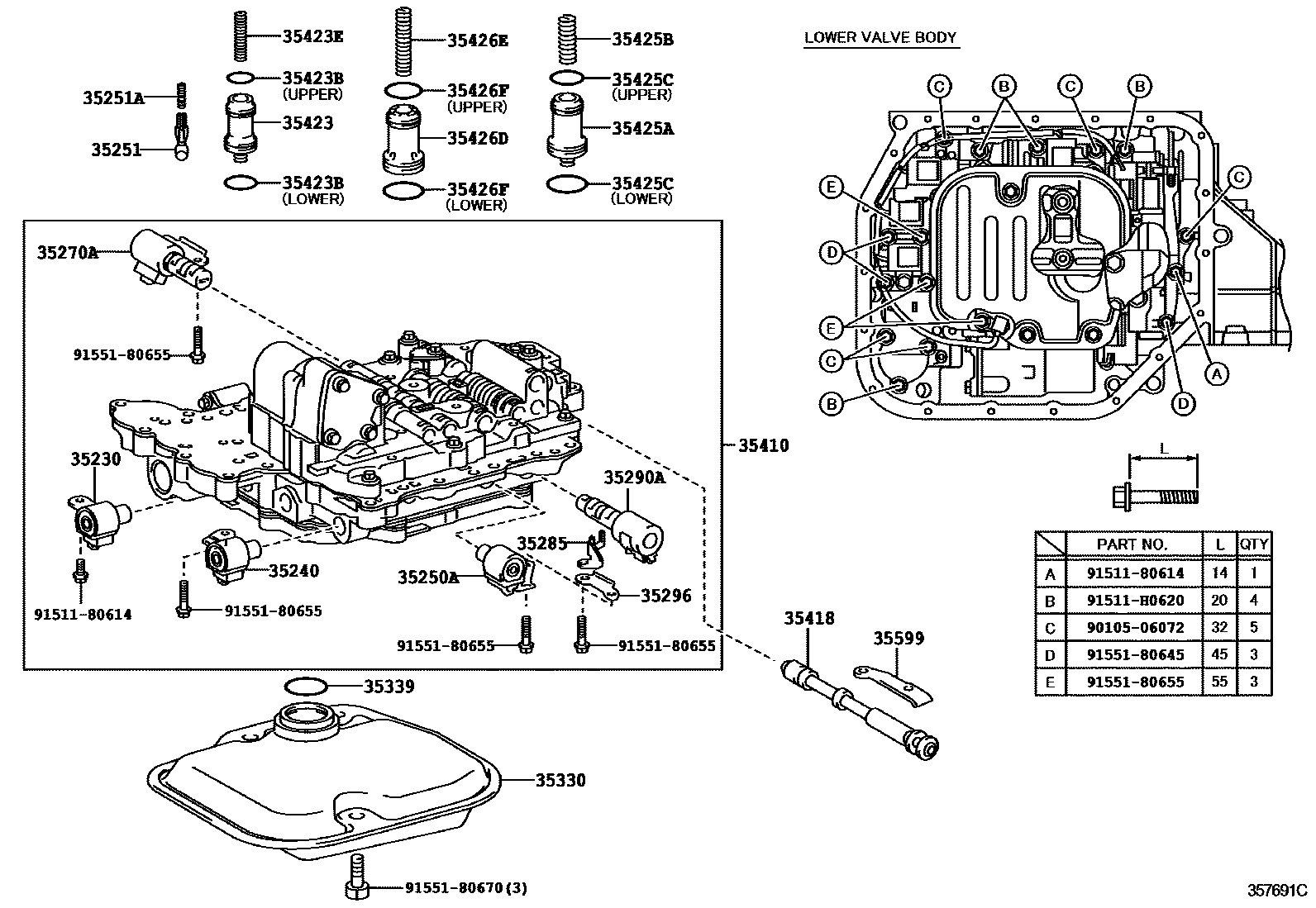

VALVE BODY & OIL STRAINER (ATM)
35230SOLENOID ASSY, TRANSMISSION 3WAY, NO.2
35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY
35250ASOLENOID ASSY, TRANSMISSION, NO.3
35251BODY, CHECK BALL
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
35270ASOLENOID ASSY, TRANSMISSION 3WAY LOCK UP
35285PLATE, SOLENOID LOCK
35290ASOLENOID ASSY, LINE PRESSURE CONTROL
35296PLATE, SOLENOID LOCK, NO.3
35330STRAINER ASSY, VALVE BODY OIL
35410BODY ASSY, TRANSMISSION VALVE
35418VALVE, MANUAL
35423PISTON, B-2 ACCUMULATOR
35423BRING, O (FOR B-2 ACCUMULATOR PISTON)
UPPER
LOWER
35423ESPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON)
35425APISTON, C-2 ACCUMULATOR
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
UPPER
LOWER
35426DPISTON, C-3 ACCUMULATOR
35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)
35426FRING, O (FOR C-3 ACCUMULATOR PISTON)
UPPER
LOWER
35599COVER, MANUAL DETENT SPRING
9010506072
main90105-06072
9151180614
main91511-80614
91511H0620
main91511-H0620
9155180645
main91551-80645
9155180655
main91551-80655
9155180670
main91551-80670
29 parts on this diagram · 2 diagrams in section
