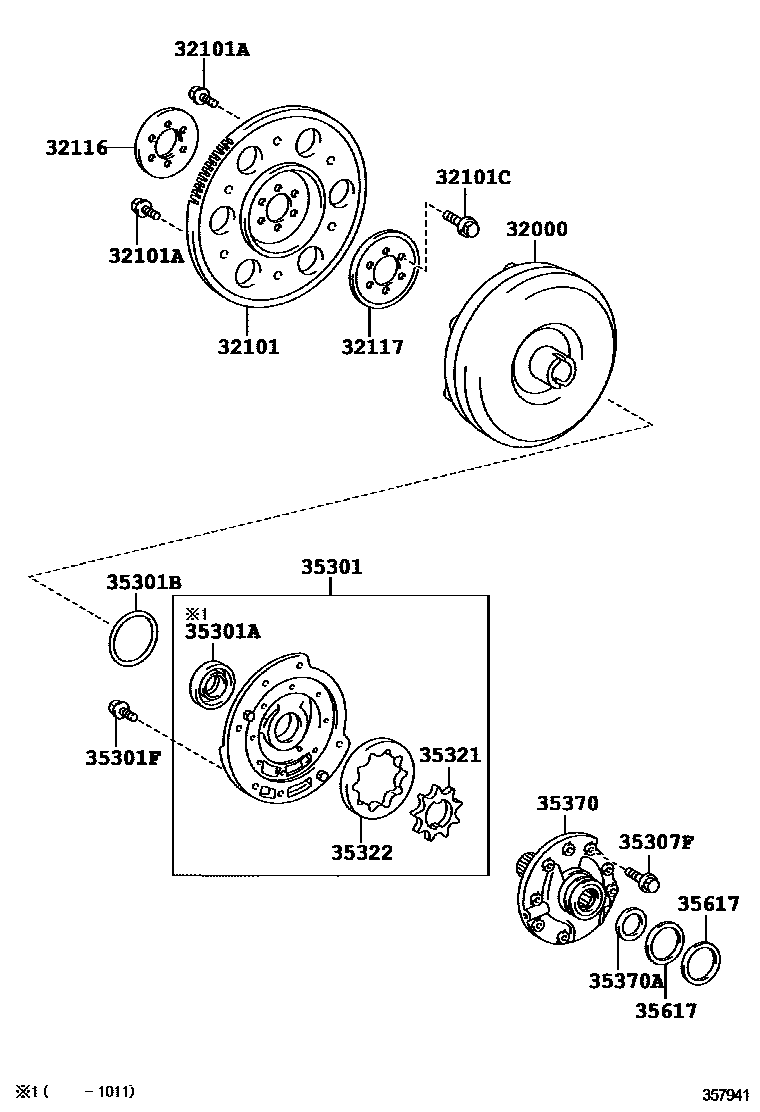

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-52051iNCP91..ATM200601-200708

main32000-52052iNCP91..ATM200903-201409

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-52021iNCP91..TAIW200601-200910

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08107iNCP91..TAIW200601-200811

*8-1.25PX12-8.4

main90109-08113iNCP91..ATM200903

*8-1.25PX12-8.4

main90119-08269×5iNCP91..TAIW200611-200811

*8-1.25PX12-8

main90119-08498×5iNCP91..ATM..(IDN,MA,PH,TH)200811-200903

*8-1.25PX12-8

main90119-T0069×5iNCP91..ATM..(IDN,MA,PH,TH)200601-200810

*8-1.25PX12-8

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×6iNCP91..TAIW200811-200910

*10-1.25PX18-13,(J)

main90105-A0022×6iNCP91..ATM..(IDN,MA,PH,TH)200601-200910

*10-1.25PX18-13,(L)

32116SPACER, DRIVE PLATE, FRONT

main32116-52030iNCP91..ATM..(IDN,MA,PH,TH)200601-200903

32117SPACER, DRIVE PLATE, REAR

main32117-52030iNCP91..ATM..(IDN,MA,PH,TH)200601-200903

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-52040iNCP91..ATM200601-200910

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38064iNCP91..ATM200601-200910

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-52010iNCP91201401

main90301-99124iNCP91..ATM200601-200910

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08301×7iNCP91..ATM200601-200910

*8-1.25PX22-20

35307FBOLT (FOR STATOR SHAFT)

main90148-60027×10iNCP91..ATM200601-200910

35321GEAR, FRONT OIL PUMP DRIVE

main35321-52060iNCP91..ATM200601-200910

T=9.44-9.449,MARK 1

main35321-52070iNCP91..ATM200601-200910

T=9.45-9.459,MARK 2

main35321-52080iNCP91..ATM200903

T=9.46-9.47,MARK 3

main35321-52090iNCP91..ATM200601-200910

T=9.471-9.48,MARK 4

main35321-52100iNCP91..ATM200601-200910

T=9.481-9.49,MARK 5

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-52060iNCP91..ATM200601-200910

T=9.44-9.449,MARK 1

main35322-52070iNCP91..ATM200601-200910

T=9.45-9.459,MARK 2

main35322-52080iNCP91..ATM200601-200910

T=9.46-9.47,MARK 3

main35322-52090iNCP91..ATM200903

T=9.471-9.48,MARK 4

main35322-52100iNCP91..ATM200601-200910

T=9.481-9.49,MARK 5

35370SHAFT ASSY, STATOR

main35370-52070iNCP91..ATM200601-200910

35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)

main90374-26003iNCP91..ATM200601-200910

35617RING, CLUTCH DRUM OIL SEAL

main35613-52010×2iNCP91..ATM200601-200612

main35613-52020×2iNCP91..ATM200612-200910

16 parts on this diagram · 1 diagram in section
