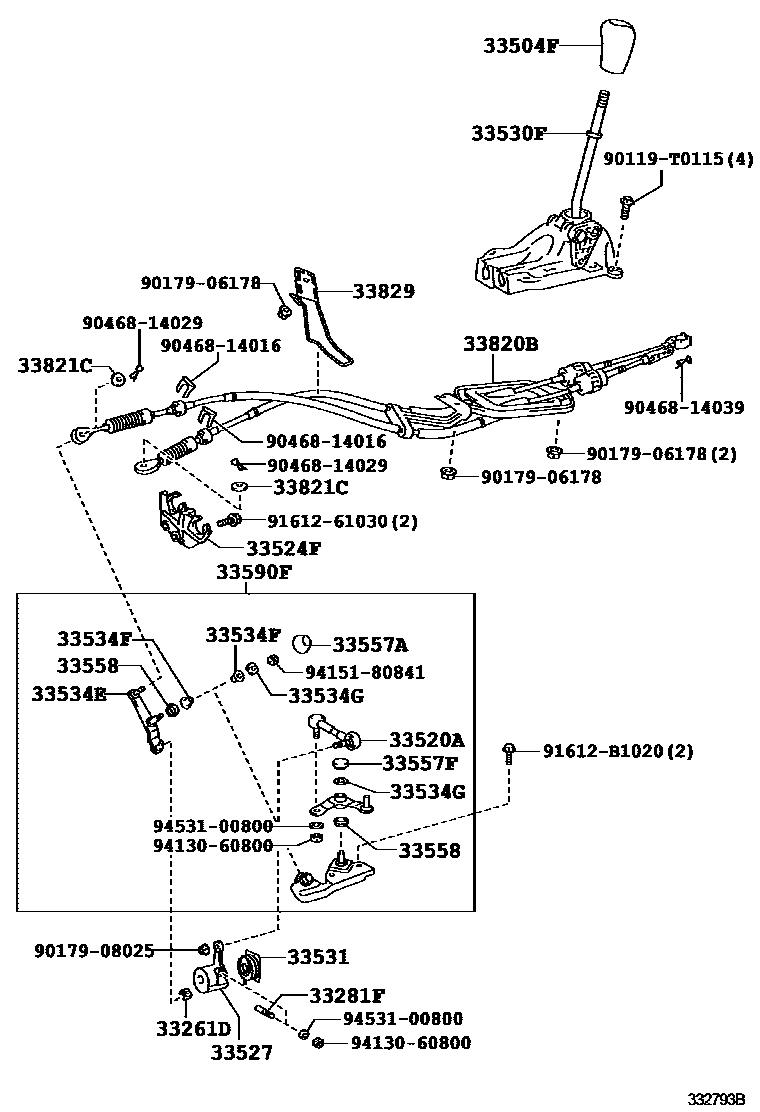

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33261DBUSH (FOR SHIFT & SELECT LEVER)

main33557-33010iNCP91..MTM200601-201307

33281FPIN, LEVER LOCK (FOR FLOOR SHIFT)

main33281-16020iNCP91..MTM200601-201307

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0D080-B0iNCP91..(E,G)..TAIW200611-200910

DK.GRAY,TRIM1#

main33504-0D080-B0iNCP91..(E,G)..TAIW200910-201204

DK.GRAY,TRIM1#,2#

main33504-0D090-B0iNCP91..S..TAIW200611-200910

DK.GRAY,TRIM1#

main33504-0D100-B0iNCP91..MTM200701-201307

DK.GRAY,TRIM1#

main33504-0D170-B0iNCP91..ATM..E..TH200903-201202

E LIMITED PACKAGE(THAILAND),DK.GRAY,TRIM1#

main33504-0D170-B0iNCP91..ATM..PH200903-201307

DK.GRAY,TRIM1#

main33504-0D170-B0iNCP91..ATM..PH201202-201307

E STANDARD PACKAGE(VIETNAM),DK.GRAY,TRIM1#

main33504-0D180-B0iNCP91..RHD..ATM..S200903-201202

DK.GRAY,TRIM1#

main33504-0D210-B0iNCP91..S..TAIW200910-201204

DK.GRAY,TRIM1#

main33504-0D300-B0iNCP91..ATM..PH;NCP91..RHD..ATM..S201202-201307

DK.GRAY,TRIM1#

main33504-0D300-B0iNCP91..S..TAIW201204-201409

DK.GRAY,TRIM1#,2#

main33504-0K010-B0iNCP91..G..TH200903-201307

SINGAPORE SPEC,DK.GRAY,TRIM1#

main33504-0K010-B0iNCP91..ATM..(E,G,J)..(IDN,MA,PH,TH)200601-201307

DK.GRAY,TRIM1#

main33504-0K010-B0iNCP91..(E,G)..TAIW201204-201409

DK.GRAY,TRIM2#

main33504-13010-B0iNCP91..MTM200601-200612

DK.GRAY,TRIM1#

sub33504-13010

main33504-13061-B6iNCP91..MTM..S;NCP91..MTM..PH200903-201307

DK.GRAY,TRIM1#

sub33504-13061

main33504-35060-B0iNCP91..ATM..E..TH200712-200903

E LTD(THAI),DK.GRAY,TRIM1#

sub33504-35060

main33504-35060-B0iNCP91..RHD..S200601-200903

DK.GRAY,TRIM1#

sub33504-35060

33520ASHAFT ASSY, FLOOR SHIFT CONTROL

main33520-52050iNCP91..MTM200601-201307

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-0D070iNCP91..MTM200701-201203

main33524-0D070iNCP91..MTM201203-201307

(L)

main33524-52050iNCP91..MTM200601-200612

main33524-52050iNCP91..MTM201203-201307

(J)

33527LEVER, CONTROL SHIFT (FOR FLOOR SHIFT)

main33527-52011iNCP91..MTM200601-201307

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-0D051iNCP91..MTM200702-201307

main33530-52110iNCP91..MTM200601-200702

sub33530-52210

33531BOOT, DUST (FOR CONTROL SHIFT LEVER)

main33531-17010iNCP91..MTM200601-201307

33534ECRANK, SELECTING BELL, NO.2

main33534-52020iNCP91..MTM200601-201307

33534FBUSH (FOR SELECTING BELLCRANK NO.2)

main90386-12022iNCP91..MTM200601-201307

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028iNCP91..MTM200601-201307

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-32010iNCP91..MTM200601-201307

33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)

main33557-20010iNCP91..MTM200601-201307

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-10030iNCP91..MTM200601-201307

33590FCRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)

main33590-52030iNCP91..MTM200601-201307

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-0D140iNCP91..MTM200601-201307

main33820-0D150iNCP91..ATM..(IDN,MA,PH,TH)200601-201307

main33820-52481iNCP91..TAIW200611-200705

main33820-52620iNCP91..TAIW200706-200910

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main90201-08267iNCP91..MTM200601-201307

OD=28

33829SUPPORT, TRANSMISSION CONTROL CABLE

main33829-52080iNCP91..ATM200601-200602

NO.1

main33829-52091iNCP91..MTM200601-200706

NO.2

sub33829-52092

main33829-52092iNCP91..MTM200707-201307

main33829-52092iNCP91..ATM200707-200910

NO.2

main33829-52111iNCP91..ATM200602-200910

NO.1

90119T0115

main90119-T0115

9017906178

main90179-06178

9017908025

main90179-08025

9046814016

main90468-14016

9046814029

main90468-14029

9046814039

main90468-14039

9161261030

main91612-61030

91612B1020

main91612-B1020

9413060800

main94130-60800

9415180841

main94151-80841

9453100800

main94531-00800

29 parts on this diagram · 4 diagrams in section
