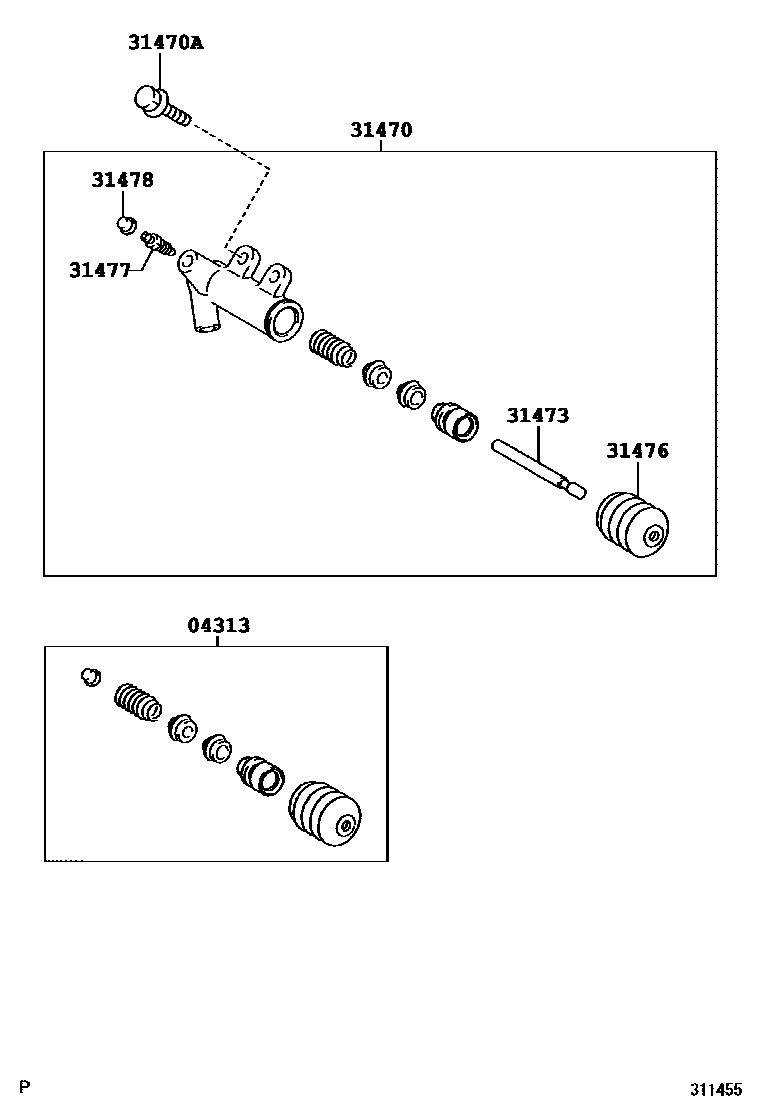

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-52020iNCP91..MTM200601-201307

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-52120iNCP91..MTM200601-200705

sub31470-52121

main31470-52121iNCP91..MTM200705-201307

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iNCP91..MTM200601-201307

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iNCP91..MTM200601-201307

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iNCP91..MTM200601-201307

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iNCP91..MTM200601-201307

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iNCP91..MTM200601-201307

7 parts on this diagram · 1 diagram in section
