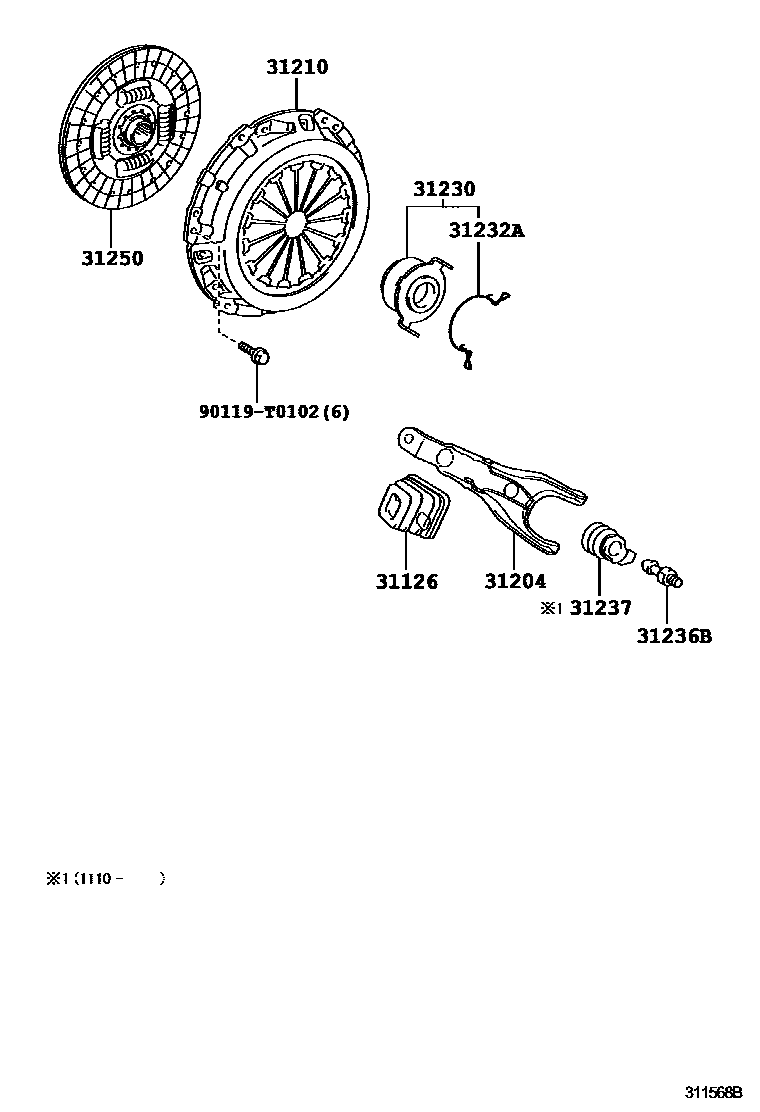

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iNCP91..MTM200601-201307

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-52010iNCP91..MTM200601-201307

31210COVER ASSY, CLUTCH

main31210-52050iNCP91..MTM200601-200602

sub31210-52051

main31210-52051iNCP91..MTM200603-200702

sub31210-52052

main31210-52052iNCP91..MTM200703-201203

sub31210-52053

main31210-52053iNCP91..MTM201204-201307

31230BEARING ASSY, CLUTCH RELEASE

main31230-12180iNCP91..MTM200601-200812

sub31230-12181

main31230-12181iNCP91..MTM200812-201307

31232ACLIP, RELEASE BEARING HUB

main31232-12080iNCP91..MTM200601-201307

31236BSUPPORT, RELEASE FORK

main31236-12020iNCP91..MTM200601-201307

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-52010iNCP91..MTM201110-201307

31250DISC ASSY, CLUTCH

main31250-52050iNCP91..MTM200601-201307

90119T0102

main90119-T0102

9 parts on this diagram · 1 diagram in section
