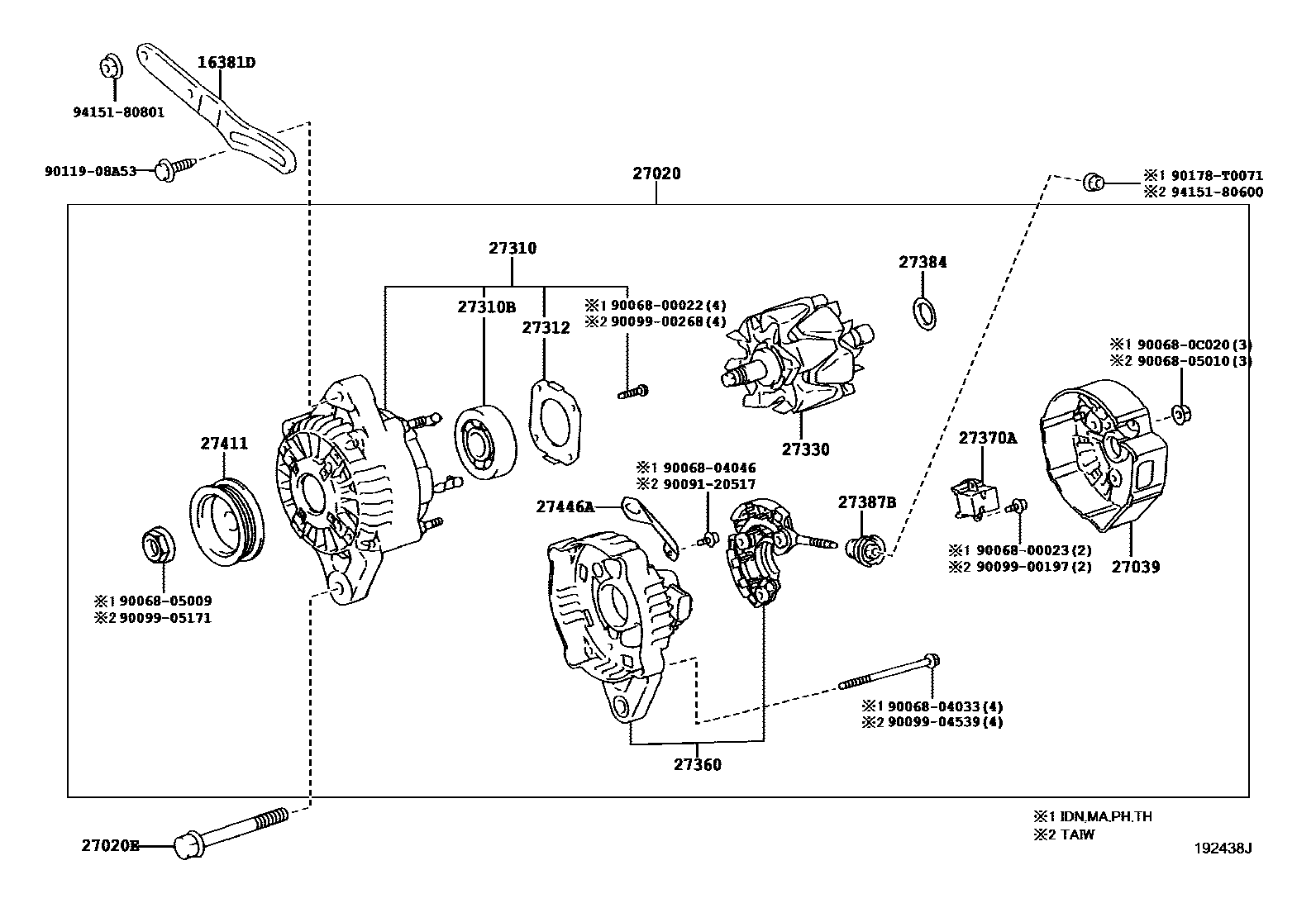

ALTERNATOR

16381DBAR, FAN BELT ADJUSTING

main16381-0M010i1NZFE..NCP91..IDN,MA,PH,TH200903-201307

(L)

main16381-0M020i1NZFE..NCP91..TAIW200910

(L)

main16381-21030i1NZFE..NCP91200903

(J)

27020ALTERNATOR ASSY

main27060-0M040i1NZFE..NCP91..IDN,MA,PH,TH200903-201307

12V 80A

main27060-0M050i1NZFE..NCP91..TAIW200611-200910

12V 80A

27020EBOLT(FOR ALTERNATOR)

main90105-10075i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

27039COVER, ALTERNATOR REAR END

main27039-0C020i1NZFE..NCP91..MTM..(E,J);1NZFE..NCP91..ATM..(IDN,MA,PH,TH)200708-200910

main27039-0H080i1NZFE..NCP91..TAIW200611-200901

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0M040i1NZFE..NCP91..IDN,MA,PH,TH200903-201307

main27310-0M050i1NZFE..NCP91..TAIW200611-200910

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10014i1NZFE..NCP91..IDN,MA,PH,TH200601-200708

main90068-10029i1NZFE..NCP91..TAIW200903

main90068-10036i1NZFE..NCP91..IDN,MA,PH,TH201002-201307

27312PLATE, RETAINER

main27312-0C020i1NZFE..NCP91200903

main27312-0H080i1NZFE..NCP91..TAIW200611-200901

27330ROTOR ASSY, ALTERNATOR

main27330-0H080i1NZFE..NCP91..TAIW200901-200910

main27330-0M040i1NZFE..NCP91..IDN,MA,PH,TH200903-201307

27360COIL ASSY, ALTERNATOR

main27360-0M040i1NZFE..NCP91..IDN,MA,PH,TH200601-200903

main27360-0M050i1NZFE..NCP91..TAIW200910

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-0M040i1NZFE..NCP91..IDN,MA,PH,TH200601-200903

main27370-31220i1NZFE..NCP91..TAIW200910

27384WASHER

main27384-0C020i1NZFE..NCP91..IDN,MA,PH,TH200708-200903

main27384-0H080i1NZFE..NCP91..TAIW200611-200901

main27384-16380i1NZFE..NCP91..TAIW200910

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-0C020i1NZFE..NCP91..MTM..(E,J);1NZFE..NCP91..ATM..(IDN,MA,PH,TH)200708-200910

main27387-0H080i1NZFE..NCP91..TAIW200611-200901

27411PULLEY, ALTERNATOR

main27411-0M040i1NZFE..NCP91..IDN,MA,PH,TH200903-201307

main27411-0M050i1NZFE..NCP91..TAIW200611-200910

27446ACLAMP

main27446-0M040i1NZFE..NCP91..IDN,MA,PH,TH200601-200903

main27446-0M050i1NZFE..NCP91..TAIW200611-200910

9006800022

main90068-00022

9006800023

main90068-00023

9006804033

main90068-04033

9006804046

main90068-04046

9006805009

main90068-05009

9006805010

main90068-05010

900680C020

main90068-0C020

9009120517

main90091-20517

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905171

main90099-05171

9011908A53

main90119-08A53

90178T0071

main90178-T0071

9415180600

main94151-80600

9415180801

main94151-80801

30 parts on this diagram · 1 diagram in section
