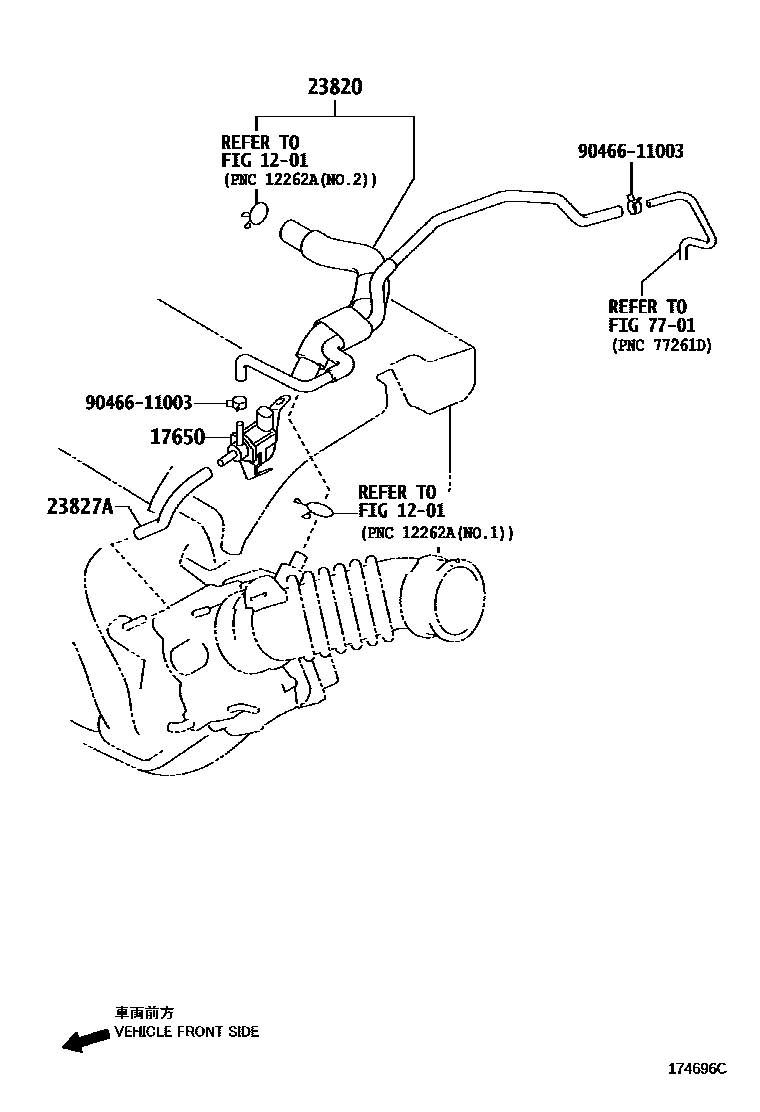

VACUUM PIPING

1201

17650VALVE ASSY, VACUUM SWITCHING

main25860-21070i1NZFE..NCP91200601-200910

23820HOSE ASSY, FUEL VAPOR FEED

main23820-0M010i1NZFE..NCP91..RHD200601-200612

(L)

main23820-0M011i1NZFE..NCP91..IDN,MA,PH,TH200903-201307

main23820-0M011i1NZFE..NCP91..IDN,MA,PH,TH200701-200903

(L)

main23820-0M020i1NZFE..NCP91..TAIW200611-200910

(L)

main23820-0M020i1NZFE..NCP91..TAIW200910

main23820-21100i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

(J)

sub23820-21101

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-0M040i1NZFE..NCP91..TAIW200910

main23827-0M040i1NZFE..NCP91..TAIW200611-200910

(L)

main95328-07017i1NZFE..NCP91..TAIW200611-200910

(J)

main95328-07017i1NZFE..NCP91..IDN,MA,PH,TH200601-201307

7701

9046611003

main90466-11003

6 parts on this diagram · 1 diagram in section
