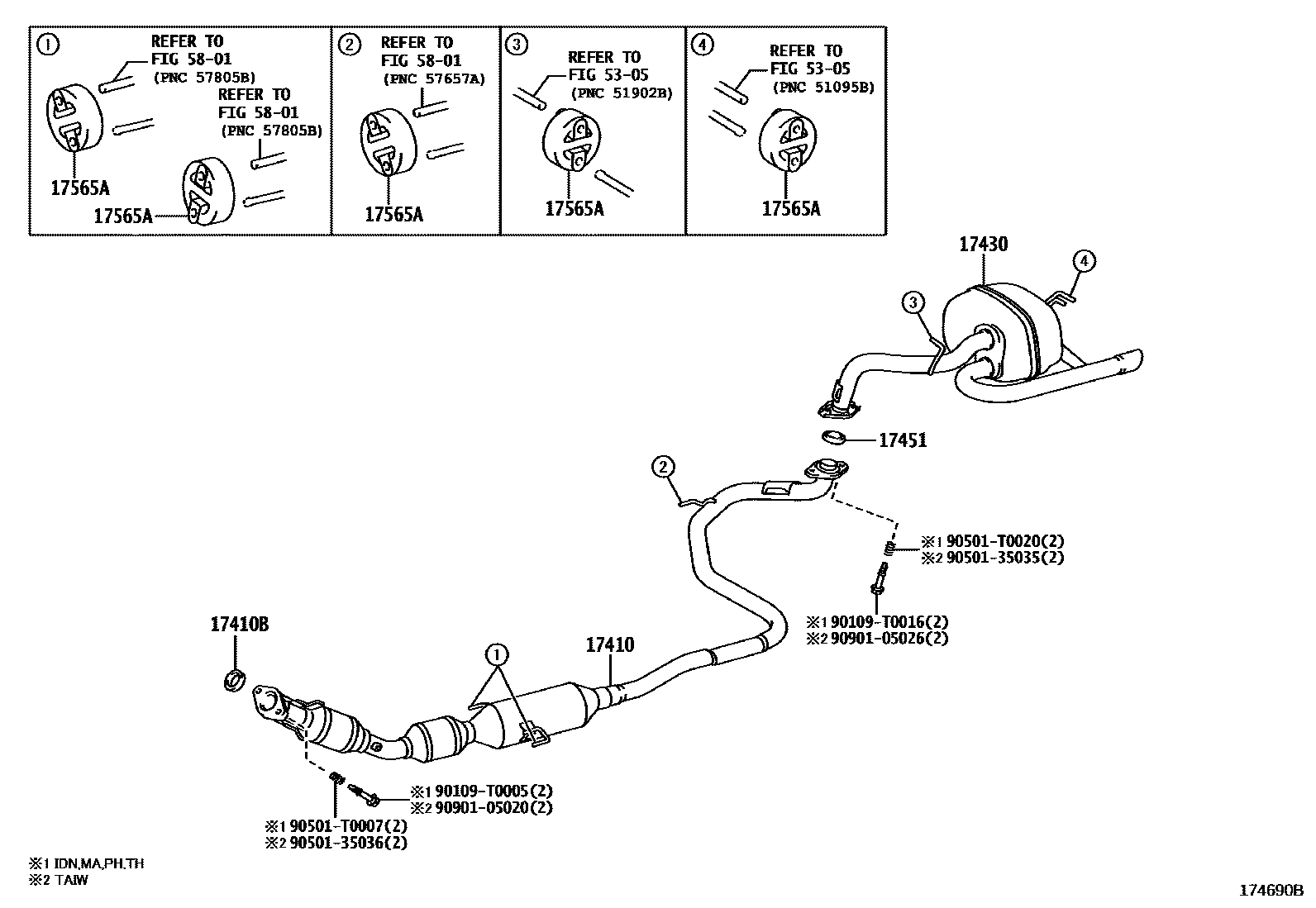

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-0M040i1NZFE..NCP91..IDN,MA,PH,TH200601-201307

main17410-0M050i1NZFE..NCP91..TAIW200611-201309

main17410-0M290i1NZFE..NCP91201309

17410BGASKET, EXHAUST PIPE

main17451-0M020i1NZFE..NCP91..IDN,MA,PH,TH200601-201307

main17451-21070i1NZFE..NCP91..TAIW200611-200910

17430PIPE ASSY, EXHAUST, TAIL

main17430-0M030i1NZFE..NCP91200601-200609

sub17430-0M031

main17430-0M031i1NZFE..NCP91..IDN,MA,PH,TH200610-200910

sub17430-0M032

main17430-0M032i1NZFE..NCP91..J..IDN;1NZFE..NCP91..(E,G,S)..(IDN,MA,PH,TH)200911-201307

main17430-0M050i1NZFE..NCP91..TAIW200611-200911

sub17430-0M051

main17430-0M051i1NZFE..NCP91..S..TAIW200911-201204

main17430-0M130i1NZFE..NCP91..J..IDN;1NZFE..NCP91..(E,G,S)..(IDN,MA,PH,TH)201202-201307

J LIMITED PACKAGE(THAILAND)

main17430-21551i1NZFE..NCP91..S..TAIW201204

17451GASKET, EXHAUST PIPE

main17451-0M030i1NZFE..NCP91..J200601-200801

sub17451-0M031

main17451-0M031i1NZFE..NCP91..IDN,MA,PH,TH200801-201105

sub17451-0M032

main17451-0M032i1NZFE..NCP91..IDN,MA,PH,TH201106-201307

main17451-23040i1NZFE..NCP91..TAIW200611-200707

sub17451-23041

main17451-23041i1NZFE..NCP91..TAIW200708-201009

sub17451-23042

main17451-23042i1NZFE..NCP91..TAIW201010

sub17451-23043

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0M020i1NZFE..NCP91..IDN,MA,PH,TH200601-201307

main17565-40010i1NZFE..NCP91..TAIW200611-201011

sub17565-47010

main17565-47010i1NZFE..NCP91..TAIW201012

5305

5801

90109T0005

main90109-T0005

90109T0016

main90109-T0016

9050135035

main90501-35035

9050135036

main90501-35036

90501T0007

main90501-T0007

90501T0020

main90501-T0020

9090105020

main90901-05020

9090105026

main90901-05026

15 parts on this diagram · 1 diagram in section
