MANIFOLD

1603

17111MANIFOLD, INTAKE

main17101-0M030i1NZFE..NCP91200903

(L)

main17101-21080i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

(J)

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i1NZFE..NCP91200903

(J)

main90126-T0003×2i1NZFE..NCP91200903-201307

(L)

17141MANIFOLD, EXHAUST

main17141-0M020i1NZFE..NCP91..TAIW200903-201303

(L)

main17141-21130i1NZFE..NCP91..TAIW200903-201303

(J)

main17141-21210i1NZFE..NCP91..TAIW201303

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-08037×2i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-0M020i1NZFE..NCP91201211-201307

(L)

main17167-21110i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0M010i1NZFE..NCP91..IDN,MA,PH,TH201210-201307

main17173-21020i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-21020i1NZFE..NCP91..ATM;1NZFE..NCP91..MTM..(E,J)200601-200910

main17177-21030i1NZFE..NCP91201207

2211

25591BRACKET, MANIFOLD SUPPORT

main25591-0M020i1NZFE..NCP91..IDN,MA,PH,TH200601-200903

(L)

main25591-0M030i1NZFE..NCP91..TAIW200611-200910

main25591-21060i1NZFE..NCP91..IDN,MA,PH,TH200601-200903

(J)

90119T0010

main90119-T0010

90119T0164

main90119-T0164

9017908101

main90179-08101

91631B0625

main91631-B0625

9164180835

main91641-80835

91641K0822

main91641-K0822

9167281025

main91672-81025

9415080801

main94150-80801

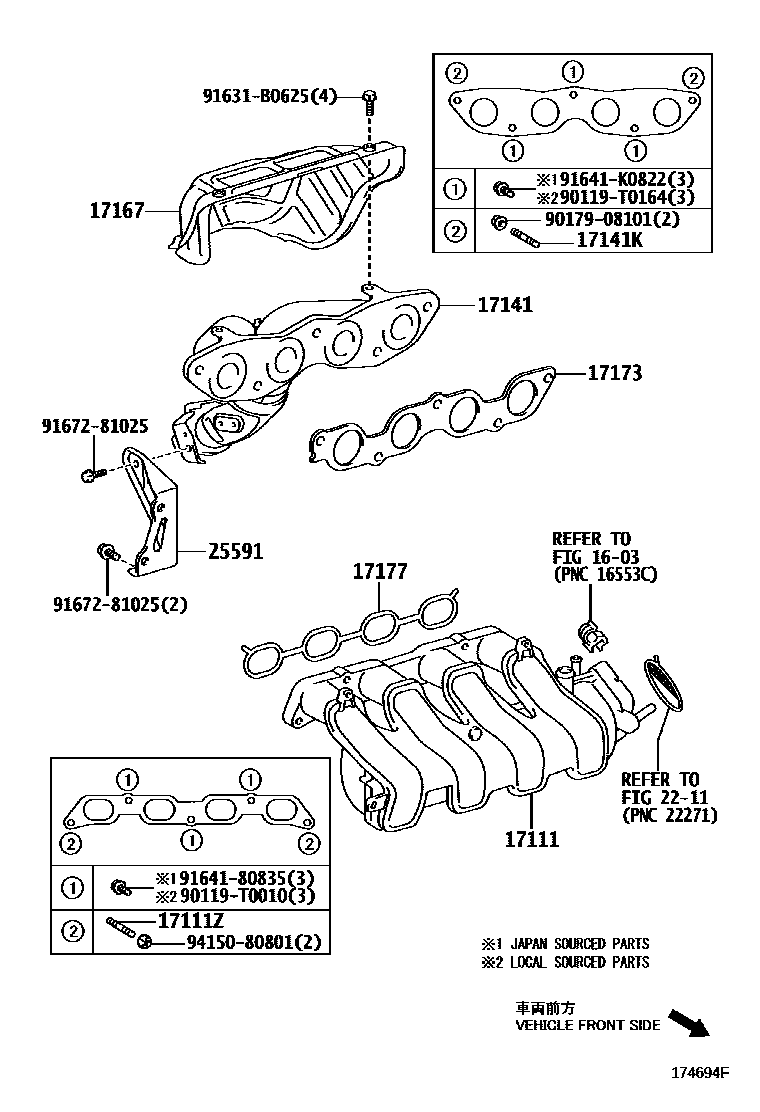

18 parts on this diagram · 1 diagram in section
