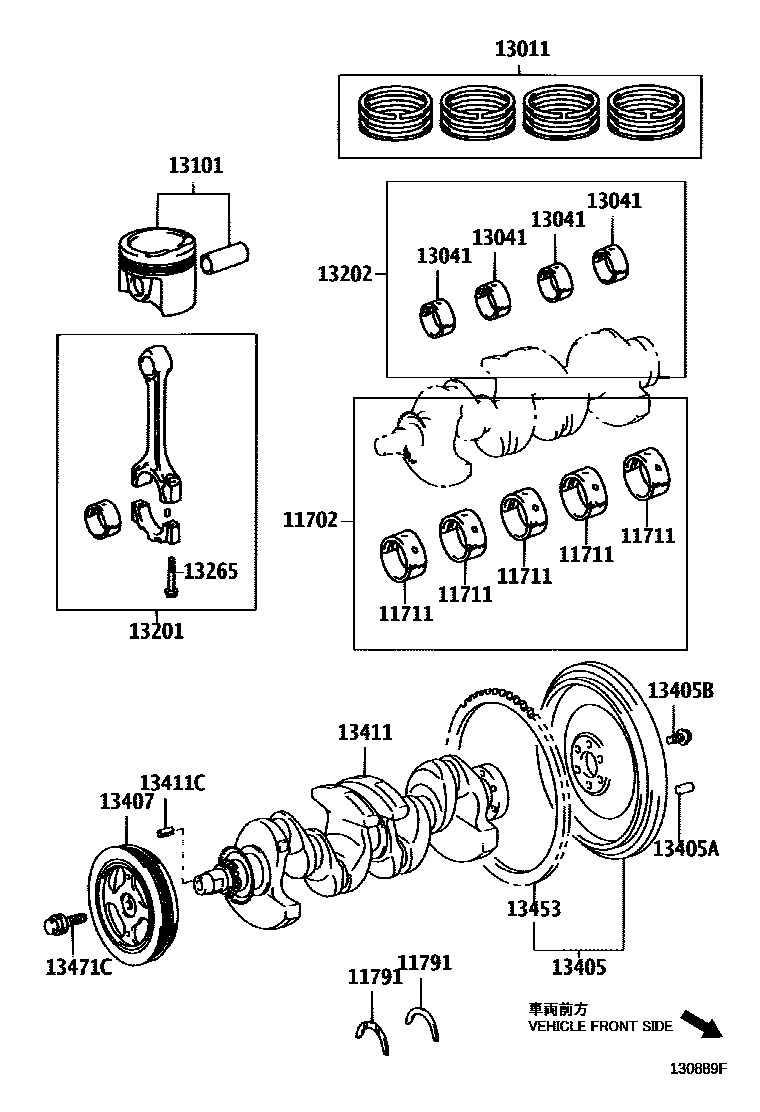

CRANKSHAFT & PISTON
11702BEARING SET, CRANKSHAFT
U/S 0.25
11711BEARING, CRANKSHAFT
MARK2,(L):REFER R/M
sub11701-0M030
MARK4,(L):REFER R/M
sub11701-0M030
MARK 1,(L):REFER R/M
MARK 2,(L):REFER R/M
MARK 3,(L):REFER R/M
MARK 4,(L):REFER R/M
MARK 1,(J):REFER R/M
MARK 2,(J):REFER R/M
MARK 3,(J):REFER R/M
MARK 4,(J):REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,(L)
STD,(J)
STD,(J)
O/S 0.125
O/S 0.25
13011RING SET, PISTON
STD
STD,(L)
STD
13041BEARING, CONNECTING ROD
MARK1,(L):REFER R/M
sub13041-0M012
MARK3,(L):REFER R/M
sub13041-0M012
MARK 1,(L):REFER R/M
MARK 2,(L):REFER R/M
MARK 3,(L):REFER R/M
MARK3,(J):REFER R/M
MARK 1,(J):REFER R/M
MARK 2,(J):REFER R/M
MARK 3,(J):REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD,(L)
STD
STD
13201ROD SUB-ASSY, CONNECTING
13202BEARING SET, CONNECTING ROD
U/S 0.25
U/S 0.25
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
(L)
(J)
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
L=18,OD=8,(J)
L=18,OD=8,(L)
13405BBOLT, FLYWHEEL SETTING
(J)
(L)
13407DAMPER SUB-ASSY, CRANKSHAFT
13411CRANKSHAFT
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
13453GEAR, FLYWHEEL RING
(L)
(J)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
17 parts on this diagram · 1 diagram in section
