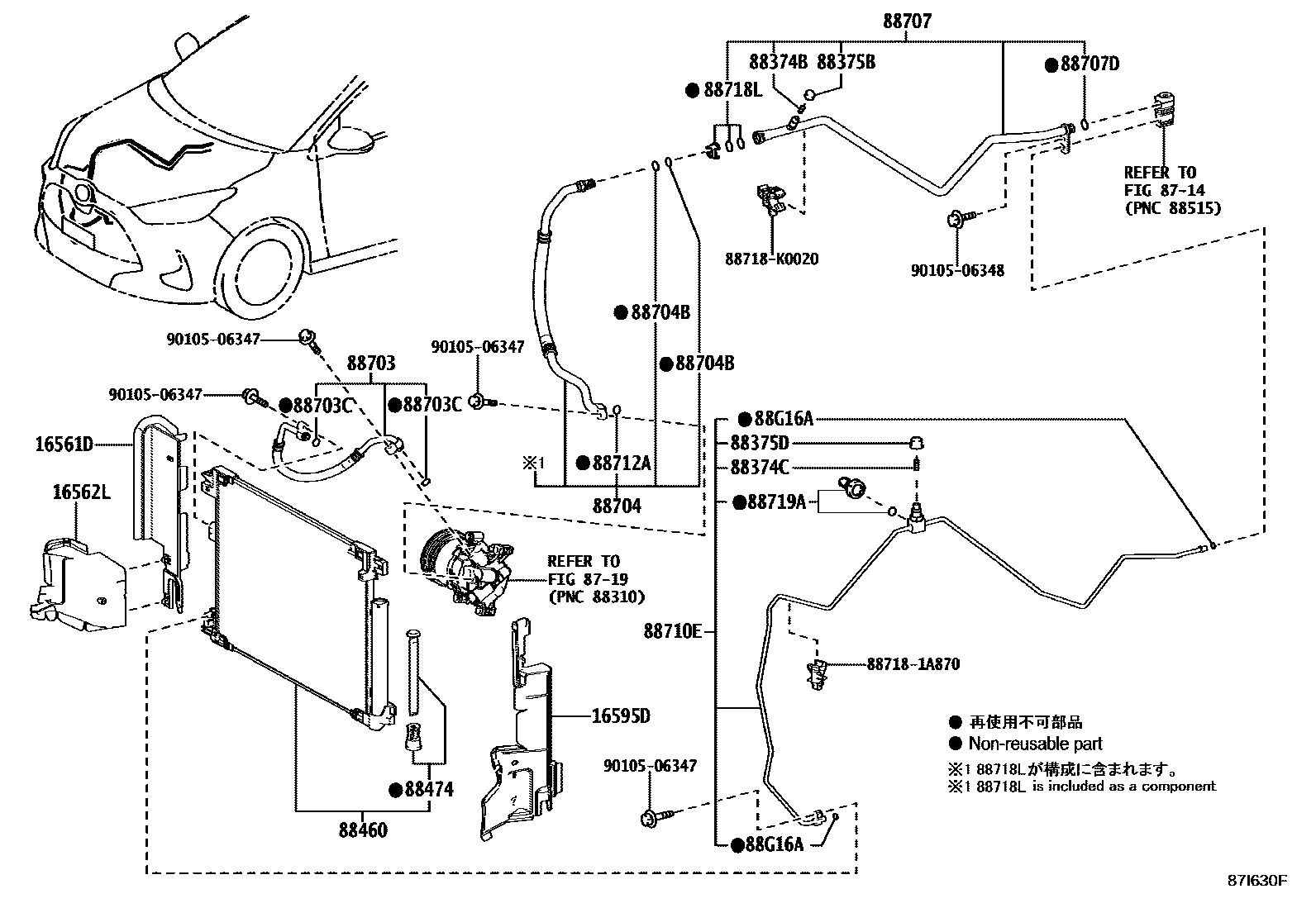

HEATING & AIR CONDITIONING - COOLER PIPING
16561DSEAL, RADIATOR TO SUPPORT, NO.1
16562LSEAL, RADIATOR TO SUPPORT, NO.2
16595DGUIDE, RADIATOR AIR, NO.1 LH
8714
8719
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88460CONDENSER ASSY, COOLER
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
88707DRING, O(FOR SUCTION TUBE)
ID=13.4,OD=18.2
88712ARING, O(FOR COOLER REFRIGERANT SUCTION HOSE)
88718LCLAMP, PIPING
88719ASENSOR, AIR CONDITIONER PRESSURE
88G16ARING, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE)
ID=6.7,OD=10.3
887181A870PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-1A870
88718K0020PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-K0020
9010506347
main90105-06347
9010506348
main90105-06348
26 parts on this diagram · 2 diagrams in section
