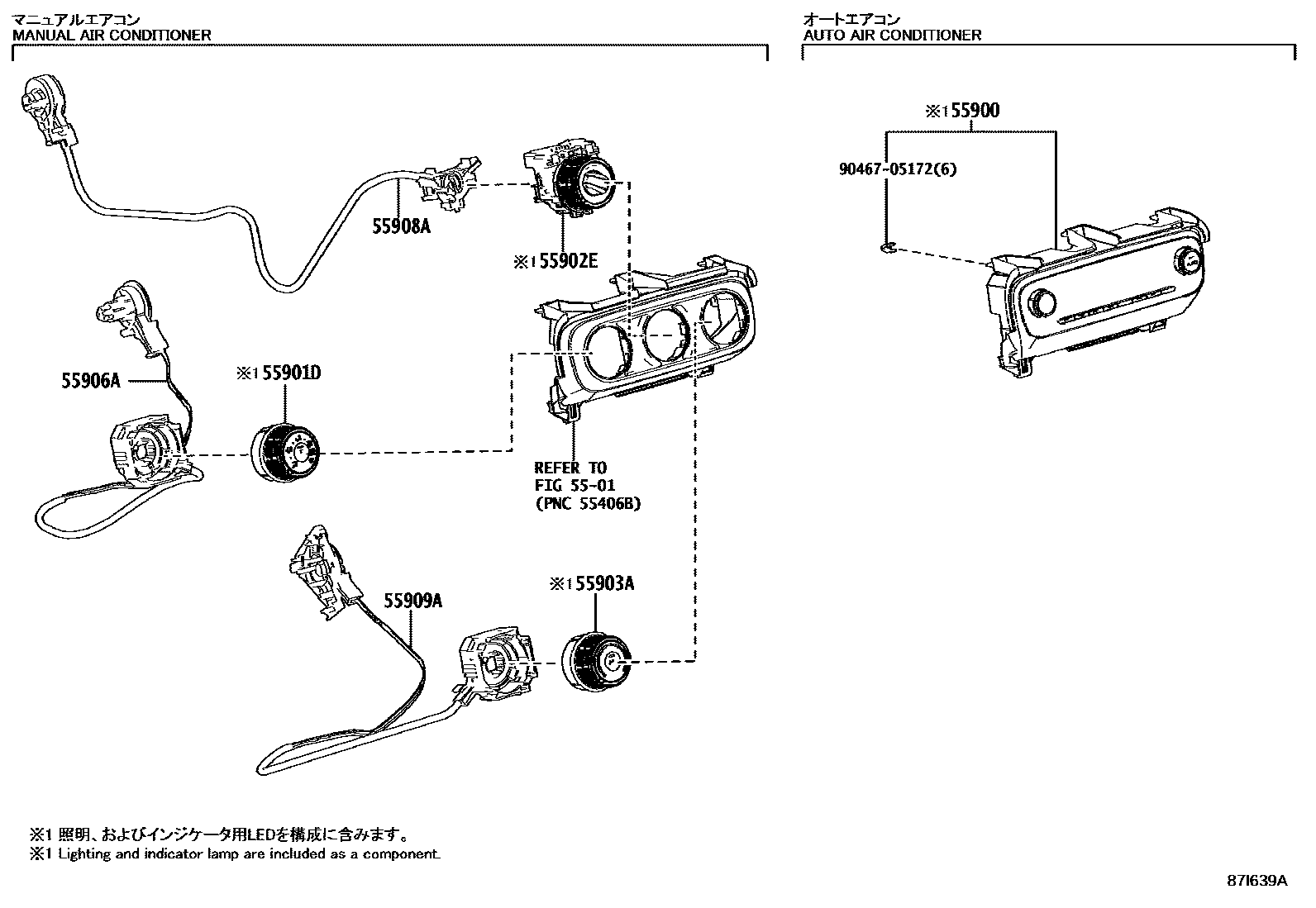

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1SENSOR

5501

55900CONTROL ASSY, AIR CONDITIONER

main55900-52C00iMXPH10202401

main55900-K0240iMXPH10202005-202105

MID PACKAGE&FRONT AIR CONDITIONER-AUTO

main55900-K0241iMXPH10202105-202401

MID PACKAGE&FRONT AIR CONDITIONER-AUTO

55901DCONTROL SUB-ASSY, HEATER, NO.1

main55901-52430iMXPA10202401-202501

main55901-K0030iMXPA10202005-202401

S PACKAGE&FRONT AIR CONDITIONER-AUTO

main55901-K0030iMXPA10..CVT202005-202401

MID PACKAGE&FRONT AIR CONDITIONER-AUTO

55902ECONTROL SUB-ASSY, HEATER, NO.2

main55902-52360iMXPA10202401-202501

main55902-K0030iMXPA10202005-202401

MID PACKAGE&FRONT AIR CONDITIONER-AUTO

main55902-K0030iMXPA10202005-202401

S PACKAGE&FRONT AIR CONDITIONER-AUTO

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-12380iMXPA10202401-202501

main55903-12390iMXPA10..CVT202005-202401

MID PACKAGE&FRONT AIR CONDITIONER-AUTO

main55903-12390iMXPA10..CVT202005-202401

S PACKAGE&FRONT AIR CONDITIONER-AUTO

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-K0011iMXPA10..CVT202005-202401

S PACKAGE&FRONT AIR CONDITIONER-AUTO

main55906-K0011iMXPA10202005-202401

MID PACKAGE&FRONT AIR CONDITIONER-AUTO

main55906-K0011iMXPA10202401-202501

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-K0010iMXPA10202005-202401

MID PACKAGE&FRONT AIR CONDITIONER-AUTO

main55908-K0010iMXPA10202005-202401

S PACKAGE&FRONT AIR CONDITIONER-AUTO

main55908-K0010iMXPA10202401-202501

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-K0011iMXPA10202005-202401

S PACKAGE&FRONT AIR CONDITIONER-AUTO

main55909-K0011iMXPA10202005-202401

MID PACKAGE&FRONT AIR CONDITIONER-AUTO

main55909-K0011iMXPA10202401-202501

9046705172

main90467-05172

9 parts on this diagram · 3 diagrams in section
