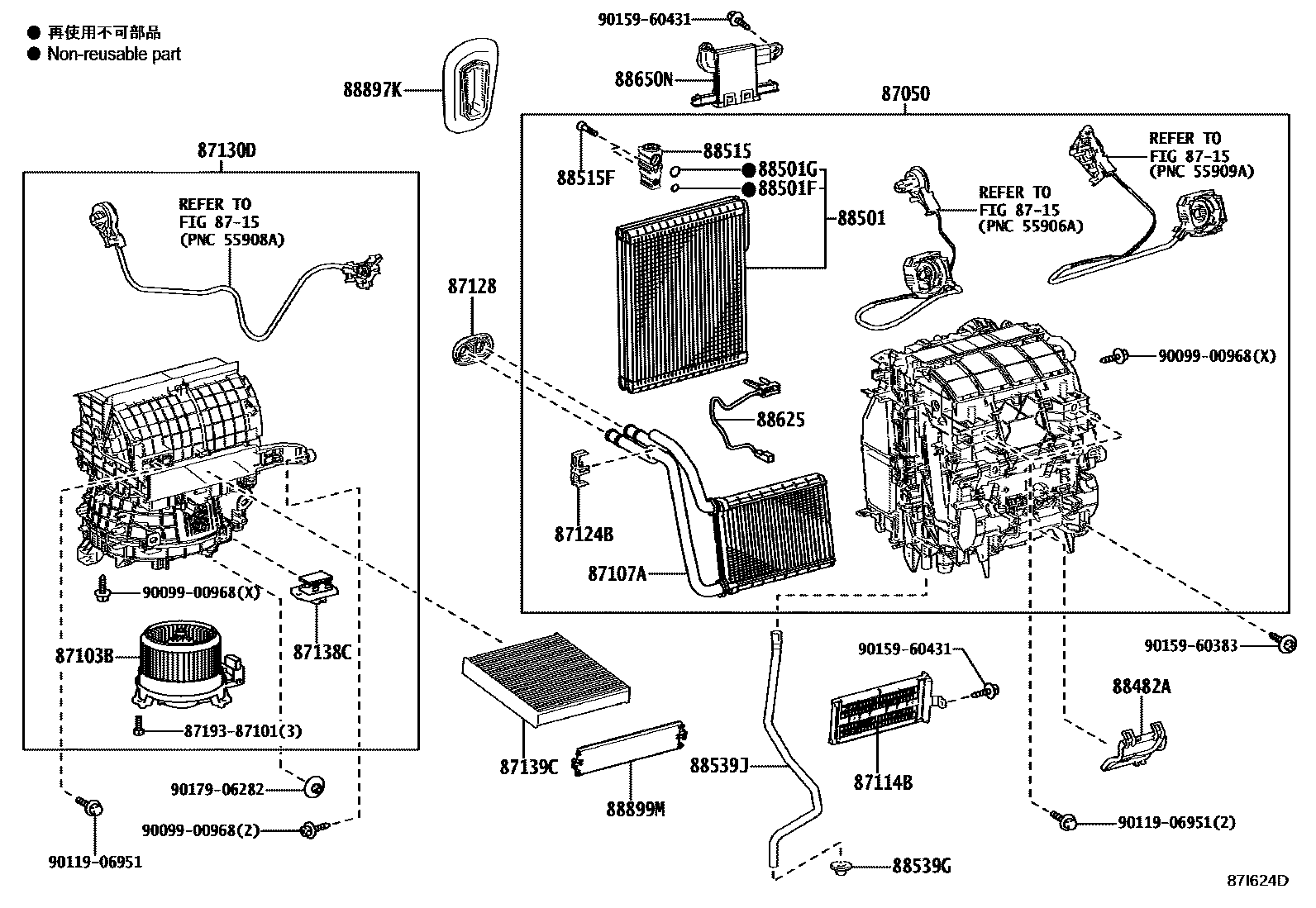

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1AUTO AIR CONDITIONER 0003 1AUTO AIR CONDITIONER

87050RADIATOR ASSY, AIR CONDITIONER

main87050-52540iMXPH10202005-202012

main87050-52780iMXPH10202012-202401

main87050-52770supersedes 87050-52680iMXPA10..6F202012-202207

S PACKAGE

main87050-K0450iMXPA10202005-202012

S PACKAGE&FRONT AIR CONDITIONER-AUTO

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-52170iMXPH10202012-202112

S PACKAGE

main87103-52270supersedes 87103-K0090iMXPH10202201-202302

S PACKAGE

main87103-52290supersedes 87103-K0090iMXPH10202302-202303

S PACKAGE

main87103-K0080iMXPH10202005-202012

S PACKAGE&FRONT AIR CONDITIONER-AUTO

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-K0030iMXPA10..6F202005-202207

87114BCOVER, HEATER

main87114-K0060iMXPA10202401-202501

87124BCLAMP, HEATER

main87124-33070iMXPA10,MXPH10..CVT202005-202401

87128GROMMET, HEATER

main87128-28010iMXPA10,MXPH10..CVT202005-202401

87130DBLOWER ASSY

main87130-52250iMXPH10202012-202112

S PACKAGE

main87130-52310supersedes 87130-K0080iMXPH10202201-202303

S PACKAGE

main87130-K0100iMXPH10202005-202012

S PACKAGE&FRONT AIR CONDITIONER-AUTO

87138CRESISTOR, BLOWER

main87138-52030iMXPA10202401-202501

87139CFILTER, CLEAN AIR

main87139-28020iMXPA10..6F202005-202207

POLLEN FILTER

8715

88482ACOVER

main87114-K0070iMXPA10,MXPH10..CVT202005-202401

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-52150iMXPA10..6F202005-202207

main88501-52160iMXPH10202005-202401

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iMXPA10202401-202501

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iMXPA10..6F202005-202207

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-48110iMXPA10..6F202005-202207

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2iMXPA10..6F202005-202207

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-47010iMXPA10..6F202005-202207

88539JHOSE, DRAIN COOLER

main88539-K0030iMXPA10..6F202005-202207

88625THERMISTOR, COOLER, NO.1

main88620-28050iMXPA10..6F202005-202207

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-52E90supersedes 88650-K0040iMXPH10202012-202401

S PACKAGE

main88650-52F60supersedes 88650-K0040iMXPH10202401-202503

main88650-K0110iMXPH10202005-202011

S PACKAGE&FRONT AIR CONDITIONER-AUTO

88897KGROMMET, (FOR COOLER PIPE)

main88899-K0020iMXPA10,MXPH10..CVT202005-202401

88899MPLATE, COVER(FOR AIR FILTER)

main88899-47120iMXPA10..6F202005-202207

8719387101

main87193-87101

9009900968

main90099-00968

9011906951

main90119-06951

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

28 parts on this diagram · 3 diagrams in section
